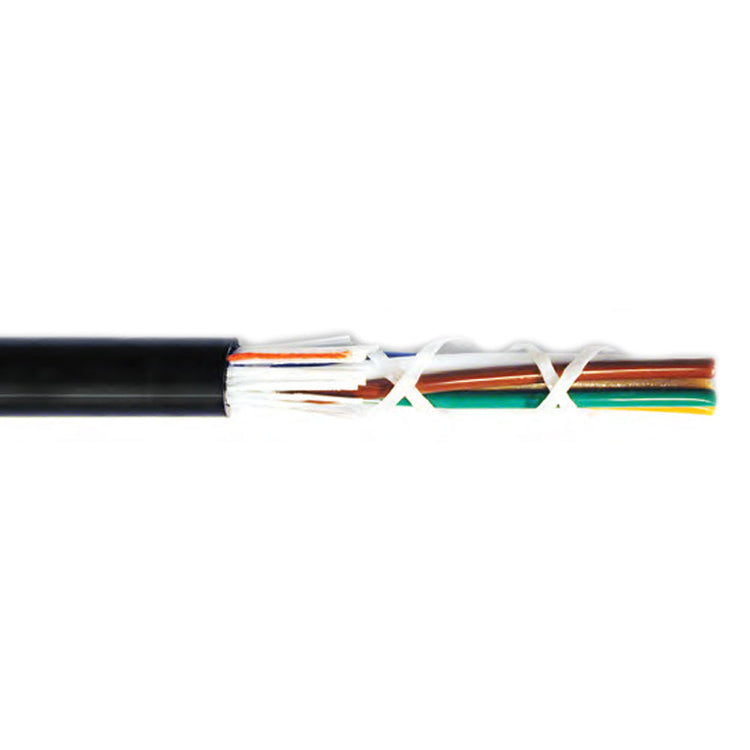

This bulk loose tube fiber cable is outdoor rated. It is OSP rated for outside plant environments. Its loose tube design offers reliable transmission performance over a broad temperature range. Optical fibers and water-blocking elements are placed inside gel-free buffer tubes. This cable provides high fiber density, can be used for multiple network applications, reduces cable installation time, reduces number of tools required, speeds fiber access/cleanup and dielectric design eliminates grounding issues.
| Physical Characteristics |
| Color |
Black |
| Fiber Optic Type |
OSP Loose Tube Singlemode Outdoor Duct/Lashed Aerial Cable |
| Glass Fiber |
G657A2 |
| Color Coating Fiber |
Dimension: 250µm±15µm
Color: Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Purple, Pink, Aqua |
| Jacket |
UV Rated
Material: PE
Outer Jacket Dimension: 10.2mm±0.5mm |
| Loose Tube |
Dimension: 2.0mm±0.1mm
Material: PBT
Color: Blue |
| Filler |
Dimension: 2.0mm±0.1mm
Material: PP
Color: Natural |
| Central Strength Member |
Diameter: 2.0mm
Material: FRP |
| Strength Member Material |
Glass Yarn |
| Fiber Count |
48-Strand |
| Tension(Long Term) |
890 N |
| Tension(Short Term) |
2700 N |
| Crush (Long Term) |
300 N/10cm |
| Crush (Short Term) |
1000 N/10cm |
| Min Bending Radius(Dynamic) |
20D mm |
| Min Bending Radius(Static) |
10D mm |
| Operating Temperature |
-40℃ ~ +70℃ |
| Storage Temperature |
-40℃ ~ +70℃ |
| Installation Temperature |
-30℃ ~ +70℃ |
| UV Rated |
Compliant |
|
Fiber Parameters
|
| Mode Field Diameter |
1310nm: 8.6±0.4μm
1550nm: 9.6±0.5μm
|
| Cladding Diameter |
125.0±0.7μm |
| Cladding Non-Circularity |
≤0.7% |
| Core-Cladding Concentricity Error |
≤0.5μm |
| Coating Diameter |
245±5μm |
| Coating Non-Circularity |
≤6.0% |
| Cladding-Coating Concentricity Error |
<12.0μm |
| Cable Cutoff Wavelength |
λcc≤1260nm |
| Attenuation(max.) |
1310nm: ≤0.5 dB/km
1550nm: ≤0.4 dB/km
|
| Macro-Bending Loss |
1turn×7.5mm radius @1550nm: ≤0.5 dB
1turn×7.5mm radius @1625nm: ≤1.0 dB
|
