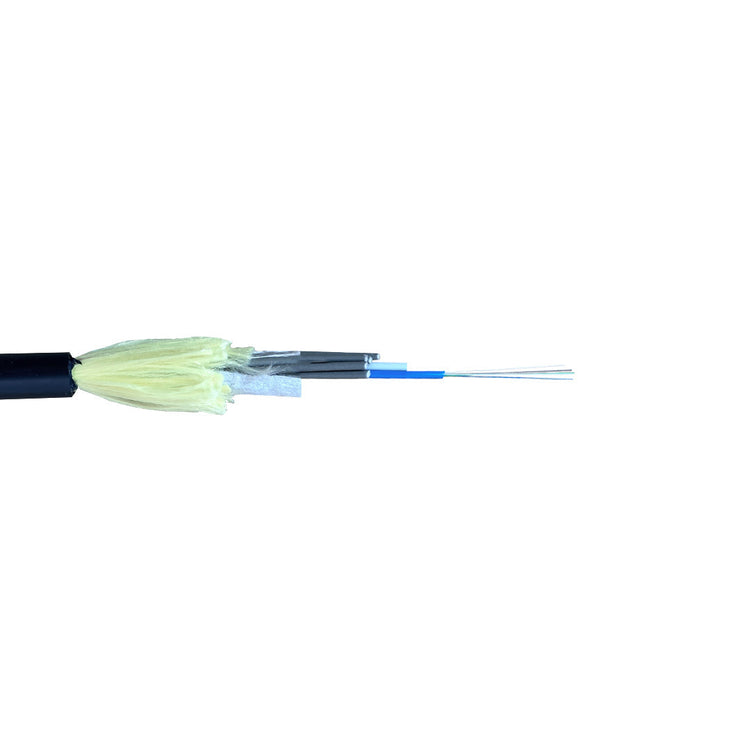

This bulk loose tube fiber cable is outdoor rated. It is OSP rated for outside plant environments. Its loose tube design offers reliable transmission performance over a broad temperature range. Optical fibers and water-blocking elements are placed inside gel-free buffer tubes. This cable provides high fiber density, can be used for multiple network applications, reduces cable installation time, reduces number of tools required, improves compressive strength and rodent protection, and speeds fiber access/cleanup.
Physical Characteristics |
Color |
Black |
Fiber Optic Type |
OM3 Loose Tube Outdoor Duct/Lashed Aerial Cable
|
Glass FiberĀ
|
Corning ClearCurve |
Fiber Count |
6-Strand, 12-Strand |
Color Coating Fiber |
Dimension: 250ĀµmĀ±15Āµm Color: Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Purple, Pink, Aqua |
Jacket |
UV Rated to 720 Hours Material: PE Outer Jacket Dimension: 11.7mmĀ±0.5mm |
Loose Tube |
Dimension: 2.0mmĀ±0.10mm Material: PBT Color: Blue, Orange |
Filler |
Dimension:2.0mmĀ±0.10mm Material: PP Color: Natural |
Central Strength Member |
Diameter: 2.0mm Material: FRP |
Strength Member Material |
Glass Yarn |
Tension(Long Term) |
890 N |
Tension(Short Term) |
2700 N |
Crush (Long Term) |
1000 N/10cm |
Crush (Short Term) |
3000 N/10cm |
Min Bending Radius(Dynamic) |
20D mm |
Min Bending Radius(Static) |
15D mm |
Operating Temperature |
-40ā ~ +70ā |
Storage Temperature |
-40ā ~ +70ā |
Installation Temperature |
-30ā ~ +70ā
|
