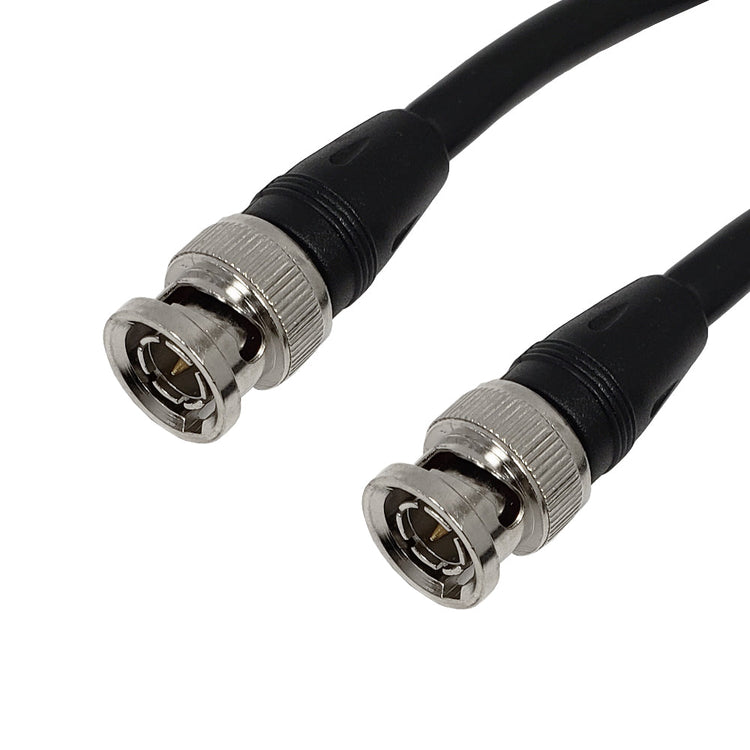

This cable consists of RG59 composite BNC male connectors on both ends. It is typically used to connect a video cameras BNC composite output to a monitors BNC composite input.
|
| Used in Common InstancesThis cable can be used to connect a video camera to a DVR or monitor. |
| Physical Characteristics | |||||
|---|---|---|---|---|---|
| Color | Black | ||||
| Connector Plating | Nickel | ||||
| Cable Type | RG59 75 Ohm | ||||
| Wire Gauge | 22AWG Stranded | ||||
| Jacket Material | PVC | ||||
| Strain Relief | Molded PVC | ||||
| Jacket Rating | CL3/FT4 [Riser Rated] | ||||
| Connector(s) | |||||
| Connector A | 1 - BNC Male | ||||
| Connector B | 1 - BNC Male | ||||
| Environmental | |||||
| RoHS | Yes | ||||
| Packaging Information | |||||
| Package Quantity | 1 - Cable | ||||
| Warranty Information | |||||
| Warranty | Limited Lifetime | ||||
| 3ft | 6ft | 10ft | 15ft | 25ft | 50ft |
|---|---|---|---|---|---|
| 0.10 lbs | 0.20 lbs | 0.44 lbs | 0.52 lbs | 0.65 lbs | 1.24 lbs |
| SKU | Options | Weight |
| BNC1M-03 | 3ft | 0.19 lb |
| BNC1M-06 | 6ft | 0.34 lb |
| BNC1M-10 | 10ft | 0.53 lb |
| BNC1M-15 | 15ft | 0.77 lb |
| BNC1M-25 | 25ft | 1.25 lb |
| BNC1M-50 | 50ft | 2.45 lb |
