Description

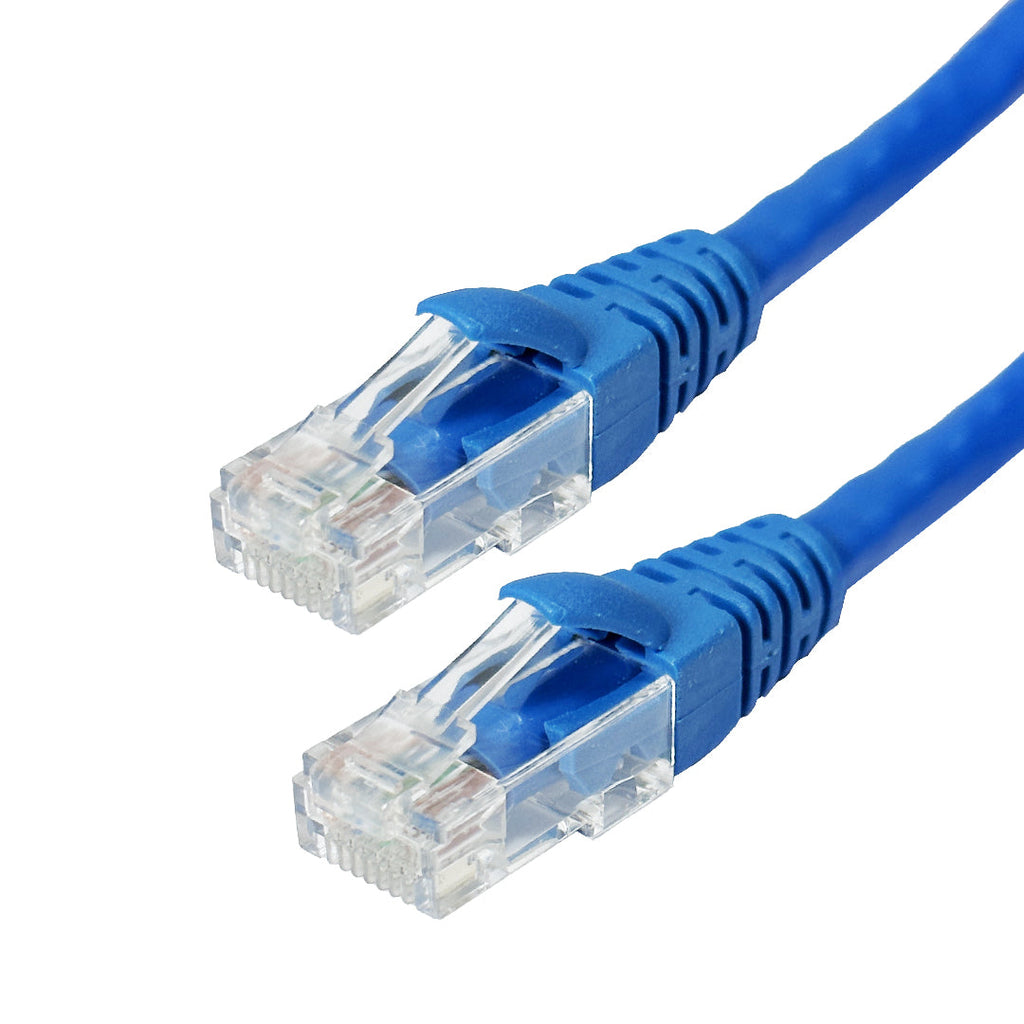

This custom Cat5e ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers.
TERMS: non-cancelable & non-returnable
| Physical Characteristics | |
|---|---|
| Colors Available | Black/Blue/Green/Grey/Orange/Pink/Purple/Red/White/Yellow |
| Connector Plating | Gold Plated 50 Micron |
| Cable Diameter | 5.5mm |
| Wire Gauge | 24AWG Stranded |
| Shielding | UTP (Unshielded) |
| Pairs | 4 |
| Fire Rating | CMR (FT4 Riser Rated) |
| Color Code | 568B |
| Temperature Rating | 75 Deg C |
| Jacket Type | PVC | Connector A | RJ45 Long Body Male |
| Connector B | RJ45 Long Body Male |
| Performance | |
| Frequency | 350 MHz |
| Approvals | |
| c(UL)us | Yes - Cable |
| ETL Verified | Yes |
| ANSI/TIA - 568 - C.2 | Yes |
| ISO/IEC 11801 | Yes |
| EN 50173-1 | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Materials | Yes |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
Spec Sheets
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
Product Weights
| SKU | Options | Weight |
| CAT5ECM-0.8BL | 8 inch | 0.05 lb |
| CAT5ECM-01BL | 1ft | 0.07 lb |
| CAT5ECM-02BL | 2ft | 0.1 lb |
| CAT5ECM-03BL | 3ft | 0.15 lb |
| CAT5ECM-04BL | 4ft | 0.17 lb |
| CAT5ECM-05BL | 5ft | 0.2 lb |
| CAT5ECM-06BL | 6ft | 0.21 lb |
| CAT5ECM-07BL | 7ft | 0.24 lb |
| CAT5ECM-08BL | 8ft | 0.26 lb |
| CAT5ECM-09BL | 9ft | 0.24 lb |
| CAT5ECM-10BL | 10ft | 0.33 lb |
| CAT5ECM-11BL | 11ft | 0.32 lb |
| CAT5ECM-12BL | 12ft | 0.38 lb |
| CAT5ECM-13BL | 13ft | 0.44 lb |
| CAT5ECM-14BL | 14ft | 0.46 lb |
| CAT5ECM-15BL | 15ft | 0.5 lb |
| CAT5ECM-16BL | 16ft | 0.57 lb |
| CAT5ECM-17BL | 17ft | 0.64 lb |
| CAT5ECM-18BL | 18ft | 0.71 lb |
| CAT5ECM-19BL | 19ft | 0.78 lb |
| CAT5ECM-20BL | 20ft | 0.63 lb |
| CAT5ECM-21BL | 21ft | 0.7 lb |
| CAT5ECM-22BL | 22ft | 0.71 lb |
| CAT5ECM-23BL | 23ft | 0.72 lb |
| CAT5ECM-24BL | 24ft | 0.74 lb |
| CAT5ECM-25BL | 25ft | 0.77 lb |
| CAT5ECM-30BL | 30ft | 0.95 lb |
| CAT5ECM-35BL | 35ft | 1.1 lb |
| CAT5ECM-40BL | 40ft | 1.33 lb |
| CAT5ECM-45BL | 45ft | 1.4 lb |
| CAT5ECM-50BL | 50ft | 1.55 lb |
| CAT5ECM-75BL | 75ft | 2.26 lb |
| CAT5ECM-100BL | 100ft | 3.0 lb |
