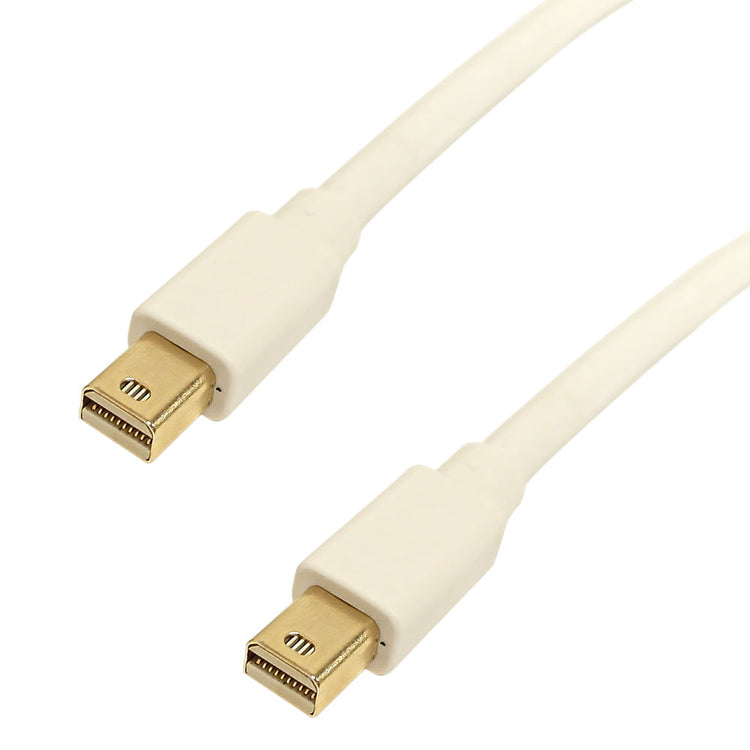

This cable has a Mini DisplayPort male on one end and a Mini DisplayPort male on the other. It is used to connect a Mini DisplayPort source to a Mini DisplayPort monitor. It can also be used to connect a Thunderboltā¢ source to a Mini DisplayPort monitor.
| Physical Characteristics | |
|---|---|
| Color | White |
| Connector Plating | Nickel |
| Wire Gauge | 32 AWG |
| Jacket Fire Rating | CL3/FT4 |
| Jacket Material | PVC |
| Connectors | |
| Connector A | Mini DisplayPort male |
| Connector B | Mini DisplayPort male |
| Performance | |
| Maximum Resolution | 4Kx2K (3840x 2160) |
| Maximum Frequency | 60Hz |
| Maximum Bandwidth | 21.6 Gbps (5.4Gbps * 4 lanes) |
| Supports 3D | Compliant |
| Audio Support | Compliant |
| DP Version | DP1.2 |
| Version | v1.2 Backwards Compatible with v1.1a |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Standards | |
| c(UL)us | Compliant |
| Packaging Information | |
| Packaging Quantity | 1 |
| Warranty | |
| Warranty | Lifetime Limited |
| 3ft | 6ft | 10ft | 15ft |
|---|---|---|---|
| 0.20 lbs | 0.30 lbs | 0.40 lbs | 0.50 lbs |
