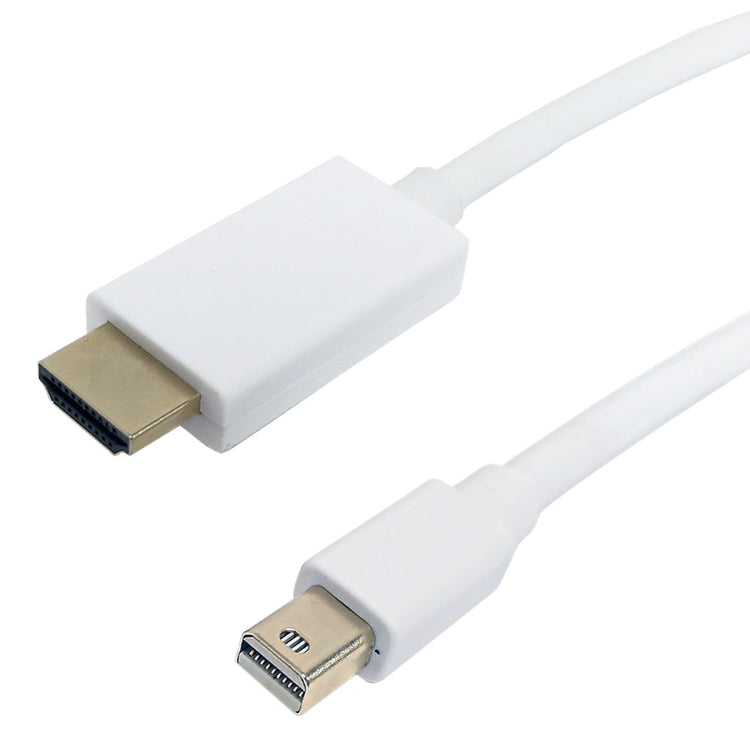

This cable has a Mini DisplayPort male on one end and a HDMI male on the other. It is used to connect a MDP source to a HDMI display. It cannot be used to connect a HDMI source to a Mini DisplayPort Monitor.
| Physical Characteristics | |
|---|---|
| Color | White |
| Connector Plating | Nickel |
| Wire Gauge | 32 AWG |
| Jacket Fire Rating | CL3/FT4 |
| Cable Type | Passive |
| Connectors | |
| Connector A | HDMI Male |
| Connector B | Mini DisplayPort Male |
| Performance | |
| Bandwidth | 10.2Gbs |
| Resolution | HD 4k x 2k (4096 x 2160) @ 30Hz |
| 3D Support | Compliant |
| DP Version | v1.2 |
| HDMI Version | v1.4 |
| Approvals | |
| c(UL)us | Approved Cable |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Packaging Quantity | 1 |
| Warranty | |
| Warranty | Lifetime Limited |
| 3ft | 6ft | 10ft | 15ft |
|---|---|---|---|
| 0.30 lbs | 0.35 lbs | 0.50 lbs | 1.07 lbs |
