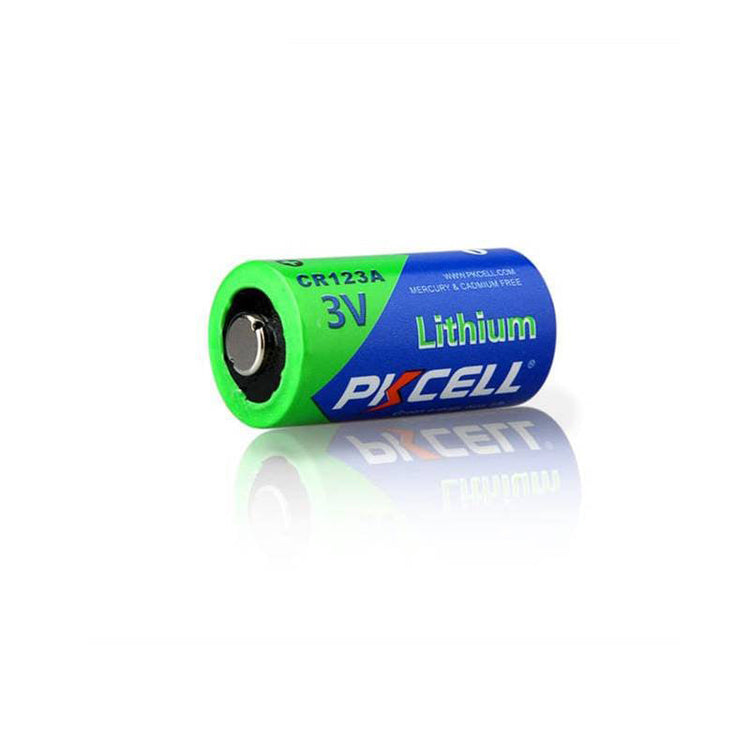

These 3V CR123A lithium manganese dioxide (Li-MnO₂) batteries offer high energy density and long-lasting performance, making them ideal for a wide range of applications. Designed with a metallic lithium cathode and a solid manganese dioxide anode, these batteries utilize a non-corrosive, non-toxic organic electrolyte for safe and efficient operation.
Features:
- High energy density
- High open circuit voltage
- Wide range of operating temperature
- Stable operating voltage and current
- Long operating time
- Low self-discharge rate (less than 1% per year at 25ºC)
Application:
- Memory backup: CMOS memory, RTC (real time clock) and computer backup
- AMR utility meters: Electricity meter, gas meter and water meter
- Wireless alarm sensors: Smoke alarm systems, temperature monitors
- Remote monitor systems: GPS, sea buoys, lifejacket lights, life craft lights, cargo-locating systems
- Automotive and electronics: Automotive security systems, tire-pressure monitoring systems
- Electronics toll tags: Toll gates
- Military electronics: Radio communication, night vision equipment, tracking and positioning systems
| Physical Characteristics |
| Type |
Cylindrical Primary Lithium (Energy) |
| Chemical System |
Lithium Manganese Dioxide (Li-MnO₂) |
| Standard Capacity Current |
1400mAH/1500mAh |
| Continuous Discharge Current |
10mA to 2.0V at 20 ± 3°C |
| Nominal Voltage |
3.0V |
| Max Constant Current |
1500mA |
| Max Pulse Current |
3000mA |
| Operating Temperature |
-40°C to 85°C |
| Typical Shelf life |
<1% per year at 25°C |
| Approval/Certification |
| IEC, SNI, BSCI, UL, ISO |
Yes |
| Packaging Information |
| Package Quantity |
1 pack of 2 batteries |
| Product Weight |
0.079 lbs |
