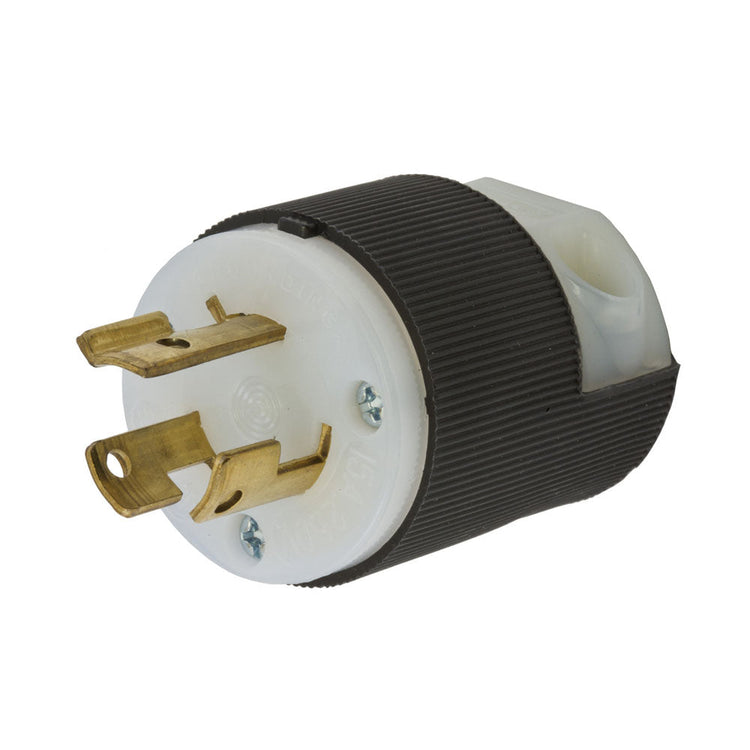

This L6-15P power cord connector is a 2-pole 3-conductor grounding heavy-duty plug. The tough nylon body provides impact and chemical resistance. The powerful offsetting cord grip clamps on individual conductors and outer cord jackets prevent strain on the terminals.
Physical Characteristics
|
No. of Poles |
2-Pole |
No. Of Conductor |
3 Conductor |
Connectivity |
Screw Terminals |
Material |
Polycarbonate |
Operating Temperature |
Maximum continuous 75Ā°C and Minimum -40Ā°C without Impact |
Cable Diameter Range |
0.360 - 0.930 inch |
Wire Gauge Compatibility |
8-16AWG |
Power Rating |
15A 250V |
Phase |
Single Phase |
Manufacturing Information
|
Hubbel Part No. |
HBL4570C |
Connectors
|
L6-15P |
Male |
Approvals
|
UL |
Yes |
CSA |
Yes |
Environmental
|
RoHS |
Yes |
Packaging Information
|
Package Quantity |
1 |
Product Weight |
0.15 lbs [0.06kg] |
