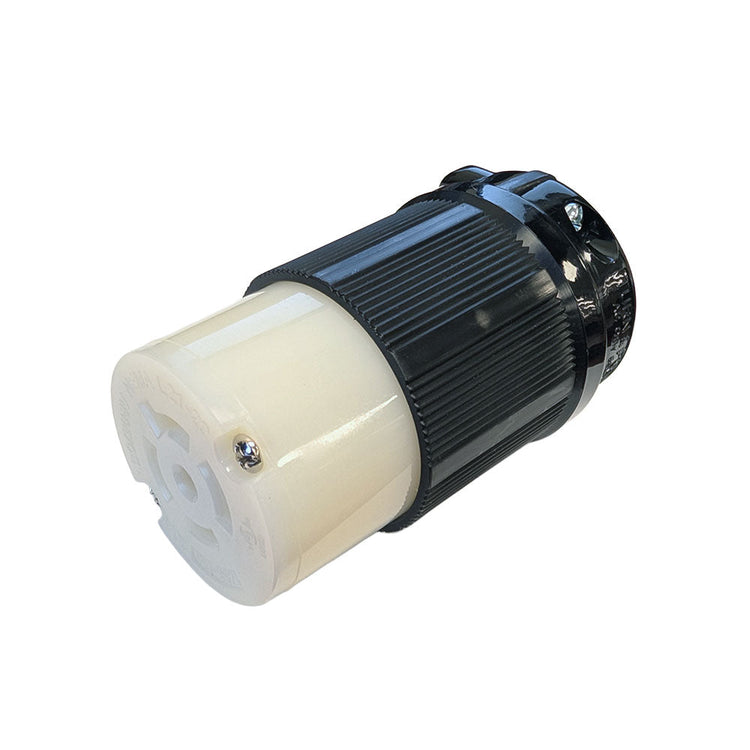

This L21-20R power cord connector is a 4-pole 5-conductor grounding heavy-duty plug. The tough nylon body provides impact and chemical resistance. The powerful offsetting cord grip clamps on individual conductors and outer cord jackets prevent strain on the terminals.
| Physical Characteristics |
| No. of Poles |
4-Pole |
| No. Of Conductors |
5 Conductor |
| Connectivity |
Screw Terminals |
| Material |
Polycarbonate |
| Operating Temperature |
Maximum continuous 75℃ and Minimum -40℃ without Impact |
| Cable Diameter Range |
0.375 - 1.156 inch |
| Wire Gauge Compatibility |
8-16AWG |
| Power Rating |
20A 120/208V |
| Phase |
Three Phase |
| Connectors |
| L21-20R |
Female |
| Approvals |
| c(UL)us |
Compliant |
| Environmental |
| RoHS |
Compliant |
| Packaging Information |
| Package Quantity |
1 |
| Product Weight |
0.15 lbs [0.06kg] |
