Description

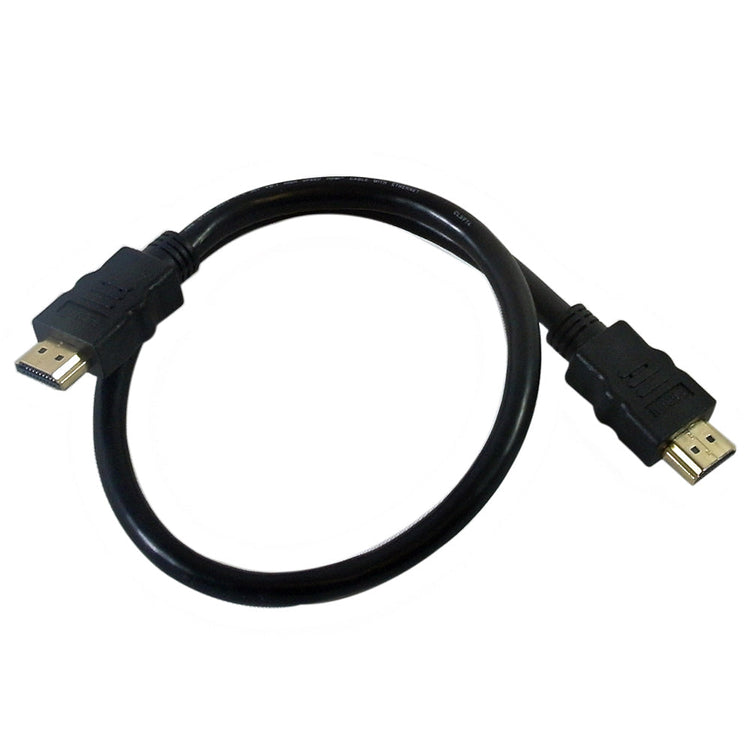

This High-Speed HDMI® cable consists of a HDMI male connector on both ends. It is typically used to connect a HDMI source such as Blu-Ray players and PC's to a HDTV or monitor and supports a maximum ultra HD resolutions up to 4k x 2k.

Physical Characteristics
Color	Black
Connector Plating	Gold
Cable Length	1.5ft ~ 15ft	20ft ~ 25ft	30ft ~ 50ft
Cable Diameter	7.3 mm	8.5 mm	10.0 mm
Wire Gauge	28 AWG	26+28 AWG	24+26 AWG
Min Bend Radius	40mm	75mm	85mm
Shielding	50% Braid + 100% Aluminum-Mylar Foil
Jacket Fire Rating	CL3/FT4
Jacket Material	PVC
Strain Relief	Molded PVC
Connectors
Connector A	HDMI A (19 pin) Male
Connector B	HDMI A (19 pin) Male
Performance
	1.5ft ~ 10ft	12ft ~ 40ft	45ft ~ 50ft
Resolution	HD 4k x 2k @ 60Hz	HD 4k x 2k @ 60Hz	HD 4k x 2k @ 30Hz
Built in Ethernet Channel	Compliant	Compliant	Compliant
3D Compatible	Compliant	Compliant	Compliant
Bandwidth	18Gbps	10.2Gbps	10.2Gbps
Audio Return Channel	Compliant	Compliant	Compliant
HDMI Version	HDMI 2.0, 2.0a, 2.0b	HDMI 1.4	HDMI 1.4
Approvals
c(UL)us	Approved Cable
Environmental
RoHS	Compliant
Reach	Compliant
Conflict Minerals	Compliant
Packaging Information
Package Quantity	1 Cable
Warranty Information
Warranty	Limited Lifetime
