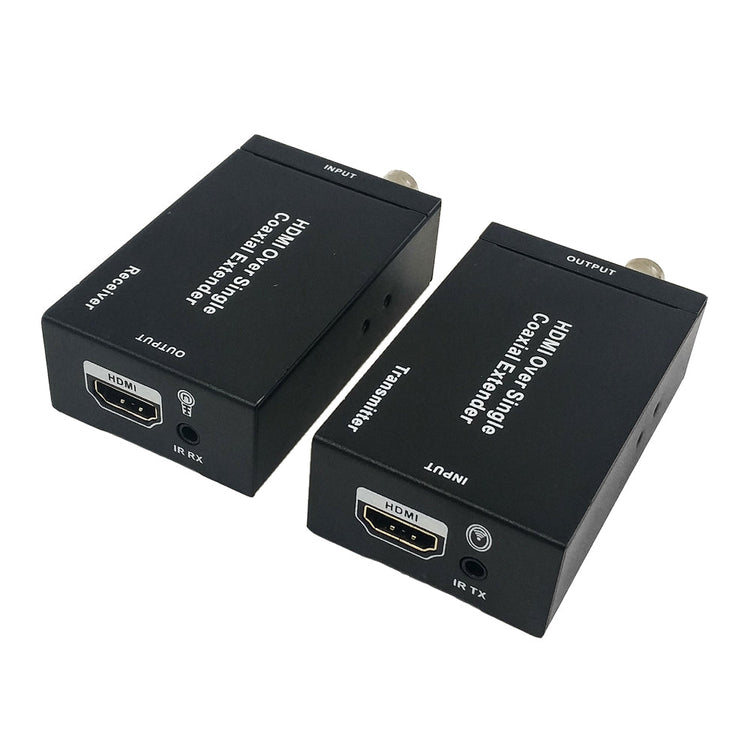

This HDMI video extender over coax cable allows you to extend an HD display up to 328ft (100 meters) away from your source device over a coax cable at a resolution of 1080p/60Hz.
Physical Characteristics | |
---|---|
Color | Black |
Housing | Metal Enclosure |
Operating Temperature | 0℃ ~ 40℃ |
Power | |
Input Voltage | 100-240V |
Power Supply | 2 x 5 volt, 1 amp DC Converter |
Connector(s) | |
Transmitter | HDMI Input Female, BNC Female |
Receiver | HDMI Output Female, BNC Female |
Performance | |
Video | 480i / 480p / 720p / 1080i / 1080p @ 60Hz |
Video Bandwidth | 225MHz Max |
IR Control | Yes, Bi-directional wide band IR |
Transmission Range | Full HD up to 100 meters (328 ft) HD up to 200 meters (656 ft) SD up to 300 meters (984 ft) |
Audio | Over Coax |
HDMI Compliant | Yes, 1.3 |
HDCP Compliant | Yes, 1.1 |
Approvals | |
Power Adapter | c(UL)us |
Environmental | |
RoHS | Yes |
Certification(s) | |
CE | Yes |
Packaging Information | |
Package Quantity | 1 |
Product Weight | 0.5 lbs [0.2kg] |
Package Weight | 1.08 lbs [0.5kg] |
Contents | |
Included in Package | 1 - Transmitter |
1 - Receiver | |
1 - IR Tx |
|
1 - IR Rx |
|
2 - DC5V Power Adapter |
|
1 - Manual |
2-YEAR WARRANTY
Infinite Cables Inc. offers a 2-year warranty on selected Power Adapters, NVR/DVR's, network switches, PoE products and all video boxes to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
