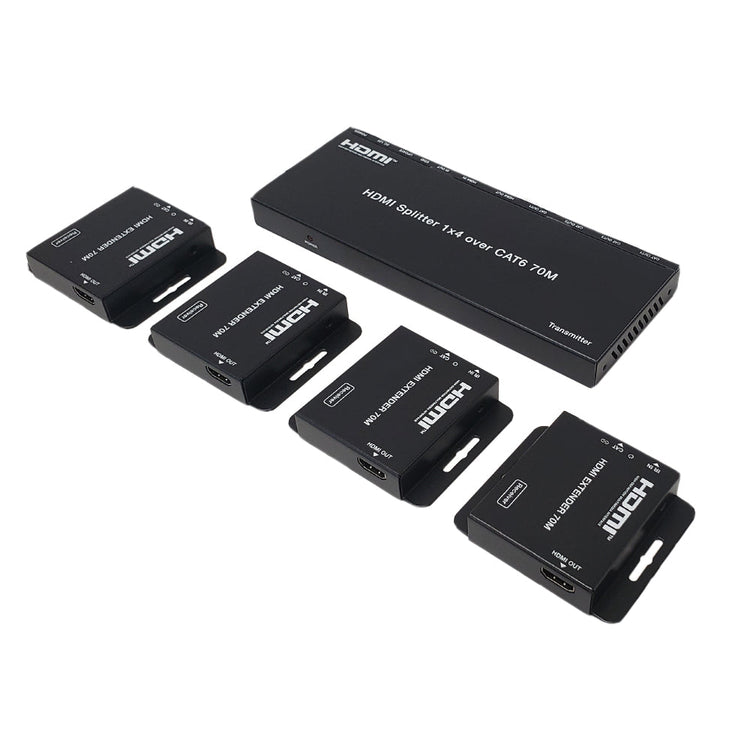

This 4 port HDMI video extender allows you to extend a maximum of four 3D/HD displays up to 131ft (40 meters) away from your source device over Cat6 cables at a resolution of 4K@30Hz.
Physical Characteristics | |
---|---|
Color | Black |
Housing | Metal Enclosure |
Dimensions | Transmitter: 210W x 83D x 18H mm Receiver: 79.5W x 69D x 16.5H mm |
Operating Temperature | 0 ~ 40℃ / 32 ~ 104℃F |
Storage Temperature | -20 ~ -60℃ / -4 ~ 140℃F |
Relative Humidity | 20~90% RH (non-condensing) |
Power | |
Input Voltage | 125V |
Power Supply | 12V/2.5A DC Power (US/EU Standards, CE/FCC/RoHS certificated) |
Power Consumption | 11W |
Connector(s) | |
Transmitter | Input: 1x HDMI IN [Type A, 19-pin female] Outputs: 1x HDMI OUT [Type A, 19-pin female] 4x CAT OUT [RJ45] Controls: 1x IR Out [3.5mm Stereo Mini-jack] 1x EDID DIP Switch [4-pin] 1x Update [Micro USB] |
Receiver | Input: 1x IR IN [3.5mm Stereo Mini-jack] 1x CAT IN [RJ45, 8-pin female] Outputs: 1x HDMI OUT [Type A, 19-pin female |
Performance | |
Video Resolution | 480i ~ 1080p 50/60Hz, 4Kx2K@30Hz (4:4:4) |
Video Bandwidth | 297MHz/10.2Gbps |
Transmission Range | 1080p@60Hz - Up to 70m (230ft)
4K@30Hz - Up to 40m (131ft) |
Color Depth | 8-bit, 10-bit, 12-bit (1080p@60Hz); 8-bit (4K@30Hz) |
Color Space | RGB, YCbCr4:4:4/4:2:2. YUV4:2:0 |
Audio Formats | LPCM 7.1CH, Dolby True HD, and DTS-HD Master Autio |
ESD Protection | Human body model - ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
HDMI Compliance | HDMI 1.4 |
HDCP Compliance | HDCP 1.4 |
Approvals | |
Power Adapter | c(UL)us, CE, YUV, CCC |
Environmental | |
RoHS | Yes |
Certification(s) | |
CE | Yes |
FCC | Yes |
Packaging Information | |
Package Quantity | 1 |
Product Weight | 1.27 lbs [0.57kg] |
Contents | |
Included in Package | 1 - HDMI Splitter 4 - CAT Receiver 1 - IR Blaster Cable (1.5m) 1 - IR Receiver Cable (1.5m) 2 - Mounting Ears 1 - 12V/2.5A DC Locking Power Adapter 8 - Machine Screw (KM3*4) 1 - User Manual |
