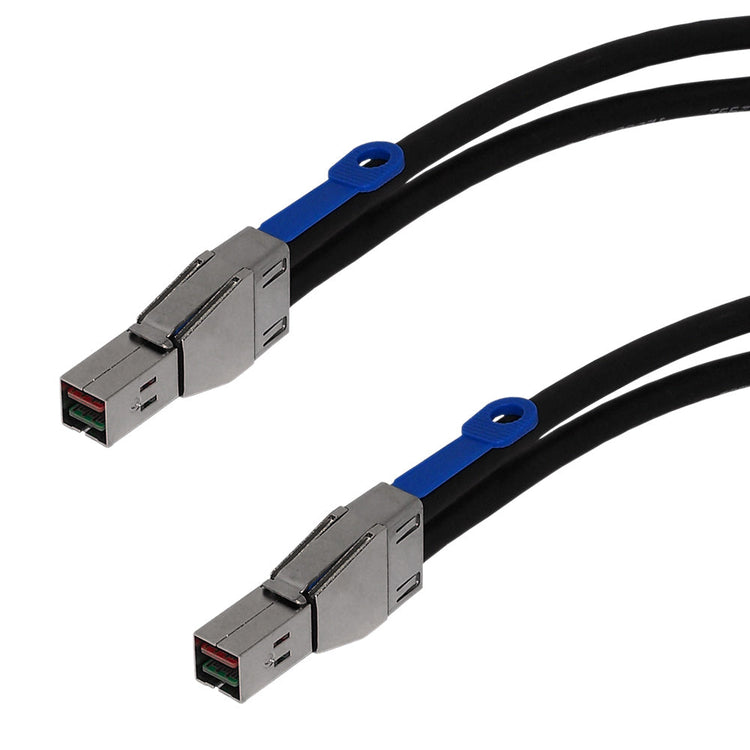

This external universal key HD Mini-SAS cable has HD Mini-SAS (SFF-8644) connectors on both ends. It is typically used in external storage applications.
| Physical Characteristics | |
|---|---|
| Impedance | 100±5 ohm |
| Application | SAS 12G Use |
| Wire Gauge | 30AWG (0.5m, 1m, 2m, 3m) / 26AWG (5m) |
| Cable Jacket Material | PVC |
| Contact Plating | Gold Plated |
| Connector Material | Zinc Die Cast, Nickel Plated Back Shells |
| Connectors | |
| Connector A | HD Mini-SAS (SFF-8644) |
| Connector B | HD Mini-SAS (SFF-8644) |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Packaging Quantity | 1 Cable |
| Warranty Information | |
| Warranty | 5 Year Warranty |
| 0.5m | 1m | 2m | 3m | 5m | 7m |
|---|---|---|---|---|---|
| 0.35 lbs [0.1kg] | 0.5 lbs [0.2kg] | 0.65 lbs [0.2kg] | 1.2 lbs [0.5kg] | 1.4 lbs [0.6kg] | 1.75 lbs [0.8kg] |
