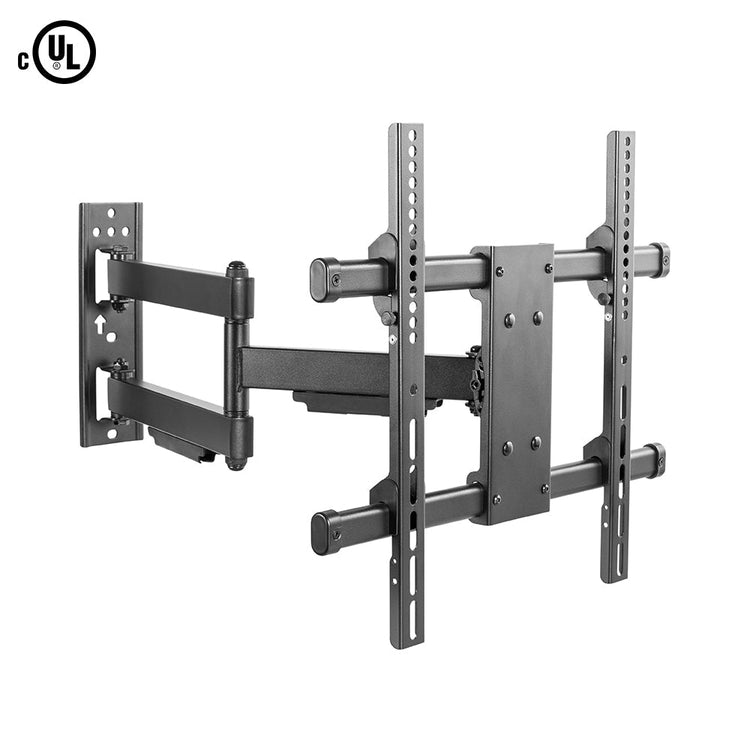

This full motion swivel, tilt and extending TV wall mount bracket is designed to hold most 32 inch to 55 inch LCD/LED displays with a maximum VESA hole pattern of 400x400. It offers up to a 5° to -15° tilt, 90° to -90° swivel and screen levelling of 3° ~ -3°. It can be used in both residential and commercial environments.
| Physical Characteristics | |
|---|---|
| Mounting Style | Tilting & Swivel Wall Mount |
| Color | Black |
| Material | Steel, Plastic |
| Surface Finish | Powder Coating |
| Dimensions | 615x485x430mm (24.2"x19.1"x16.9") |
| Mounting Pattern | VESA 200x200, 400x200, 300x300, 400x400 |
| Screen Size | 32 - 55 inches [81.2 - 139.7cm] |
| Weight Capacity | 110 lbs [50kg] |
| Tilt | +5° ~ -15° |
| Swivel | +90° ~ -90° |
| Level Adjustment |
+3° ~ -3° |
| Profile | 62 to 615mm [2.4 - 24.2 inches] |
| Bubble Level | Compliant |
| Cable Management |
Compliant |
| Freely Tilting |
Yes |
|
Fit Curved TV |
Compliant |
| Anti-theft |
No |
| Motorized |
No |
| Installation | Solid Wall or Single Stud |
| Pipe Size | 40x25x1.5mm,40x20x1.5mm (1.6"x0.98"x0.059",1.6"x0.79"x0.059") |
| Metal Sheet Thickness | Bracket Arm THK=1.5mm cold-rolled sheet, Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.059" cold-rolled sheet, Wall Plate THK=0.12" pickling sheet) |
| Approvals | |
| c(UL) |
Yes |
| RoHS | Compliant |
| Reach | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Mounting Hardware | 4 - M5x14 Screws 4 - M6x14 Screws 4 - M6x30 Screws 4 - M8x30 Screws 4 - M8x50 Screws 4 - Rectangular Washers 8 - Small Spacers 8 - Big Spacers 4 - ST6.3x55 Screws 4 - Concrete Anchors 4 - D6 Washers |
| Product Weight | 11.5 lbs [5.2kg] |
