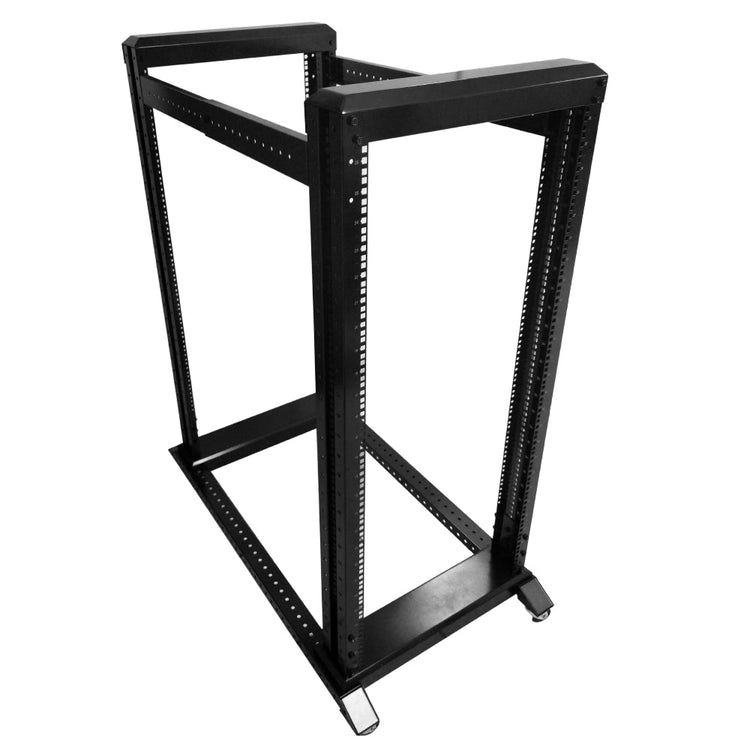

This 4-post relay rack is 19 inches wide, 26U in height and can be adjusted from 23 to 36 inches in depth. It is typically used to mount networking and audio/video rack mountable equipment.
![](https://cdn.shopify.com/s/files/1/0628/4404/3505/files/RoHS.png)
![](https://cdn.shopify.com/s/files/1/0628/4404/3505/files/reach.png)
Physical Characteristics |
Color | Black - Powder Coated |
Material | SPCC Cold Rolled Steel |
Loading Capacity | Maximum 551 lbs [250 kg] |
Mounting Rails | 2 Pairs of Square Hole Rails |
Mounting Rail Thickness | 1.7mm |
Product Dimensions
| 45.5 H, 23.6 W, Adjustable Depth from 24 to 36 inches [115 H, 60 W, 59 - 90 D cm] |
Usable Mounting Dimensions
| 26UH, 19" Wide, Adjustable Depth from 24 to 36 inches
|
Casters | Included - Optional Use
|
Compatibility |
Compatible Vertical Cable Managers |
RM-450-24U - Vertical Cable Manager for Relay Rack - 24U RM-455-26U - 26U Vertical Cable Manager - Front Facing
|
Approvals |
ANSI/EIA | Yes |
RS-310-D | Yes |
IEC60297-2 | Yes |
DIN41494 | Yes |
PART1 | Yes |
PART7 | Yes |
Environmental |
RoHS | Yes |
Reach | Yes |
Packaging Information |
Package Quantity | 1 - 4-post Relay Rack - 19in 26U (Unassembled) |
| 20 - M6 Screws and Cage Nuts |
| Assembly Hardware
|
Product Weight | 66 lbs [30 kg] |
