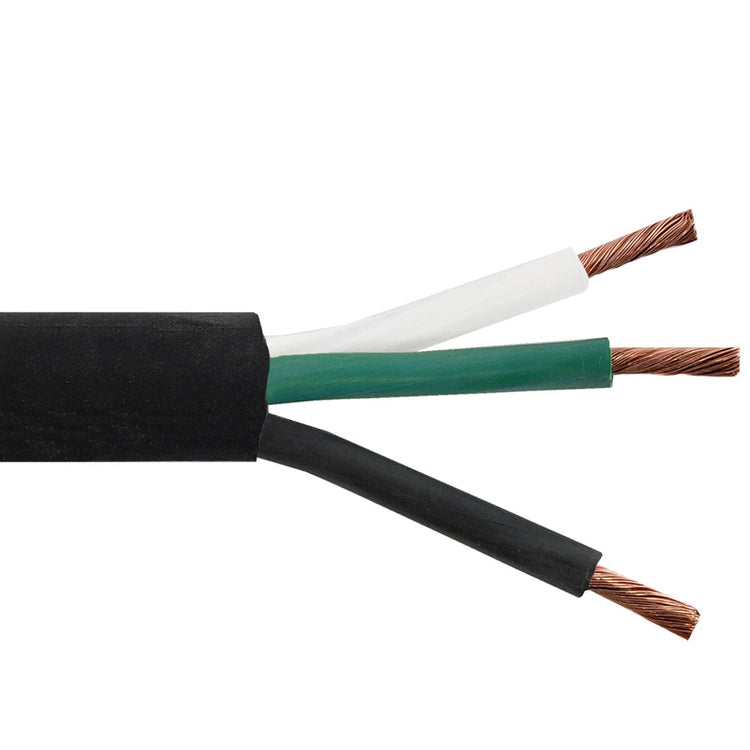

This bulk power cable consists of three 10 gauge conductors with a 600V SOOW jacket. It is typically used with industrial and processing equipment, cranes and hoists, track systems, construction equipment and other electrical equipment. It has excellent flexibility, resistance to oil, solvents, ozone, weather, sunlight and water. The cable is sold in bulk per meter.
Features:
 |
Flexible Stranded Bare Copper ConductorsThis cable is manufactured using high quality pure bare copper to ensure maximum conductivity, optimal performance and longest lifetime. The Quality and Convenience You NeedThis cable is sold per meter so you can have the right amount of flexible electrical cord cable needed for your application.
|
| Physical Characteristics | |
|---|---|
| Color | Black |
| Color Code | ICEA S-58-679, Method 1, table 1; black, white, green |
| Wire Gauge | 10AWG |
| Wire Standard | SOOW |
| Number of Conductors | 3 |
| Conductor Material | Flexible Stranded Bare Copper, ASTM B-174 and UL 62 |
| Insulation Material | EPR Compound, 90ĖC compound class 3, table 8, UL 62 |
| Assembly | Insulated conductors cabled together with integral filled or rubber fillers |
| Separator | Talc for 18-10 AWG |
| Number of Power Conductor Stranding | 104 / 30 |
| Nominal Insulation Thickness | 1.14mm |
| Nominal Jacket Thickness | 2.41mm |
| Nominal Outer Diameter | 16.5mm |
| Jacket | Black CPE 90ĖC compound class 1.4, table 22, UL 62 |
| Jacket Fire Rating | VW-1, FT2, and MSHA |
| Temperature Rating | -40ā to 90ā |
| Performance | |
| Rating Voltage | 600V |
| Approvals | |
| UL 62/CSA-C 22.2 No 49 |
Compliant |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 1.42 lbs/m |
We currently have this cable in stock, please allow approx. 1–2 business days for custom cutting and shipping. Please contact us at sales@infinitecables.com or 1-866-207-6442 with any questions.
