Overview

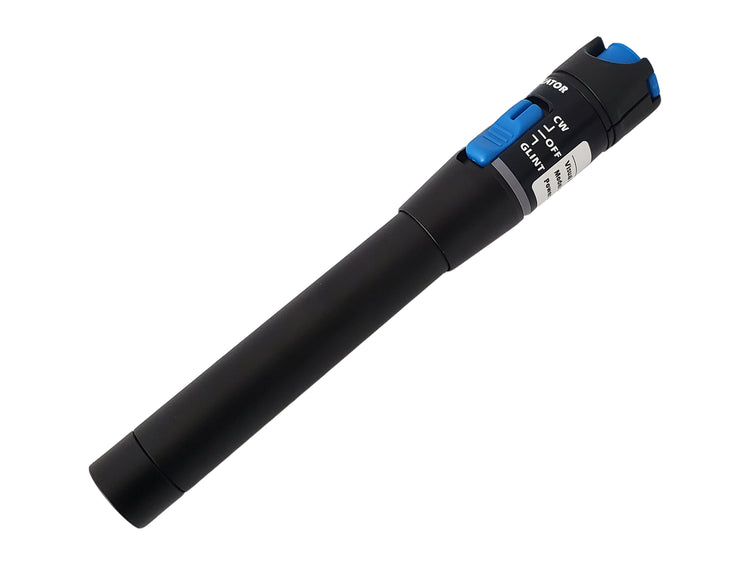

This pen shaped visual fault locator is a tool used on terminated fiber optic cables to locate sharp bends or breaks in jacketed or bare fiber.
Note: Meant for use with polished, terminated fiber cables. Always insert and remove the fiber connector without bending the connector to avoid breaking the ceramic tube.Ā
![](https://cdn.shopify.com/s/files/1/0628/4404/3505/files/TLH-2000-image.jpg) |
Protective Cover
The protective dust cap keeps the fiber connection port clear from dust and debris when not in use.
Durable Metal Housing
The VFL is constructed with a metal housing for long lasting durability.
Identify Fiber Breaks Easily
The pen has a bright red laser at 650nm and can quickly illuminate fiber optic cable breaks. It also has continuous (CW) and flashing (Glint) modes.
Ā
|
Specifications
Physical Characteristics
|
Material |
Metal Housing |
Wave Output |
650nm Ā± 20nm |
Fiber Connector |
2.5mm Universal Connector |
Output Power |
1mW |
Dynamic Distance |
3~5km |
Operation Mode |
Pulsed (2Hz) and CW |
Operating Temperature |
0 ~ +60 deg C |
Storage Temperature |
-20 ~ +70 deg C |
Battery Style |
LR6 (AA) 1.5V x 2 (Batteries not Included) |
Battery Life |
>40H (1mW) |
Size |
175 x 26 x 26mm |
Packaging Information
|
Packaging Quantity |
1 |
Product Weight |
0.37 lbs [0.17 kg]
|
Items Included |
1 x VFL Pen 1 x Carrying Case 1 x Carrying Strap (Batteries not Included) |
Ā
This ferrule adapter is used to convert the 2.5mm ferrule of a VFL to a 1.25mm ferrule in order to plug in LC connectors.Ā Compatible with our TLH-2000 VFL tool.
Physical Characteristics
|
Color |
Nickel Plated |
Housing |
Metal |
Sleeve |
Ceramic |
Connector(s)
|
Connector A |
2.5mm MaleĀ Ferrule |
Connector B |
1.25mm Female Ferrule |
Packaging Information
|
Package Quantity |
1 |
Product Weight |
0.01 lbs |
