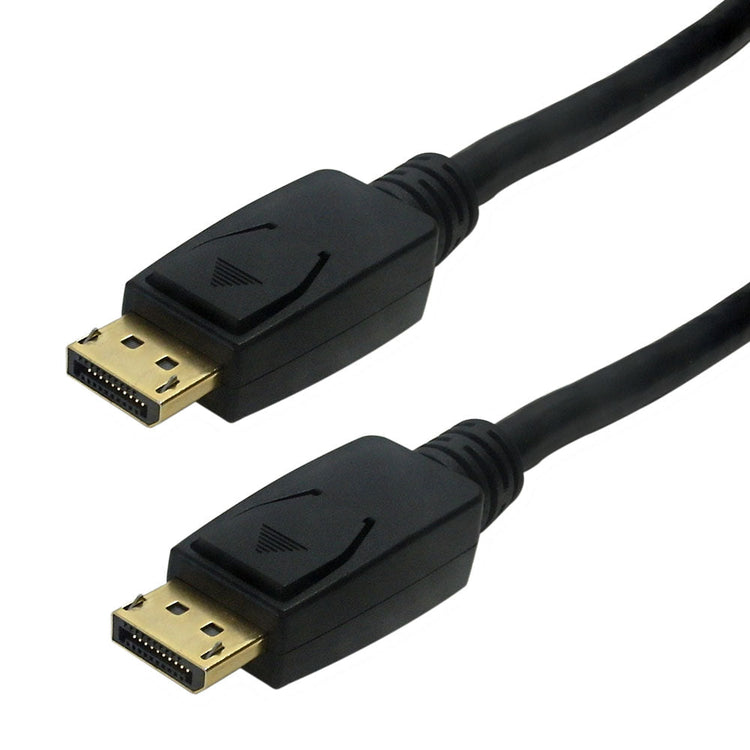

This cable consists of a DisplayPort male on one end and a DisplayPort male on the other end. It is typically used to connect a DisplayPort source to a DisplayPort monitor.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Cable Diameter | 7.3 mm |
| Wire Gauge | 26AWG |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CL3, FT4 Riser Rated |
| Cable Shielding | Compliant |
| Strain Relief | Molded PVC |
| Temperature Rating | 80 deg C |
| Connector(s) | |
| Connector A | DisplayPort Male |
| Connector B | DisplayPort Male |
| Performance | |
| Maximum Bandwidth | 10.8 Gbps (2.7Gbps * 4 lanes) |
| Maximum Resolution | 4K x 2K (3840 Ć 2160) |
| Maximum Frequency | 60Hz |
| 3D Support | Compliant |
| DP Version | v1.1 |
| Approvals | |
| c(UL)us | Compliant |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 15ft | 25ft |
|---|---|
| 0.65 lbs | 1.30 lbs |
