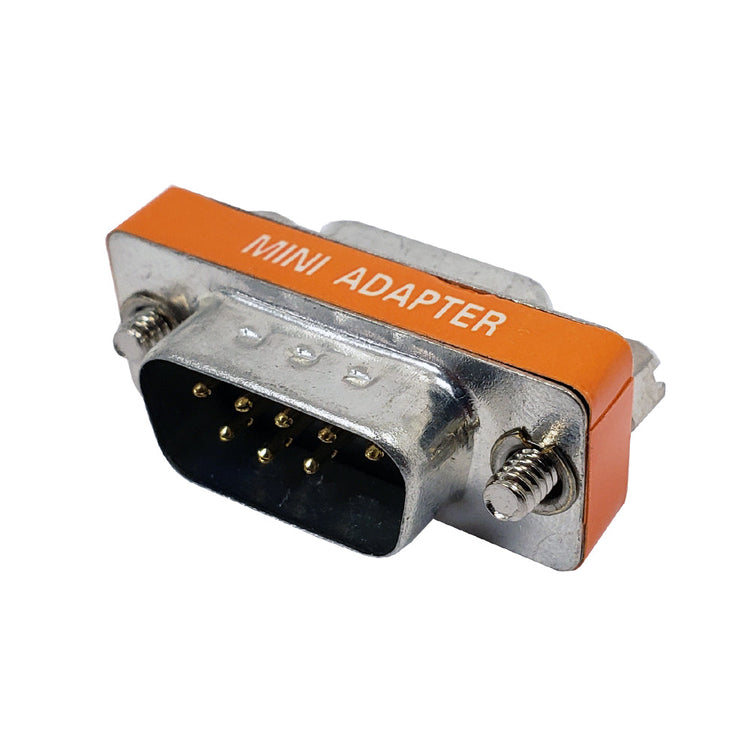

This slimline null modem adapter consists of a DB9 male on one end and a DB9 female on the other. It is primarily used to convert a DB9 female straight through cable to a DB9 male null modem cable.
Physical Characteristics |
Connector Plating | Nickel |
Contact Plating | Brass Gold flash over Nickel Plated |
Shell | SPCC Nickel Plated |
Insulator | PBT+30%GF UL94V-0 Blue |
Screw | Steel 12L14 Nickel Plated |
Pin Assignment | Null Modem |
Body Style | Slimline |
Dielectric Strength | 1000V AC for one minute |
Insulation Resistance | 1000M Ohm min. at 500V DC |
Temperature | -55Ā°C ~ +105Ā°C |
Rating Current | 3 AMP |
Connectors |
Connector A | DB9 Male |
Connector B | DB9 Female |
Pin Out |
| DB9 Male - DB9 Female |
| 1 + 6 - 4 |
| 2 - 3 |
| 3 - 2 |
| 4 - 1 + 6 |
| 5 - 5 |
| 7 - 8 |
| 8 - 7 |
| Shell - Shell |
Packaging Information |
Packaging Quantity | 1 |
Product Weight | 0.02 lbs [0.01 kg] |
