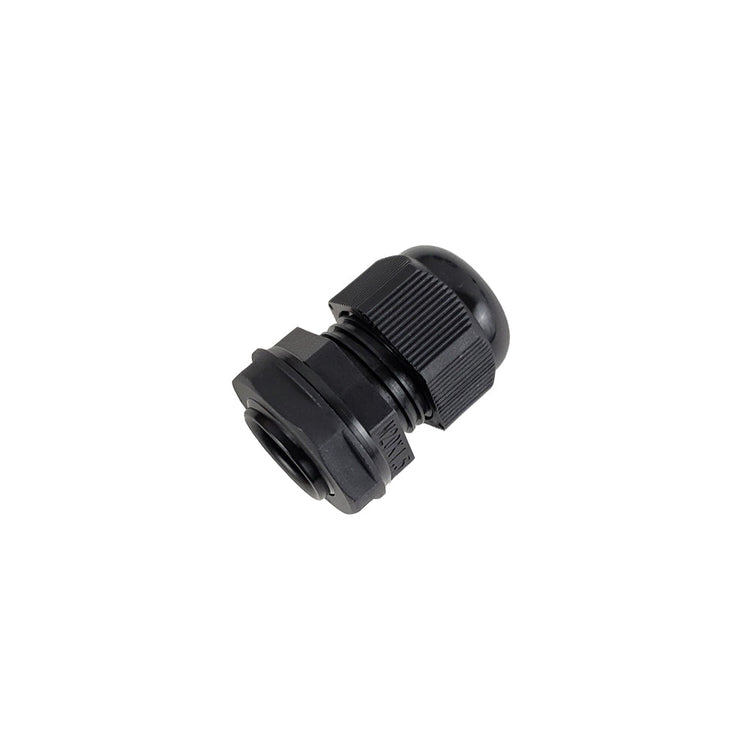

This cable gland has a metric thread pattern of M20xP1.5 and accommodates a cable size of 8 to 12mm. The gland is dust resistant and waterproof with an IP68 rating and also has a flammability rating of UL94V-2. Cable glands are often referred to as cord grips or strain reliefs and are designed to attach and secure the end of a cable to a receptacle box or equipment.
| Physical Characteristics | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Color | Black | ||||||||||||||||||
| Material | Nylon 66 | ||||||||||||||||||
| Thread | M20xP1.5 | ||||||||||||||||||
| Mounting Hole | 20.0 ~ 20.3 mm [0.79 ~ 0.80 inches] | ||||||||||||||||||
| Cable Range | 8 ~ 12 mm[0.31 ~ 0.47 inches] | ||||||||||||||||||
|
Dimensions (mm) |
|
||||||||||||||||||
| Flammability Rating | UL94V-2 | ||||||||||||||||||
| IP68 Rated | Compliant | ||||||||||||||||||
| Approvals | |||||||||||||||||||
| RoHS | Compliant | ||||||||||||||||||
| Packaging Information | |||||||||||||||||||
| Package Quantity | 1 | ||||||||||||||||||
| Product Weight | 0.2 lbs [0.09kg] | ||||||||||||||||||
