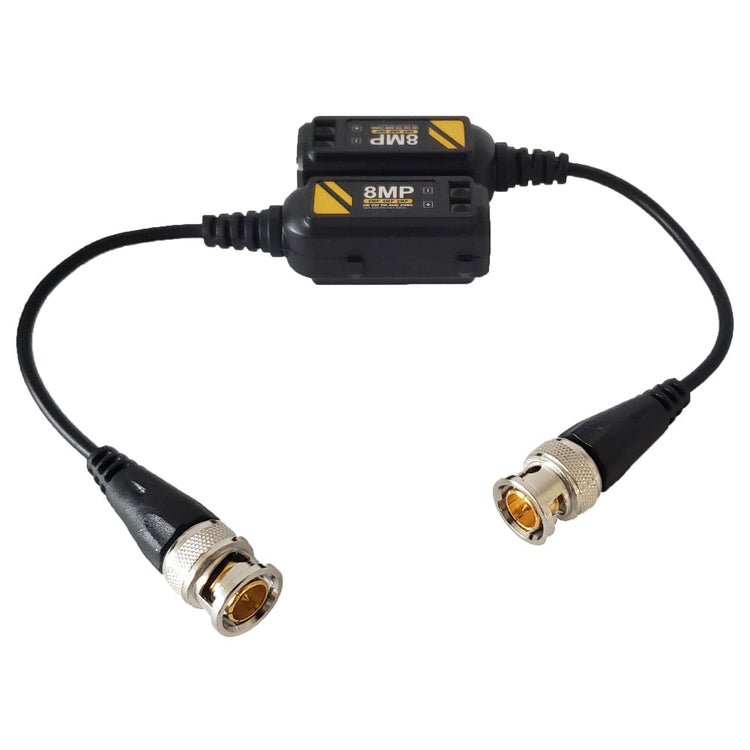

This BNC video extender over twisted pair cable consists of a transmitting and receiving unit. Each unit has BNC male connectors and screw-down terminals in it. It is used to extend a BNC composite signal over CAT5e/CAT6 cabling.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing Material | ABS |
| Operating Temperature | -10℃ - +55℃ |
| Storage Temperature | -20℃ - +70℃ |
| Humidity | 0 to 95% |
| Connectors | |
| Coaxial Video Connector | 2 - BNC Male |
| Twisted-pair Video Connector | 2 - Channel Punch Terminals |
| Impedance | 75 Ohms - BNC 100 Ohms - UTP |
| Performance | |
| Transmission Signal | 1 Channel |
| Compatible Format | HD-CVI, HD-TVI and HD-AHD |
| Supported Video Formats | NTSC/PAL/SECAM |
| Resolution | 720p/1080p/4MP/5MP/8MP |
| Transmission Distance | Up to 400m for 720p CVI cameras UP to 250m for 1080p CVI cameras Up to 200m for 4MP/5MP/8MP CVI Cameras Up to 250m for 720p/1080p TVI Cameras Up to 200m for 4MP/5MP/8MP TVI Cameras Up to 350m for 720p AHD cameras Up to 200m for 1080p/4MP/5MP/8MP AHD Cameras |
| Frequency Response | DC to 60MHz |
| Anti-Interference | >60dB |
| Surge Protection | 4kV |
| Electrostatic Discharge | 8kV |
| Power Required | No |
| Approvals | |
| CE | Yes |
| FCC | Compliant |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.1 lbs [0.1kg] |
