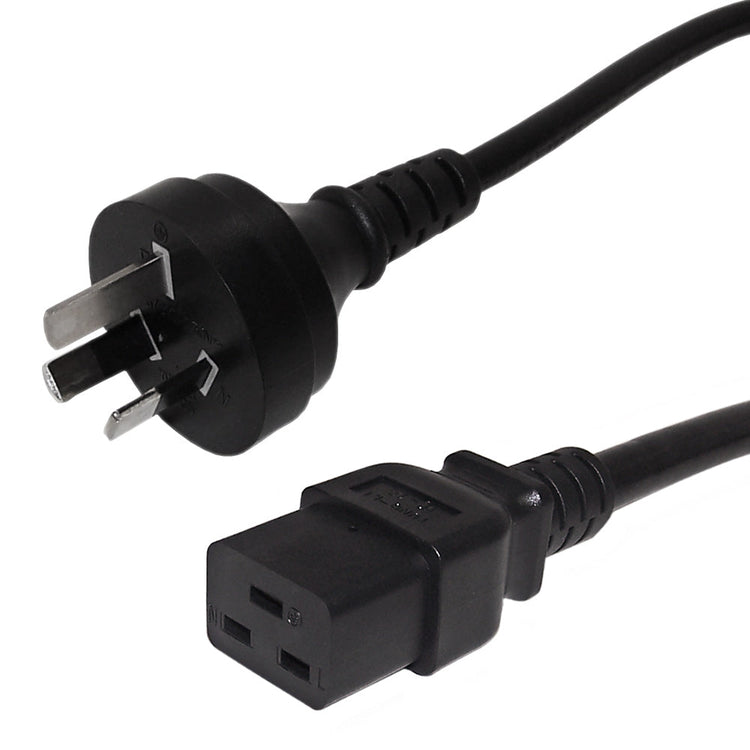

This power cord consists of a AS3112 male on one end and a C19 female on the other end. It is typically used to connect a server or UPS to a PDU or a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and high quality molds. The connectors premium quality to ensure a snug fit into PDU receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
| Physical Characteristics |
| Cable Length | 2m |
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 1.0mm2 |
| Jacket | H05VV-F |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Strain Relief | Molded 100% Virgin PVC |
| Connector(s) |
| Connector A | AS3112 (Australia) |
| Connector B | IEC 60320 C19 |
| Performance |
| Power Rating | 10 Amp / 250 Volt |
| Approvals |
| Standards | Manufactured in Compliance With AS3112 |
| ISO | ISO 9001:2000, ISO 14000 |
| Additional Standards Available Upon Request | |
| Environmental |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information |
| Package Quantity | 1 |
| Product Weight | 0.8 lbs [0.3kg] |
| Warranty Information |
| Warranty | Limited Lifetime |
