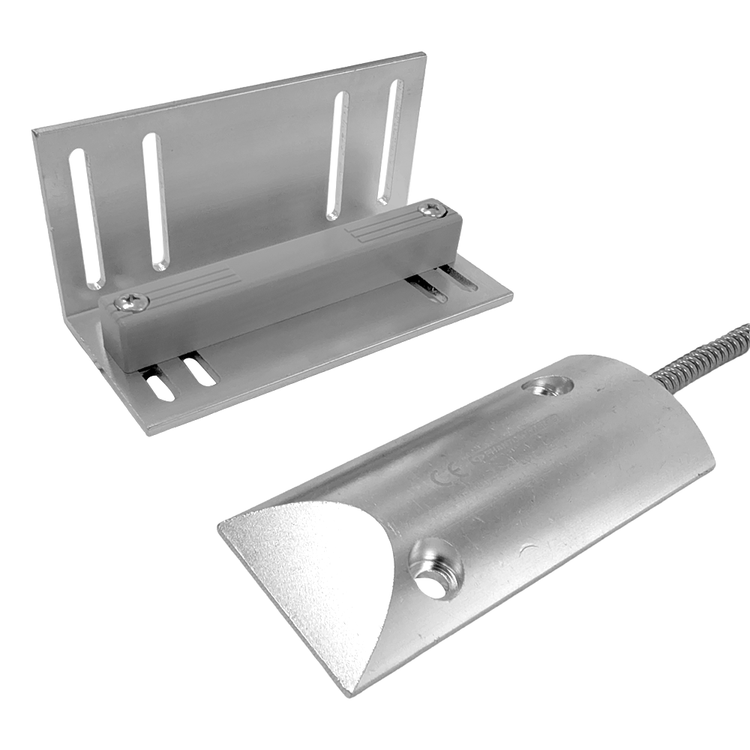

This armored overhead door contact sensor is a hardwired security solution designed to provide simple and reliable protection for commercial spaces. The aluminum case makes it rust resistant and perfect for installation in areas that may be exposed to the elements. The L bracket also allows for flexible mounting options.
This sensor operates on a Single Pole Double Throw (SPDT) reed switch configuration for both loop-type closed and open security systems, allowing the circuit to be wired as either normally closed or normally open depending on your panel's requirements, and triggering an alarm instantly if the state is interrupted.
Features:
| Physical Characteristics | |
|---|---|
| Dimensions | Contact: 104.5 x 44.5 x 11.5mm Bracket: 107.5 x 50 x 50mm |
| Loop Type | Closed & Open |
| Reed Form | SPDT (Single Pole, Double Throw) |
| Closed Gap | 2.4" (60mm) |
| Departure Gap | 2.8" (71mm) |
| Lead | 22" 22AWG Armored Cable |
| Maximum Initial Contact Resistance | 0.150 Ohm |
| Maximum Contact Rating | 3W |
| Maximum Switching Voltage | 30 VDC/VAC |
| Maximum Switching Current | 0.2A |
| Environmental | |
| RoHS | Compliant |
| CE | Compliant |
| Packaging Information | |
| Package Quantity | 1x Contact with Lead 1x L Bracket |
| Product Weight | 0.57 lbs |
