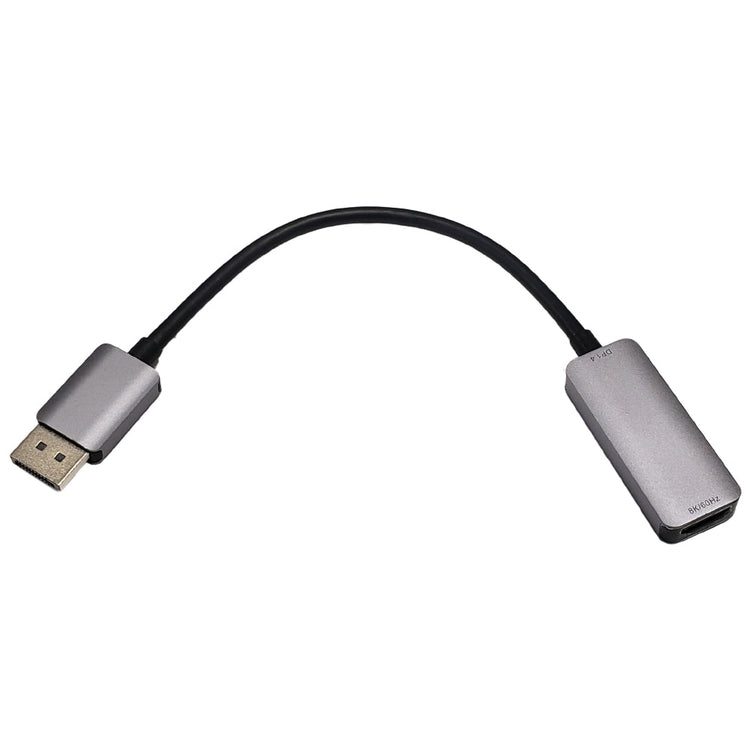

This adapter consists of a DisplayPort v1.4 male on one end and a HDMI female on the other. It is used to connect a DisplayPort source to an analog HDMI display. It does not work from a HDMI source to a DisplayPort monitor.
|
| Ultra High-Definition ResolutionThis adapter supports video resolutions up to Ultra HD 8K @ 60Hz. Supports Multiple Color FormatsThis adapter supports a variety of color formats - including RGB and YCbCr4:4:4, YCbCr4:2:2, 8/10/12-bit per component. Used in Common InstancesThis adapter can be used in common instances - for example, connecting your PC to a TV. It can be used in settings such as data control centers, conference rooms, schools and corporate training environments. |
| Physical Characteristics | |
|---|---|
| Connector A | DisplayPort Male v1.4 |
| Connector B | HDMI Female |
| Performance | |
| Resolution | 8K@60Hz |
| Supported Application | DisplayPort input and HDMI output |
| DisplayPort Features | Supports DP1.4 Supports DSC1.1/1.2a or uncompressed video Supports DSC 1.1/1.2a decoder Supports 8/10/12 bit color depth Supports pixel format RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0 |
| HDMI Features | Supports Dynamic HDR10+ Supports HDCP1.4 and HDCP2.3 specification Supports HPD Supports DSC 1.1/1.2a decoder Supports 8/10/12 bit color depth output Supports pixel format RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0 Supports 1 to 32 channels LPCM 192kHz audio output Supports HBR audio up to 1536kHz |
| Approvals | |
| FCC | Compliant |
| CE | Compliant |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Packaging Quantity | 1 |
| Product Weight | 0.50 lbs [0.23 kg] |
