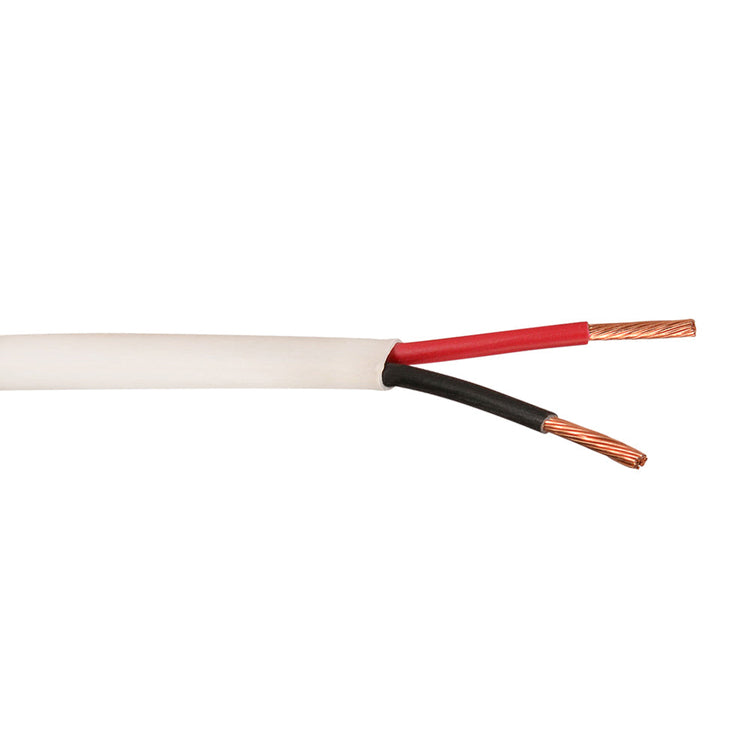

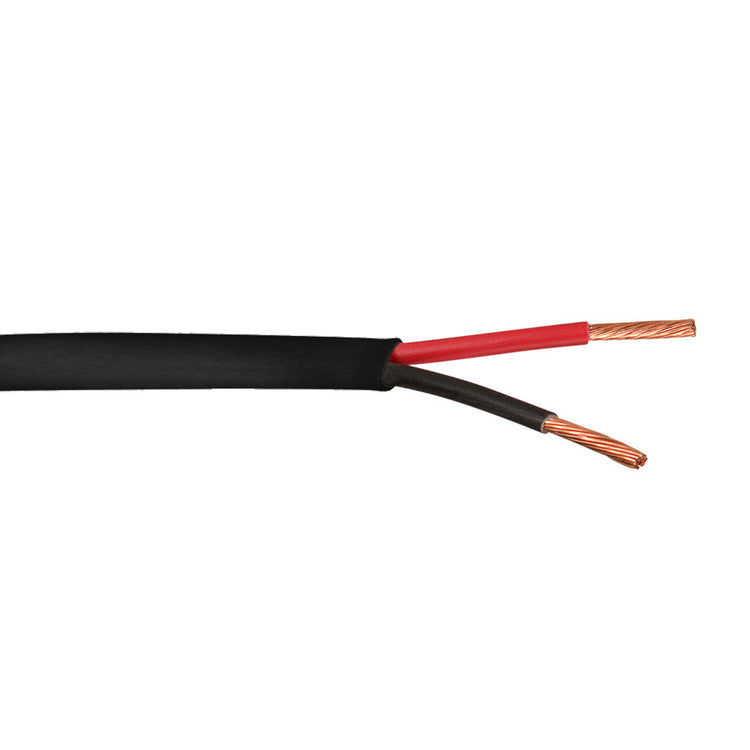

This bulk in-wall speaker cable is made from oxygen free multi-stranded copper cable to capture all highs & lows for optimum audio performance. It is typically run in walls and used to connect speakers to amplifiers.
| Physical Characteristics | |
|---|---|
| Cable Length | 500 foot [152.4m] |
| Color | Black/White |
| Number of Conductors | 2 Conductor |
| Temperature Rating | -20°C ~ 75°C |
| Wire Gauge | 14 AWG |
| Conductor Material | 100% Bare Oxygen Free Copper (OFC) |
| Stranding | 105 * 34AWG |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMR [Riser Rated] |
| Nominal Jacket Thickness | 0.45mm |
| Nominal Overall Diameter | 7.0mm |
| Nominal Insulation Thickness | 0.38mm |
| Nominal Insulation Diameter | 2.8mm |
| Max Voltage Rating | 300V |
| Nominal Conductor DCR | 2.53 Ohm/1000ft |
| Nominal Capacitance Conductor-to-Conductor | 22 pF/ft |
| Mechanical Characteristics | |
| Before Tensile Strength (Mpa) | >=13.8 |
| Aging Elongation (%) | >=100 |
| Aging Condition (ºC x hrs) | 100x168 |
| After Tensile Strength (Mpa) | >=85% of unaged |
| Aging Elongation (%) | >=50% of unaged |
| Cold Bend (-20±2º Cx4hrs) | No Crack |
| Approvals | |
| c(ETL)us | Compliant |
| Environmental | |
| Reach | Compliant |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 29.1 lbs [13.1kg] |
