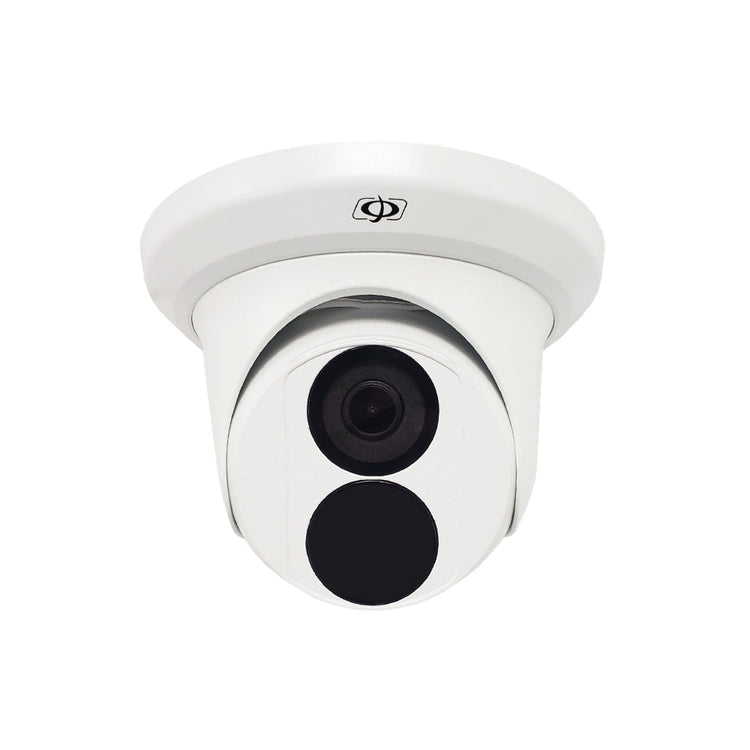

This 4MP indoor/outdoor, IP based turret camera provides a sharp, high definition images in daylight or nighttime settings. The camera is available in 2.8mm and 4mm fixed lens which delivers a 97 Ā° and 79 Ā° horizontal field of view respectively. Its maximum resolution is 2560*1440 at 25/20fps and supports Ultra 265 video compression technology, which assures savings in bandwidth and storage. The camera is IP based with integrated PoE technology which makes for a quick and easy installation over a single CAT5e/CAT6 cable. Its housing is IP67 rated for outdoor use and has 98 feet of night vision using an IR cut filter and IR LEDs.
 |
Features
|
The typical application for most security cameras networks is to connect the IP cameras to a NVR/DVR for simplified playback and additional storage space. Alternatively you can use an IP cameras as a standalone camera and not part of a network by connecting it directly to a POE switch and save the recording on a micro SD card.
NVR Setup
Standalone Camera Setup
| Camera | |
|---|---|
| Image Sensor | 1/3" (4 MP) progressive scan CMOS |
| Minimum Illumination | Color: 0.01 lux @ (f/2.0, AGC on) 0Lux with IR |
| Shutter Speed | Auto/Manual, 1 ~ 1/100000s |
| Slow Shutter | Yes |
| Day /Night | IR cut filter with auto switch (ICR) |
| S/N | >56dB |
| WDR | DWDR |
| Adjustment Angle | Pan: 0Ā° ~ 360Ā° , Tilt: 0Ā° ~ 75Ā°, Rotate: 0Ā° ~ 360Ā° |
| Lens | |
| Lens Type | 2.8mm and 4.0mm @ 2.0, Fixed-focal |
| Lens Mount | M12 |
| Angle of View (H) | 97.0Ā° (2.8mm), 79.0Ā° (4mm) |
| Angle of View (V) | 52.2Ā° (2.8mm), 42.3Ā° (4mm) |
| Angle of View (O) | 107.5Ā° (2.8mm), 85.1Ā° (4mm) |
| DORI | |
| DORI Distance | 2.8mm Lens, 63.0m Detect, 25.2m Observe, 12.6m Recognize, 6.3m Identify 4.0mm Lens, 90.0m Detect, 36.0m Observe, 18.0m Recognize, 9.0m Identify |
| IR | |
| IR Range | Up to 30m (98ft) |
| Wavelength | 850 nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream:D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Video Bit Rate | 128 Kbps~6144 kbps |
| U-code | Supported |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Vertical/Horizontal/180Ā° |
| Dewarping | N/A |
| HLC | Supported |
| BLC | Supported |
| Defog | Digital Defog |
| Events | |
| Behavior Detection | Cross line, intrusion(based on human body detection) Motion detection, tampering alarm |
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication |
| Storage | |
| Edge Storage | Micro SD, up to 128GB |
| Network Storage | ANR, NAS(NFS) |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API , SDK |
| User/Host | Up to 32 users. 2 user levels: administrator and common user |
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | EZStation EZView EZLive |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ |
| Interface | |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Certification | |
| EMC | FCC: FCC Part 15 |
| Safety | CE: EN 60950-1 UL: UL60950-1 IEC 60950-1 |
| NDAA CompliantĀ | Yes |
| General | |
| Power | DC 12VĀ±25%, PoE (IEEE 802.3af, Mode B ā Pins 4, 5, 7 and 8) Power consumption: Max 4.0W |
| Power Interface | Ć 5.5mm coaxial power plug |
| Dimensions (Ć x H) |
Ī¦118 x 97mm (Ī¦4.6ā x 3.8ā) |
| Weight | 0.30kg (0.66lb) |
| Material | Metal + Plastic |
| Working Environment | -30Ā°C ~ 60Ā°C (-22Ā°F ~ 140Ā°F), Humidity: ā¤95% RH (non-condensing) |
| Storage Environment | -30Ā°C ~ 60Ā°C (-22Ā°F ~ 140Ā°F), Humidity: ā¤95% RH (non-condensing) |
| Surge Protection | 4KV |
| Reset Button | N/A |
| Ingress Protection | IP67 |
Phantom Camview iOS App
Supports iOS 8.0 or later & requires macOS 11.0 or later and a Mac with the Apple M1 chip or later. Compatible with iPhone, iPad, iPod touch and Mac.
PhantomCamStation Windows app to set up cameras
3-YEAR WARRANTY
Infinite Cables Inc. offers a 3-year warranty on all cameras and hard drives to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Options | Weight |
| SCD-4TR100-2WH | 2.8mm Lens / White | 0.77 lb |
| SCD-4TR100-2BK | 2.8mm Lens / Black | 0.77 lb |
