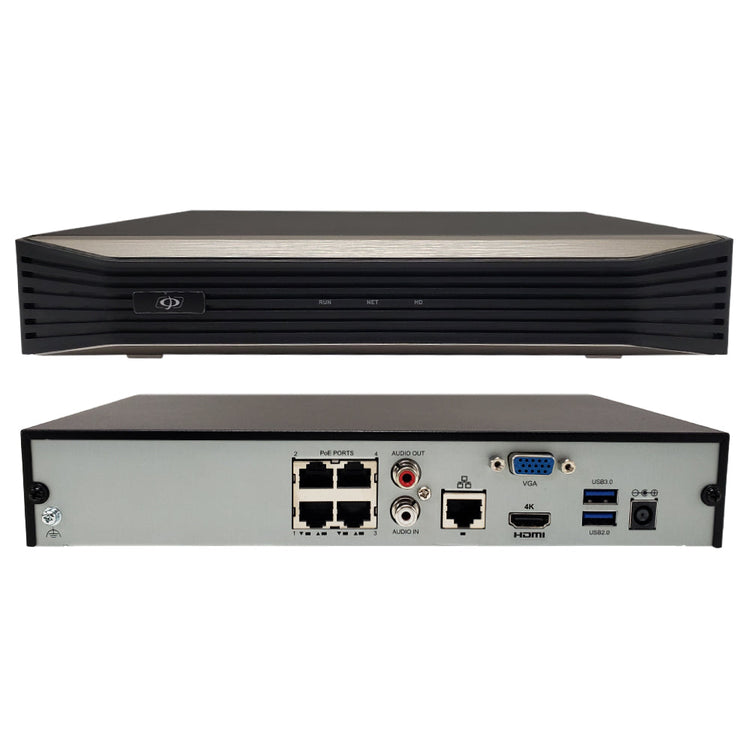

This 4 channel NVR is a network video recorder. It has 4 built in plug & play PoE ports to make set up simple and easy. With a space for one hard drive with capacity up to 8TB and can support Ultra 265/H.265/H.264 video format compression to put less stress on storage and bandwidth usage. A local monitor can be connected either through the HDMI or VGA ports.
Features
| Physical Characteristics | |
|---|---|
| Dimensions | ‚¬ 10.2" x 9.4" x 1.9" (‚¬ 260 x 240 x 47mm) |
| Operating Temperature | -10°C to 55°C (14°F to 131°F); Humidity ≤ 90% RH (non-condensing) |
| Power Supply | 48V DC |
| Power Consumption | ≤ 9W(without hard disks) |
| Video and Audio Input | |
| IP Video Input | 4-channel |
| Two-Way Audio Input | 1-channel, RCA |
| Video and Audio Output | |
| HDMI/VGA Output | HDMI: 3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-channel, RCA |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 4-channel |
| Liveview Display | 1/4 |
| Corridor Mode Screen | 3/4 |
| Network | |
| Incoming Bandwidth | 80Mbps |
| Outgoing Bandwidth | 64Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP |
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
| Decoding | |
| Decoding Format | Ultra 265/H.265/H.264 |
| Liveview/Playback | 8MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30 |
| Hard Disk | |
| SATA | 1 SATA Interface |
| Capacity | Up to 8TB capacity for each HDD (The maximum HDD capacity varies with environment temperature) |
| Smart | |
| VCA Detection By Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking |
| VCA Search | Behavior Search |
| People Counting | People Flow Counting, Crowd Density Monitoring |
| Smart Intrusion Prevention (SIP) By Camera | 4-channel |
| General Alarm | |
| Network Interface | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| External Interface | |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Rear panel: 1 x USB2.0,1 x USB3.0 |
| RS232, RS485, Alarm In, Alarm Out | N/A |
| PoE | |
| Interface | 4 RJ45 10M/100M Self-Adaptive Ethernet Interface |
| Max Power | Max 30W for single port Max 54W in total |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
| Certification | |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 |
| FCC | Part15 Subpart B, ANSI C63.4 |
| NDAA Compliant | Compliant |
| Packaging Information | |
| Package Contents | 1 - NVR 1 - Hard Disk Data Cable 1 - Hard Disk Power Cable 1 - Power Cable 4 - Screws 1 - User Manual |
| Product Weight | 2.20 lbs [1.0 kg] |
3-YEAR WARRANTY
Infinite Cables Inc. offers a 3-year warranty on this product to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
