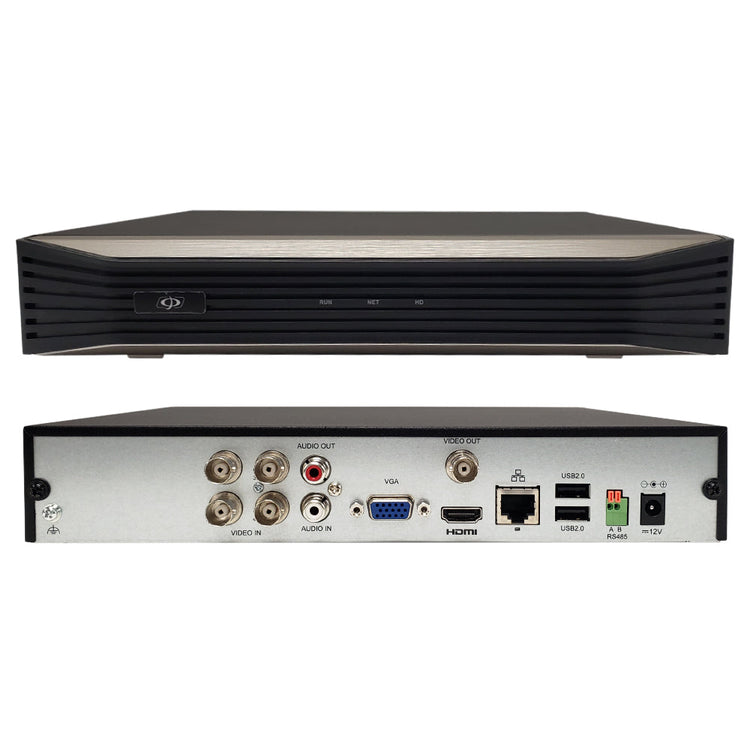

This DVR can support a maximum of 4 analog channels or a maximum of 6 IP channels for a total of 6 cameras in any combination. The analog cameras connect directly to the DVR and can support AHD, CVI and CVBS surveillance camera formats. IP cameras can be connected through a PoE switch only. Long distance transmission is supported over UTP and coaxial cables. The DVR can output video simultaneously using the HDMI and VGA ports. (Hard drive sold separately).
Features
| Physical Characteristics | |
|---|---|
| Dimensions | 10.2" x 9.4" x 1.8" (260 x 240 x 46mm) |
| Operating Temperature | -10°C to 55°C (14°F to 131°F); Humidity ≤ 90% RH (non-condensing) |
| Power Supply | 12V DC |
| Power Consumption | ≤ 8 W(without HDD) |
| Video and Audio Input | |
| Analog Video Input | 4-channel, BNC |
| IP Video Input | 2-channel (only IP up to 6-channel), each channel up to 4K |
| Supported Analog Camera Types |
Support AHD input: 8MP@8fps(channel1) 5MP@20fps 4MP@30fps 3MP@30fps(channel1) 1080P@30fps 720P@60fps Support TVI input: 8MP@8fps(channel1) 5MP@20fps 4MP@30fps 3MP@20fps (channel1) 1080P@30fps 720P@60fps Support CVI input: 8MP@8fps(channel1) 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input |
| Audio Input | 1-channel, RCA |
| Two-Way Audio | 1-channel, RCA |
| Video and Audio Output | |
| CVBS Output | 1-channel, BNC |
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| HDMI Output | 3840 x 2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Audio Output | 1-channel, RCA |
| Synchronous Playback | 4-channel |
| Network | |
| Incoming Bandwidth | 48Mbps |
| Outgoing Bandwidth | 60Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P,UPnP, NTP, DHCP, PPPoE |
| Encoding | |
| Recording Resolution | 8MP Lite/5MP Lite/4MP Lite/1080P/960P/720P/960H/D1/4CIF/CIF |
| Recording Frame Rate |
Main stream: 8MP Lite@8fps(channel1) 5MP Lite@12fps 4MP Lite@15fps 3MP@15fps(channel1) 1080P@15fps 720P@30fps Sub stream: D1@12fps(Max |
| Hard Disk | |
| SATA | 1 SATA Interface |
| Capacity | Up to 6TB capacity for each HDD |
| Smart | |
| VCA Detection | 1-channel intrusion detection and cross line detection on analog camera |
| VCA Search | Behavior search on analog camera |
| External Interface | |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Rear panel: 2 x USB2.0 |
| Serial Interface | 1 x RS485 |
| Approvals | |
| RoHS | Compliant |
| c(UL)us | Yes |
| FCC | Yes |
| CE | Compliant |
| Packaging Information | |
| Package Contents | 1 - DVR 1 - Hard Disk Data Cable 1 - Hard Disk Power Cable 1 - Power Adapter 4 - Screws 1 - Mouse 1 - User Manual |
| Product Weight | 2.42 lbs [1.1 kg] |
