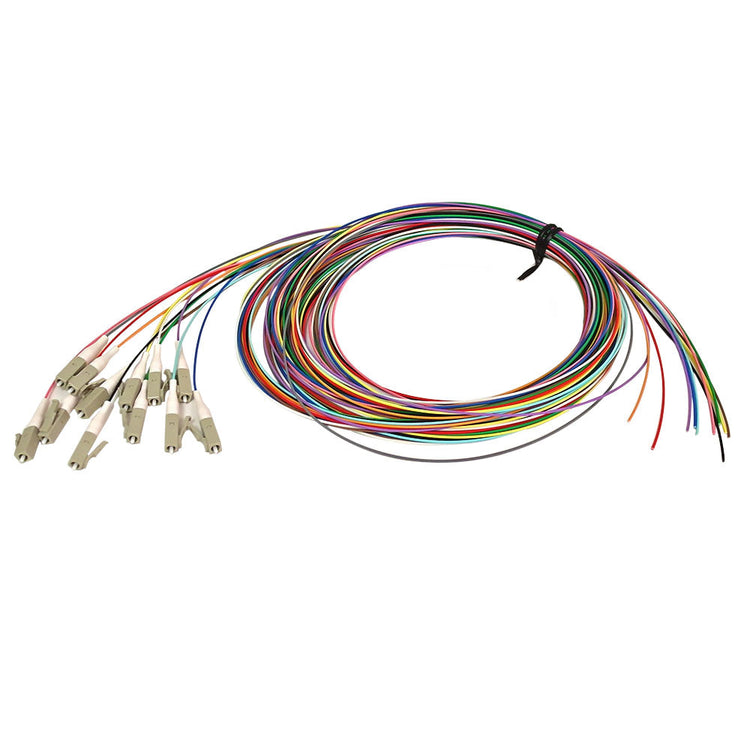

These 50 micron (OM3) fiber optic pigtails have terminated LC fiber optic connectors on one side and are un-terminated on the other side. The un-terminated ends are meant to be stripped and fusion spliced to single fibers of a multi-strand fiber trunk cable.
Physical Characteristics |
Cable Length |
3m [9.84 foot] |
Color |
Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Rose, Aqua |
Cable Diameter |
900 micron |
Fiber Size |
50/125 micron |
Fiber Type |
Multimode |
Glass Manufacturer |
Corning Glass |
Connector Ferrules |
Ceramic |
Fiber Classification |
OM3 |
Jacket Rating |
Low Smoke Zero Halogen (LSZH) |
Connector(s) |
Connector A |
1 - LC/PC Simplex Male |
Connector B |
Un-Terminated |
Performance |
Insertion Loss |
Ā¹0.3db @ 1300nm |
Speed |
10 Gbps |
Environmental |
RoHS |
Yes |
Conflict Minerals |
Yes |
Packaging Information |
Package Quantity |
1 Pack of 12 Cables |
Product Weight |
0.2 lbs [0.09kg] |
Warranty Information |
Warranty |
Limited Lifetime |
