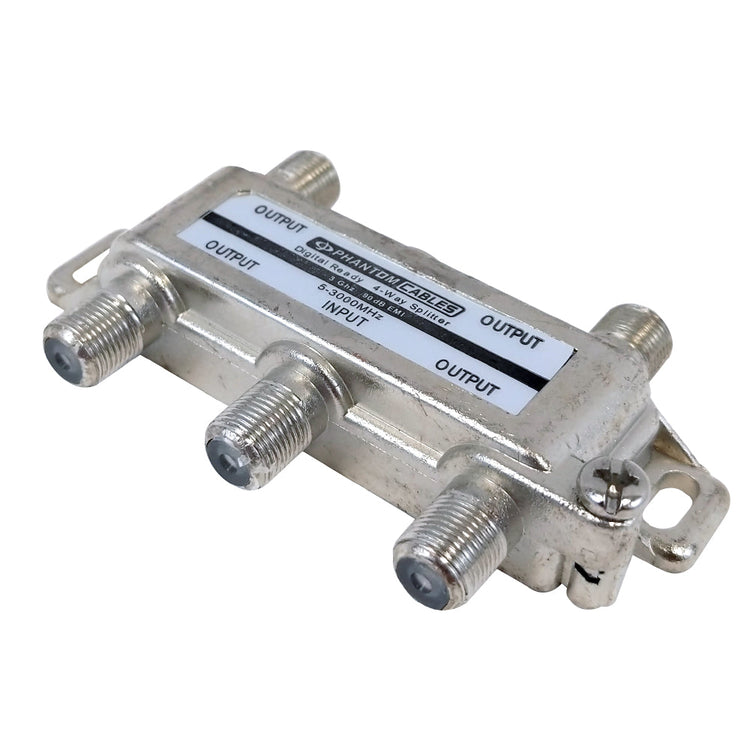

This digital splitter has a F-Type female input on one side and four F-Type female outputs on the other side. It is typically used to split broadband or CATV 5-3000MHz 75ā¦ sources such as hybrid distribution networks, HDTV, voice, data, modem and digital converter applications to dual outputs.
| Physical Characteristics | |
|---|---|
| Color | Silver |
| Contacts | Gold-Plated Beryllium-Copper Two-Prong |
| Housing | Metal Enclosure |
| Shielding | EMI-RFI |
| Circuitry | High-Performance Printed Board |
| Performance | |
| Frequency | 3GHz |
| Impedance | 75ā¦ |
| Amplitude | 90dB (min) |
| Loss at 1GHz | 8.2dB |
| Loss at 3GHz | 13.0dB |
| Mounting Holes | 2 |
| Connector(s) | |
| Input | 1 x F-Type Female input |
| Output | 4 x F-Type Female output |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 - 3GHz 90dB Digital Splitters 4-Way with Plastic Caps |
| Product Weight | 0.1 lbs [0.1kg] |
| Package Weight | 0.2 lbs [0.1kg] |
2-YEAR WARRANTY
Infinite Cables Inc. offers a 2-year warranty on selected Power Adapters, NVR/DVR's, network switches, PoE products and all video boxes to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Weight | |
| MB-TVD3-14 | 0.2 lb |
