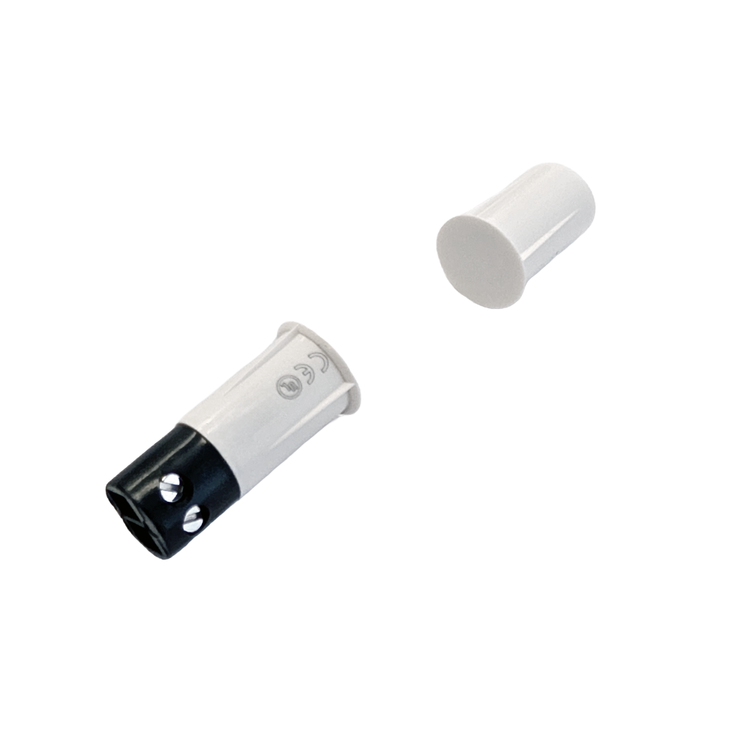

This recessed mounted contact sensor is a hardwired security solution designed to provide discreet and reliable protection for residential or commercial space. It embeds directly into doors or windows, which offers a clean install with hidden profile that won't disrupt your interior decor while preventing sensor tampering.
This sensor operates on a Normally Open (N/O) reed switch configuration for a standard closed-loop security system, meaning the circuit remains closed when the door or window is shut, triggering an alarm instantly if the connection is broken.
Features:
| Physical Characteristics | |
|---|---|
| Color | White |
| Dimensions | 23.5 x 11mm |
| Loop Type | Closed |
| Reed Form | N/O (Normally Open) |
| Closed Gap | 3/4" (19mm) |
| Departure Gap | 0.82" (21mm) |
| Wiring Connection | Built-in Terminal Block |
| Maximum Initial Contact Resistance | 0.150 Ohm |
| Maximum Contact Rating | 10W |
| Maximum Switching Voltage | 100 VDC/VAC |
| Maximum Switching Current | 0.5A |
| Wire Range | #20~#24AWG |
| Approvals | |
| c(UL)us | Compliant |
| Environmental | |
| RoHS | Compliant |
| CE | Compliant |
| Packaging Information | |
| Package Quantity | 10x Contacts 10x Magnets |
| Product Weight | 0.13 lbs |
