Overview

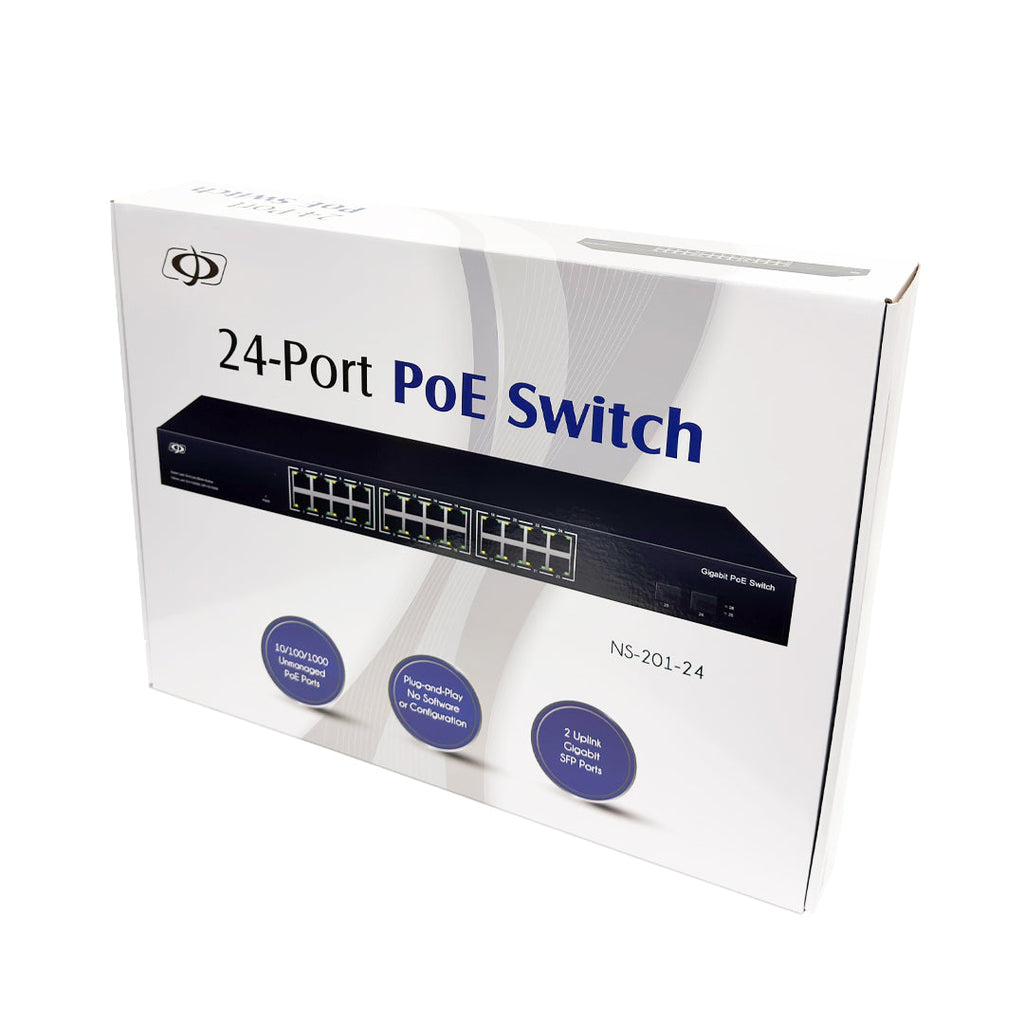

This is a 24+2-port gigabit Ethernet switch, providing 24x 10/100/1000Mbps PoE+ ports and two SFP ports. Ā The switch provides power and network to PoE+ compatible devices such as access points, CCTV cameras, voice over IP phone, etc., eliminating the need to power the devices separately.
Features
- 24 x 10/100/1000M unmanaged PoE+ ports - IEEE802.3af/at
- Ports 1-24 supportsĀ IEEE802.3af/at - Max. 30W
- 2Ā x Uplink Gigabit SFP port
- Internal power supply
- Support auto MDI/MDIX
- Network Topology: Star/Bus/Tree Topology
- Solid high-strength metal shell
Ā Ā Ā
Ā
Application
Specifications
| Physical Characteristics | ||||
|---|---|---|---|---|
| Dimensions | 440 x 44 x 280 mm | |||
| Shell | Metal Material | |||
| Height | 1U | |||
| Operating Temperature | -10Ā°C to 50Ā°C | |||
| Storage Temperature | -40Ā°C to 70Ā°C | |||
| Operating Humidity / Storage Humidity |
5% to 95% (no condensation) | |||
| Thermal Methods | Fan cooling | |||
| Power Supply | 100 to 240 VAC, 50/60 Hz |
|||
| Total Power consumption | ā¤400W | |||
| Main board power | <15W | |||
| Ports | 24 x Gigabit PoE+ ports | |||
| Uplink Ports | 2 x Gigabit SFP fiber optical port | |||
| Port Type | RJ45 port, Full duplex, MDI/MDI-X adaptive | |||
| PoE Power Supply |
PoE Standard: IEEE 802.3af, IEEE 802.3at PoE Power Pin: Support 4-core power supply, and Ethernet cable 1/2+/3/6- provide power supply. PoE Port: Ports 1 to 24Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā PoE Output: 52V/0.6A Max. Maximum Port Power: 30 W PoE Power Budget: 375 WĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā SFP Port Module: 3.3V/ 300mA |
|||
| Cable type & Transmission Distance |
Twisted-pair: 0-100m SinglemodeĀ Optical Fiber: 20/40/60/80/100km Multimode Optical Fiber: 550m |
|||
| Mounting Ears | Yes | |||
| Network Topology |
Ring Topology: Not support Star/ Bus/ Tree Topology: Support |
|||
| Performance | ||||
| Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z | |||
| MAC Address Table | 8K | |||
| Transfer Mode | Store-and-forward switching | |||
| Forwarding Delay | <10us | |||
| Switching Capacity | 52 Gbps | |||
| Packet Forwarding Rate | 38.6 Mpps | |||
| Internal Cache/ Buffer | 4.1 Mbits | |||
| MDI/MDIX | Support | |||
| Jumbo Frame | 10Kbytes | |||
| MTBF | 100000 hours | |||
| Surge protection of Ethernet port | IEC 61000-4-5 Level 4 (6/2KV) (10/700us) | |||
| DIP | IEC 61000-4-11 Level 3 (10V) | |||
| ESD | IEC 61000-4-2 Level 4 (8K/15K) | |||
| Free Fall | 0.5m | |||
| SFP Compatibility | ||||
| TR-SFP-1G-LXG | 1000base-LX SFP 1310nm SM LC Transceiver, 10km | |||
| TR-SFP-1G-SXG | 1000base-SX SFP 850nm MM LC Transceiver, 500m | |||
| TR-GLC-T | CiscoĀ® GLC-T Compatible 1000BASE-T SFP Copper RJ45 Transceiver | |||
|
Approval |
||||
| c(ETL)us |
Yes | |||
| Environmental | ||||
| RoHS | Yes | |||
| FCC, CE | Yes | |||
| Packaging Information | ||||
| Package Quantity | 1 | |||
| Product Weight | 8.25 lbs [3.74kg] | |||
