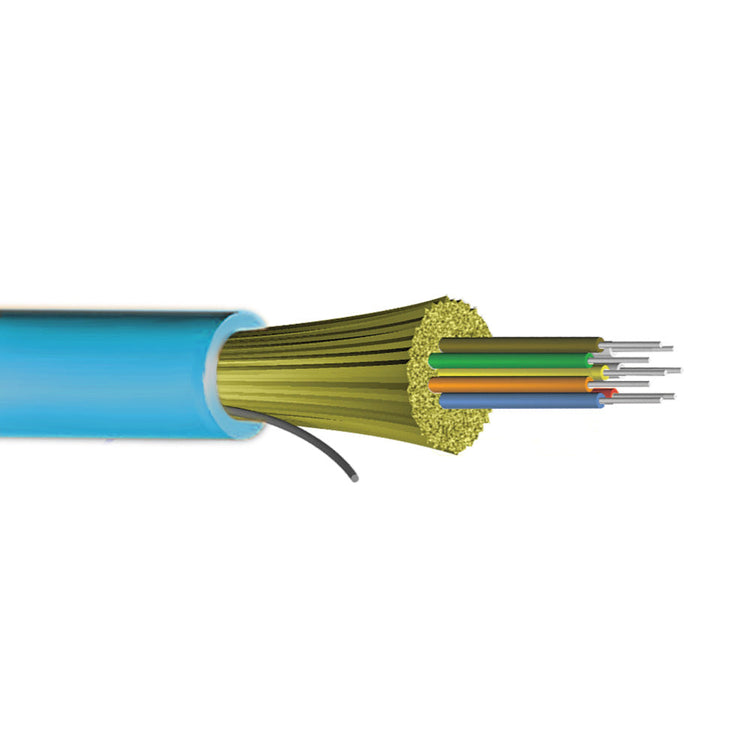

This bulk 24-strand OM3 fiber cable is indoor/outdoor riser rated and has a tight buffer construction. It is OFNR rated for riser and general inside plant environments. It also has a UV stabilizer for protection against exposure to the sun plus an anti-fungus protection for use in underground applications.
This cable can be used in all environments: riser, general inside plant and outside plant.
Tested to meet or exceed EIA/TIA 568-A / GR-409-CORE and ICEA-S-104-696. Approved for mining applications. RoHS/REACH Compliant. Physical Characteristics |
Color | Aqua |
Fiber Optic Type | OM3 50 micron Multimode Riser Indoor/Outdoor Tight Buffered Cable |
Fiber Count | 24-Strand |
Glass Fiber | Corning ClearCurve |
Sub Unit Diameter | 900 Micron |
Nominal Diameter | 8.7mm |
Tension(Installation) | 300 lbs |
Tension(Long Term) | 90 lbs |
Bending Radius(Installation) | 13.1cm |
Bending Radius(Long Term) | 8.7cm |
Operating Temperature | -40℃ ~ +75℃ |
Storage Temperature | -40℃ ~ +75℃ |
Installation | -20℃ ~ +75℃ |
Attenuation Range | @850nm 3.0dB/km @1300nm 1.2dB/km |
Bandwidth Range | @850nm > 1500 MHz/km @1300nm > 500 MHz/km |
Gigabit Ethernet Min. Link Distance | 850nm = 1000 1300nm = 500 |
10 Gigabit Ethernet Min. Link Distance | 850nm = 300 |
Fire Rating | OFNR |
UV Stabilizer | Yes |
Anti-Fungus Protection | Yes |
Certification(s) |
ETL | Yes |
c(ETL) | Yes |
Product Support |
RoHS | Yes |
Country of Origin | USA |
Packaging Information |
Package Quantity | 1 |
Product Weight | 0.19 lbs [0.08 kg] |
