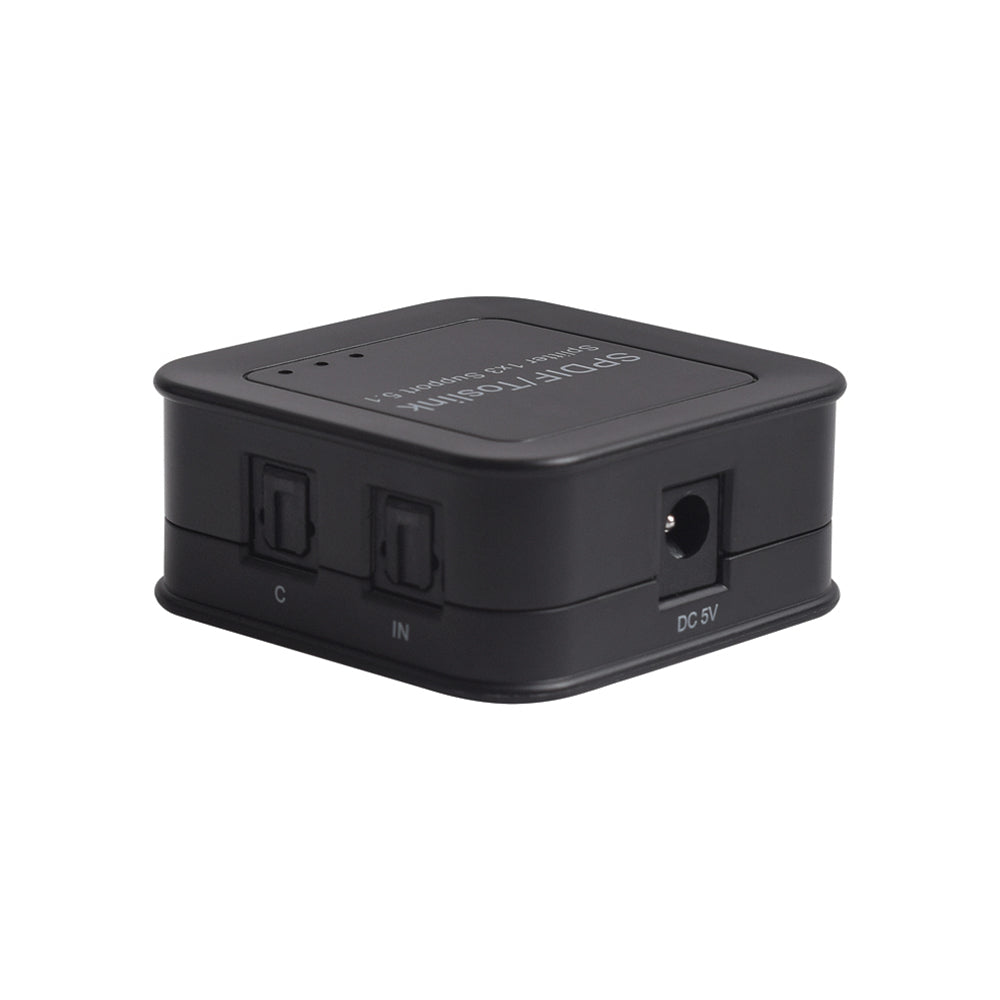

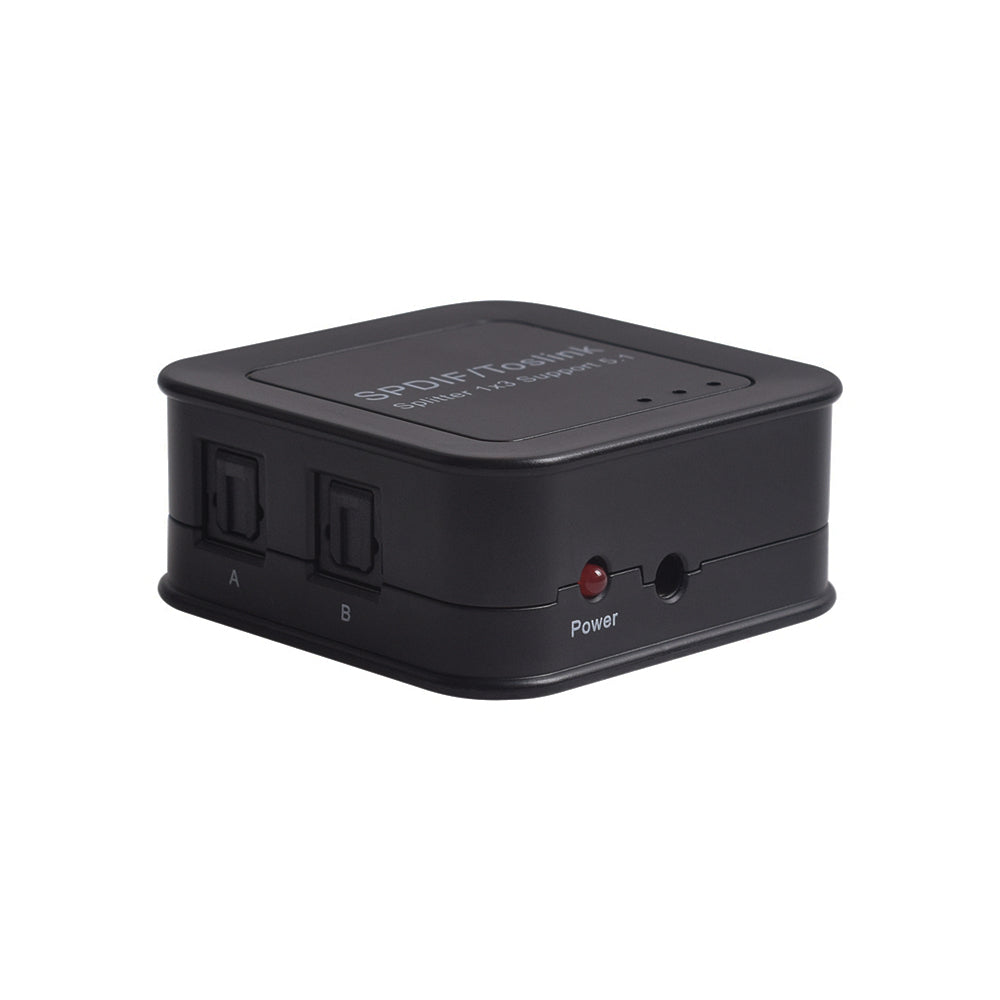

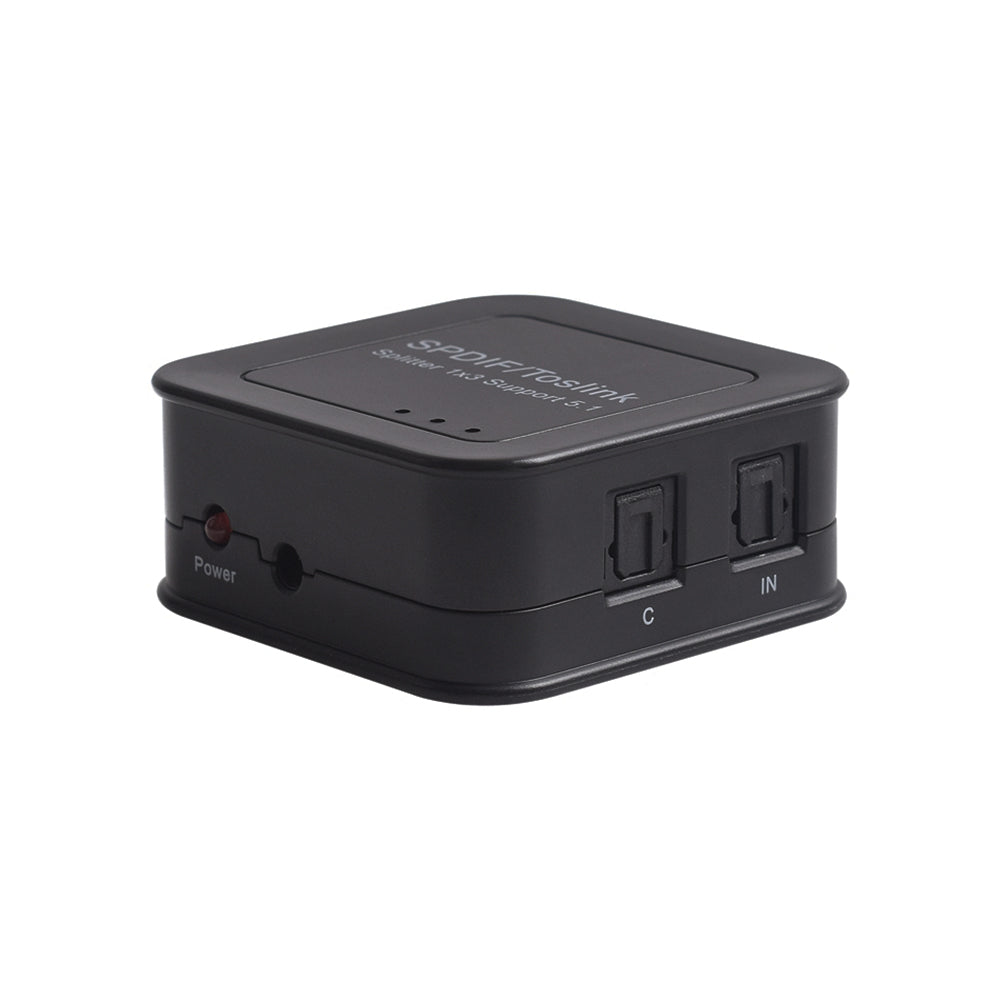

This 1x3 Toslink/Optical audio splitter connects and distributes one digital optical SPDIF Toslink source to three amplifiers.
Features
- One way of optical fiber signal input splitter to three sets of SPDIF/Toslink signal receiving device
- Audio format support: LPCM2.0/DTS/Dolby-AC3
- Support signal retiming
- Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 40m
- Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine
- No loss of quality
- Installs in minutes
- Needs DC5V/500mA power supply
|
Physical Characteristics
|
| Color |
Black |
| Housing |
Plastic |
| Dimensions (L x W x H) |
54 x 54 x 23.5mm
|
| Operating Temperature |
0 to +40 degree C |
| Operating Humidity Range |
5 to 90%RH (No Condensation)
|
|
Power
|
Power Adapter Format
(Not included) |
Input: AC (50HZ, 60HZ) 100V-240V
Output: DC5V/500mA |
| Max Working Current |
100mA |
| Power Barrel Size |
5.5 x 2.1mm |
|
Performance
|
| Supported Audio Format |
LPCM2.0/DTS/Dolby-AC3 |
| Peak Wavelength |
650nm |
| Max Baud Rate |
16Mbps |
| Output Cable Distance |
?40m (Use the optical fiber cable loss less the 0.2Db/m) |
|
Environmental
|
| RoHS |
Compliant |
|
Certification(s)
|
| CE |
Compliant |
| FCC |
Compliant |
|
Packaging Information
|
| Package Quantity |
1 |
| Product Weight |
0.07 lbs [0.03kg] |
|
Contents
|
| Included in Package |

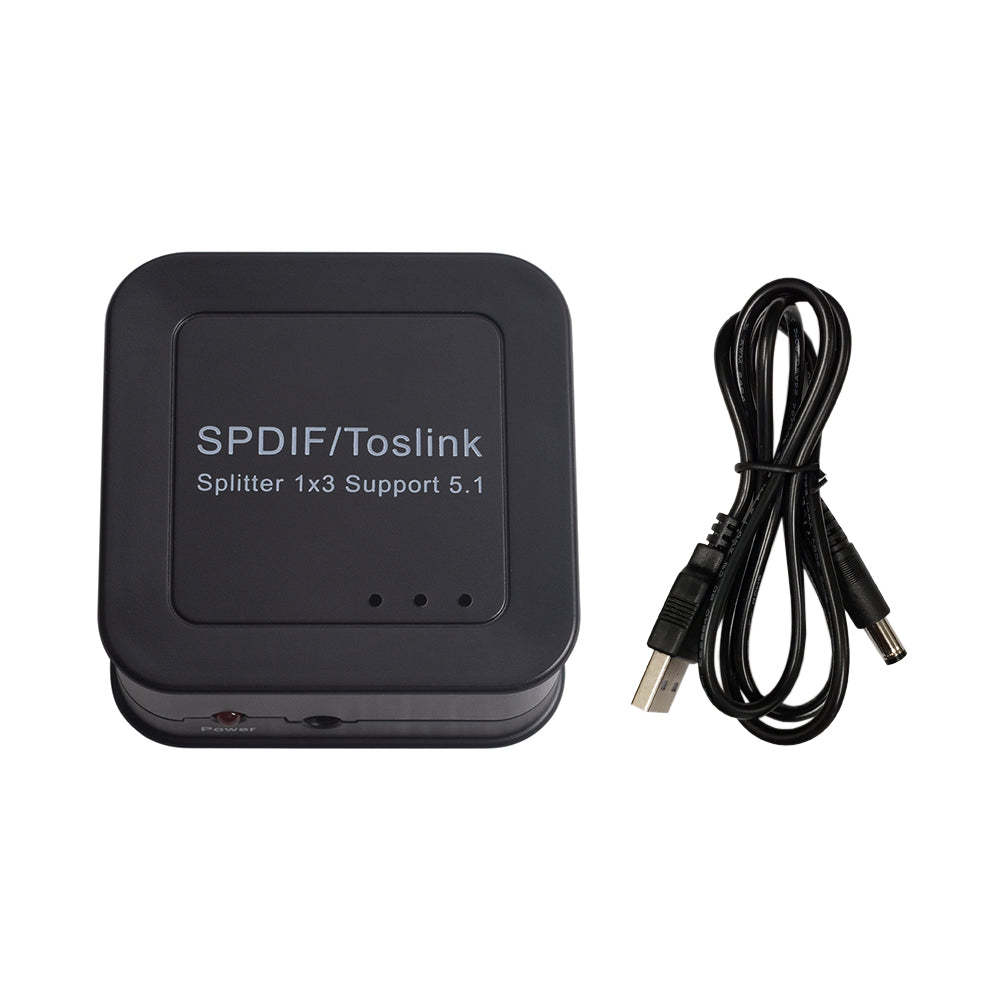

1 - Toslink/Optical Digital Audio Splitter |
|
1 - USB Power Cable |
|
1 - Manual |
