Overview

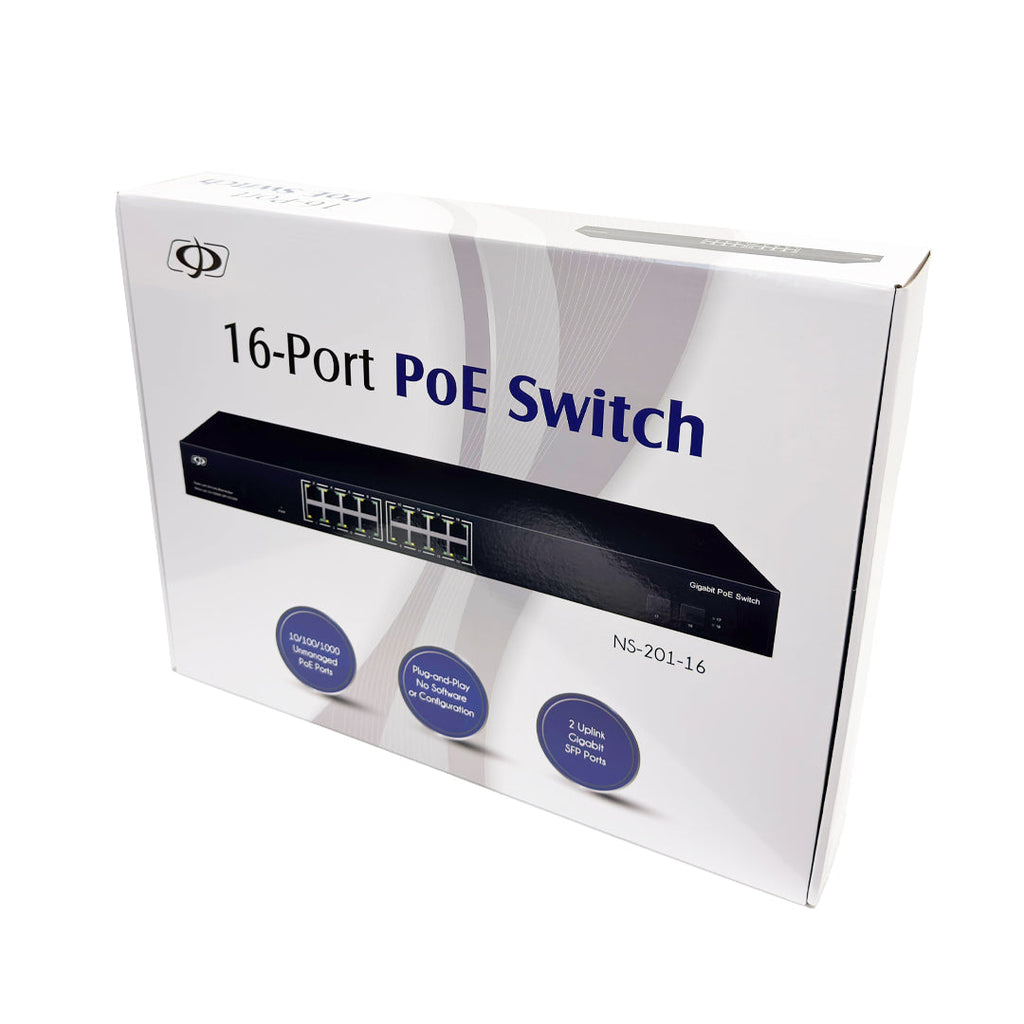

This is a 16+2-port gigabit Ethernet switch, providing 16x 10/100/1000Mbps PoE+ ports and two SFP ports. Ā The switch provides power and network to PoE+ compatible devices such as access points, CCTV cameras, voice over IP phone, etc., eliminating the need to power the devices separately.
Features
- 16 x 10/100/1000M unmanaged PoE+ ports - IEEE802.3af/at
- Ports 1-16 supportsĀ IEEE802.3af/at - Max. 30W
- 2Ā x Uplink Gigabit SFP port
- Internal power supply
- Support auto MDI/MDIX
- Network Topology: Star/Bus/Tree Topology
- Solid high-strength metal shell
Ā Ā Ā
Ā
Application
Specifications
| Physical Characteristics | ||||
|---|---|---|---|---|
| Dimensions | 440 x 44 x 280 mm | |||
| Shell | Metal Material | |||
| Height | 1U | |||
| Operating Temperature | -10Ā°C to 50Ā°C | |||
| Storage Temperature | -40Ā°C to 70Ā°C | |||
| Operating Humidity / Storage Humidity |
5% to 95% (no condensation) | |||
| Thermal Methods | Fan cooling | |||
| Power Supply | 100 - 240 VAC ~ 50/60Hz | |||
| Total Power consumption | ā¤300W | |||
| Main board power | <15W | |||
| Ports | 16 x Gigabit PoE+ ports | |||
| Uplink Ports | 2 x Gigabit SFP fiber optical port | |||
| Port Type | RJ45 port, Full duplex, MDI/MDI-X adaptive | |||
| PoE Power Supply |
PoE Standard: IEEE 802.3af, IEEE 802.3at |
|||
| Cable type & Transmission Distance |
Twisted-pair: 0-100m SinglemodeĀ Optical Fiber: 20/40/60/80/100km Multimode Optical Fiber: 550m |
|||
| Mounting Ears | Yes | |||
| Network Topology |
Ring Topology: Not support Star/ Bus/ Tree Topology: Support |
|||
| Performance | ||||
| Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z | |||
| MAC Address Table | 8K | |||
| Transfer Mode | Store-and-forward switching | |||
| Forwarding Delay | <10us | |||
| Switching Capacity | 52 Gbps | |||
| Packet Forwarding Rate | 26.78 Mpps | |||
| Internal Cache/Buffer | 4.1 Mbits | |||
| MDI/MDIX | Support | |||
| Jumbo Frame | 10Kbytes | |||
| MTBF | 100000 hours | |||
| Surge protection of Ethernet port | IEC 61000-4-5 Level 4 (6/2KV) (10/700us) | |||
| DIP | IEC 61000-4-11 Level 3 (10V) | |||
| ESD | IEC 61000-4-2 Level 4 (8K/15K) | |||
| Free Fall | 0.5m | |||
| SFP Compatibility | ||||
| TR-SFP-1G-LXG | 1000base-LX SFP 1310nm SM LC Transceiver, 10km | |||
| TR-SFP-1G-SXG | 1000base-SX SFP 850nm MM LC Transceiver, 500m | |||
| TR-GLC-T | CiscoĀ® GLC-T Compatible 1000BASE-T SFP Copper RJ45 Transceiver | |||
|
Approval |
||||
| c(ETL)us |
Yes | |||
| Environmental | ||||
| RoHS | Yes | |||
| FCC, CE | Yes | |||
| Packaging Information | ||||
| Package Quantity | 1 | |||
| Product Weight | 7.78 lbs [3.53kg] | |||
2-YEAR WARRANTY
Infinite Cables Inc. offers a 2-year warranty on selected Power Adapters, NVR/DVR's, network switches, PoE products and all video boxes to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Weight | |
| NS-201-16 | 8.0 lb |
