12-Fiber Multimode OM3 MPO Female no guide pins to MPO Female no guide pins - OFNP Plenum

Fiber Optic MPO/MTP CablesSKU: FO-1310A-03P

Length: 1m
Type: Method A Polarity
Sale price$47.85 USD
In stock

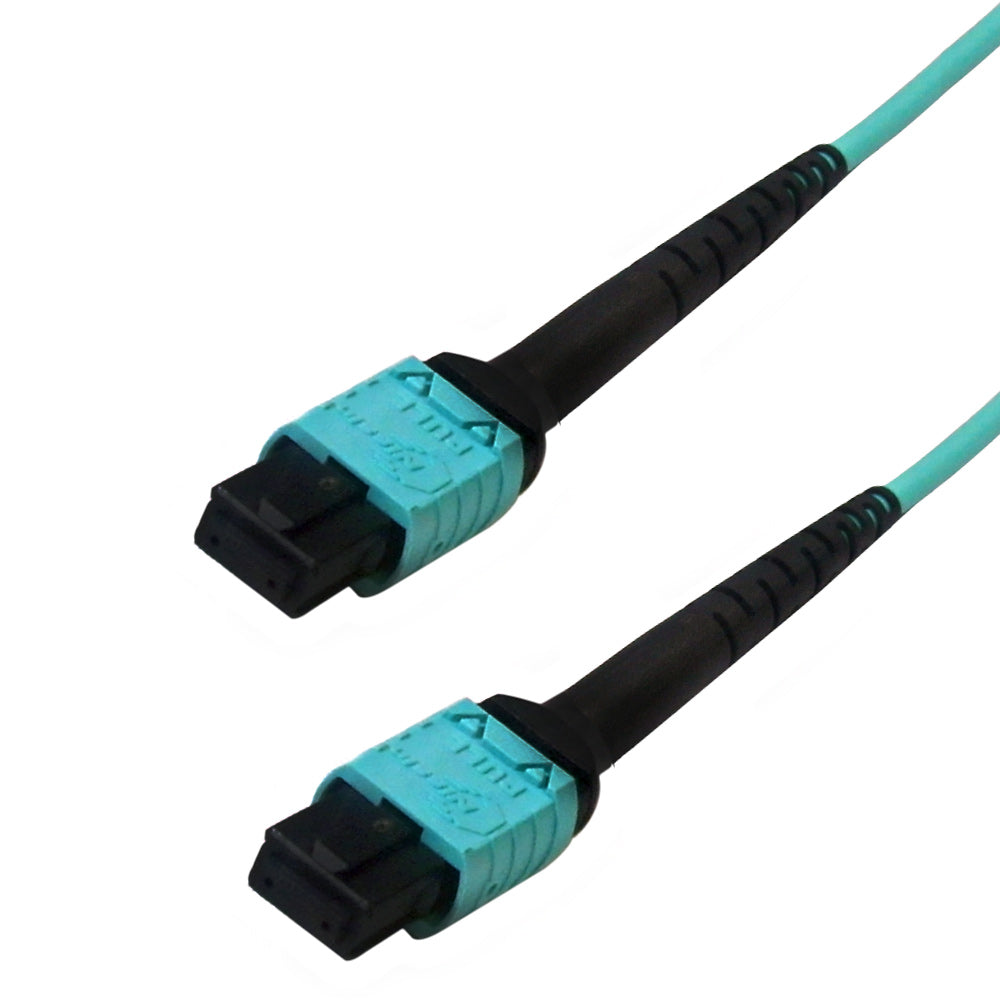

This multimode OM3 fiber optic MPO trunk cable is made with Corning glass fiber and consists of a MPO/MTP female connector on both ends. It is used in high bandwidth datacenter applications connecting switches or MPO/MTP cassettes.

MPO Polarity, Method A vs. Method B

MPO/MTP cables can be conpd in a number of different polarities, method A, method B or method C.

Method A would be considered straight through, position 1-1, 2-2, 3-3 etc.

Method B is considered cross over, position 1-12, 2-11, 3-10 etc.

Method C would be the least common and is considered a paired cross over, position 1-2, 2-1, 3-4, 4-3 etc.

Infinite Cables stocks method A and method B cables. Method C cables are available by special order. The diagrams below further highlight method A and method B polarities.

Method A

Method B

Physical Characteristics
Color Aqua
Cable Diameter 3mm
Fiber Count 12 Fibers
Fiber Type Multimode OM3 50/125 Micron
Polarity Method A / Method B
Glass Manufacturer Corning Glass
Jacket Rating Plenum (OFNP)
Connector A 1 - 12-Position MPO Female (no guide pins) Elite Connectors
Connector B 1 - 12-Position MPO/PC Female (no guide pins) Elite Connectors
Insertion Loss ‚ȧ0.35 dB
Return Loss ‚Č•20db
Testing 100% IL, RL and Interferometer Tested
RoHS Yes
UL UL Listed Cable
Packaging Information
Warranty Limited Lifetime
Cable Weights
3ft - 1m 6ft - 2m 10ft - 3m 15ft - 5m 23ft - 7m 30ft - 10m 50ft - 15m 65ft - 20m 80ft - 25m 100ft - 30m 115ft - 35m 131ft - 40m 148ft - 45m 164ft - 50m
0.04 lbs 0.07 lbs 0.09 lbs 0.13 lbs 0.18 lbs 0.23 lbs 0.35 lbs 0.47 lbs 0.56 lbs 0.66 lbs 0.76 lbs 0.86 lbs 0.98 lbs 1.08 lbs
