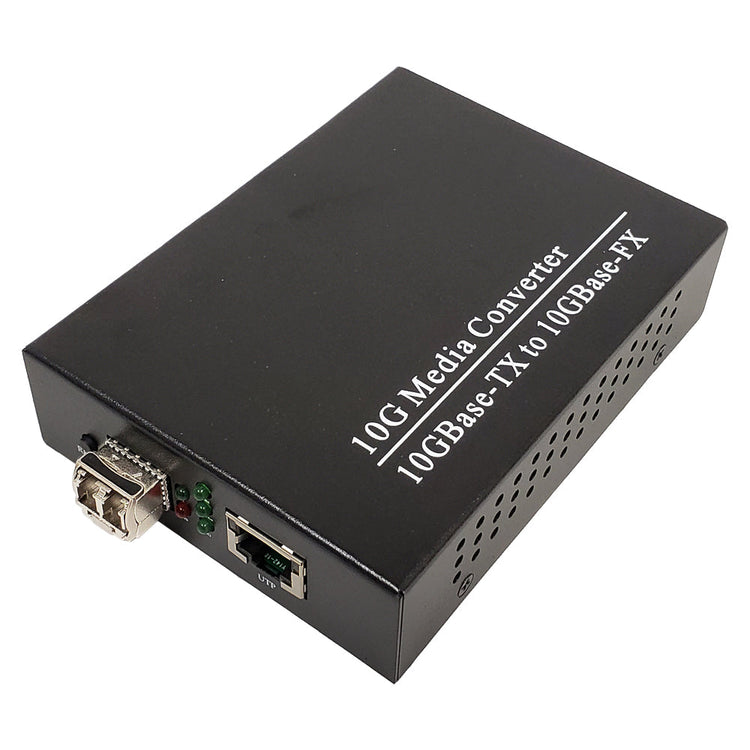

This multimode fiber optic media converter can extend a 10G Ethernet connection up to 300m over a multimode LC fiber optic cable. The converter can be used as a standalone unit or in pairs.
Features
| Physical Characteristics | ||
|---|---|---|
| Color | Black | |
| Dimensions | 118mm x 86mm x 27mm (L x W x H) | |
| Housing | Metal | |
| Operating Temperature | 0ā ~ 50ā | |
| Relative Humidity | 5% to 95% (non-condensation) | |
| Standards | IEEE 802.3u100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3an 10GBASE-T IEEE 802.3ae 10Gbps Ethernet IEEE 802.3x full-duplex flow control |
|
| Power | ||
| Power Supply | 12V DC, 1A Power Supply | |
| Power Consumption | 3.75 watts / 12.8 BTU per hour max. | |
| Connectors | ||
| Fiber Connector | LC | |
| Ethernet Connector | RJ45 UTP | |
| Performance | ||
| Network Cables | 10G/5G/2.5G/1G/100MBASE-T: -10G--Cat6a/7 -5G--Cat6/6a/7 -1G/2.5G--Cat5e/6/6a/7 -100M--Cat5/5e/6/6a/7 -Cat5/5e/6/6a/7 UTP cable (100 meters, max.) -EIA/TIA-568 100-ohm STP (100 meters, max.) 10GBASE-LR/SR/BX: -50/125Ć1/4m or 62.5/125Ć1/4m multi-mode fiber optic cable, up to 300m |
|
| Referenced Transmission Distance | Multimode - 300m |
|
| Data Forward Rate | 10G | |
| Features | High Performance 10Gbps Ethernet Capacity Robust Protection Low Power Consumption |
|
| Switch Processing | Store and Forward | |
| ESD Protection | 6KV DC | |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
|
| Fabric | 20Gbps | |
| Throughput (packet per second) | 2.48Mpps@64bytes | |
| Address Table | 9K entries, automatic source address learning and aging | |
| Jumbo Frame | 16K | |
| Copper Interface | 1 x 10G/5G/2.5G/1G/100BASE-T RJ45 Auto-MDI/MDI-X, auto-negotiation |
|
| Fiber Optic Interface | 1 x 10GBASE-X R SFP+ interface | |
| LED | POWER 100M 1000M 10G LINK/ACT Fiber |
|
| Certifications | ||
| CE | Compliant | |
| FCC Part 15 Class A | Compliant | |
| Packaging Information | ||
| Package Quantity | 1 | |
| Product Weight | 1.7 lbs [0.8kg] | |
| Warranty Information | ||
| Warranty | 2 Years | |
