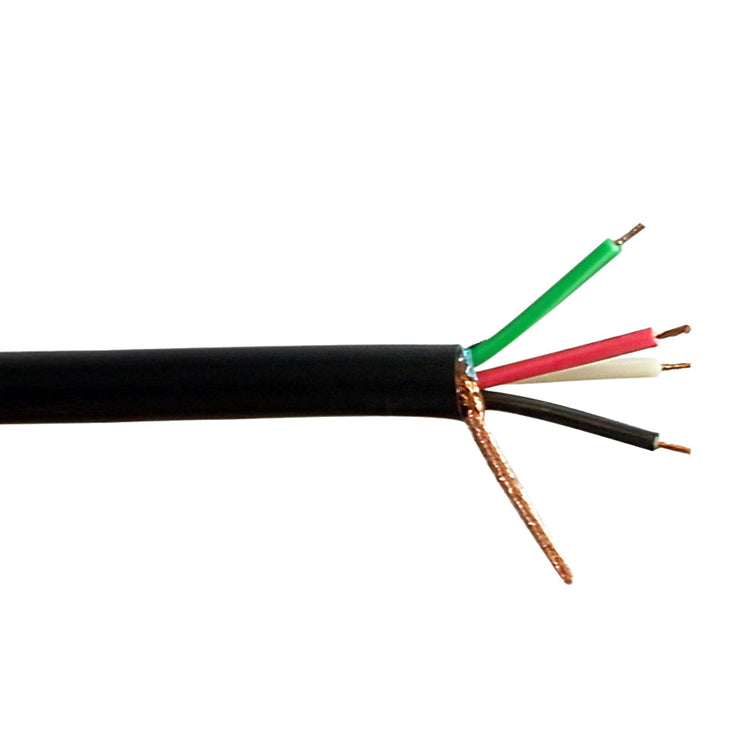

This bulk riser rated DMX cable is 1000 feet in length and consists of 2 pairs of 22AWG stranded wires. It is typically terminated with XLR 3 pin or 5 pin connectors and used to manufacture cables for controlling stage lighting and effects.
| Physical Characteristics | |||
|---|---|---|---|
| Cable Length | 1000 foot [305m] | ||
| Color | Black | ||
| Cable Diameter | 7.10 mm | ||
| Number of Pairs | 2 Pairs | ||
| Wire Gauge | 22 AWG Standard | ||
| Conductor Material | 100% Bare Copper | ||
| Jacket Material | PVC - Polyvinyl Chloride | ||
| Jacket Rating | CMR/FT4 | ||
| Cable Shielding | 100% Aluminum Foil Shield 85% Braid | ||
| Temperature Rating | -20℃ ~ 75℃ | ||
| Jacket Average Thickness | 0.76mm | ||
| Jacket Minimum Thickness | 0.68mm | ||
| Insulation | HDPE | ||
| Insulation Average Thickness | 0.280mm | ||
| Insulation Minimum Thickness | 0.250mm | ||
| Insulation Diameter | 1.36±0.05mm | ||
| Assembly Diameter | 5.60±0.10mm | ||
| Twisted Pair Diameter | 2.72±0.10mm | ||
| Electrical Characteristics | |||
| Before Aging | Tensile Strength (Mpa): >=13.8 Elongation (%): >=100 | ||
| Aging Condition (℃ x hrs) | 100x168 | ||
| After Aging | Tensile Strength (Mpa): >=85% of unaged Elongation (%): >=50% of unaged | ||
| Performance | |||
| Impedance | 110 ohms +/- 15 | ||
| Capacitance | 41PF/M | ||
| Approvals | |||
| c(UL) | Compliant | ||
| Environmental | |||
| RoHS | Compliant | ||
| Packaging Information | |||
| Package Quantity | 1 | ||
| Product Weight | 51.50 lbs [23.36kg] | ||
