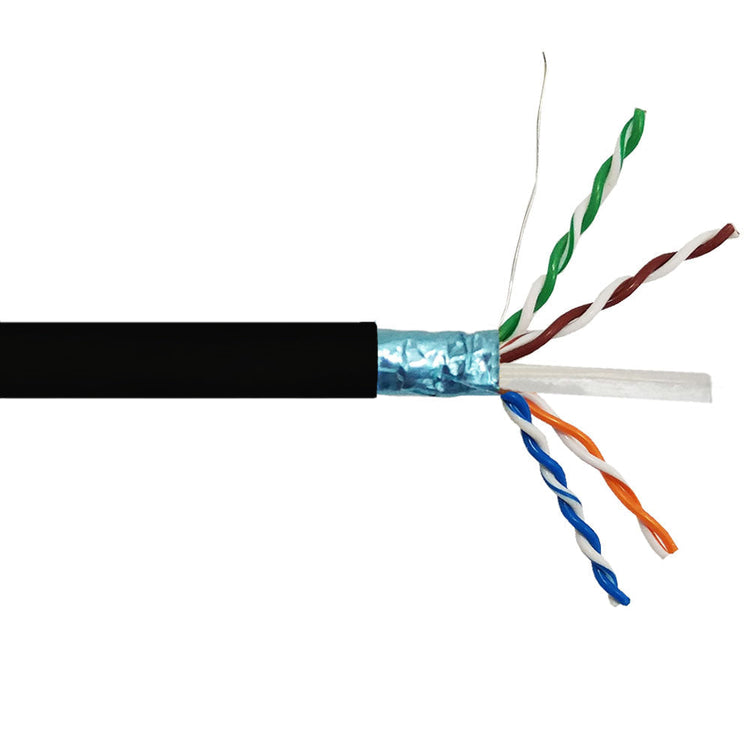

This bulk plenum rated Cat6a cable is 1000 feet in length and consists of 4 pairs of 23AWG solid wires with an overall foil shield. Ā It is typically used as in-wall premise wiring and terminated from a patch panel to a Cat6a jack.
![](https://cdn.shopify.com/s/files/1/0628/4404/3505/files/RoHS.png)
![](https://cdn.shopify.com/s/files/1/0628/4404/3505/files/culus.png)
Physical Characteristics
|
Cable Length |
1000 foot [305m] |
Color |
Black / Blue / White |
Number of Pairs |
4 Pairs 1.Brown * White/Brown 2.Blue * White/Blue 3.Orange * White/Orange 4.Green * White/Green |
Wire Gauge |
23 AWG Solid |
Conductor Material |
100% Bare Copper |
Conductor Size |
0.023 inches [0.585Ā±0.006mm] |
Insulation Outer Diameter |
0.044 inches [1.12Ā±0.05mm] |
Tape Drain Wire |
24AWG Solid Tinned Copper |
Jacket Material |
PVC - Polyvinyl Chloride |
Jacket Nominal Thickness |
0.0197 inches [0.50mm] |
Jacket Outer Diameter |
0.2756Ā±0.012 inches [7.0Ā±0.3mm] |
Jacket Rating |
CMP/FT6 [Plenum Rated] |
Cable Shielding |
Aluminum/Poly Tape 100% coverage with 25% overlapping
|
Separator |
SAMPĀ® FEP CROSSWEB |
Ripcord |
Kevlar |
Temperature Rating |
-20ā ~ +80ā |
Electrical Characteristics
|
Voltage |
30V |
Capacitance |
5.6nF/100m .Nom |
Characteristic Impedance |
1-100MHz,100Ā±15%;101-250MHz,100Ā±22%;251-550MHz,100Ā±25% |
Velocity of Propagation |
ā„65% |
DCRĀ Conductor |
9.38 Ohms/100m.Nom |
D-C Resistance Unbalance |
ā¦5% |
Approvals
|
c(UL)us |
Yes |
Environmental
|
RoHS |
Yes |
Packaging Information
|
Package Quantity |
1 |
Product Weight |
46.18 lbs [20.8kg] |
