Overview

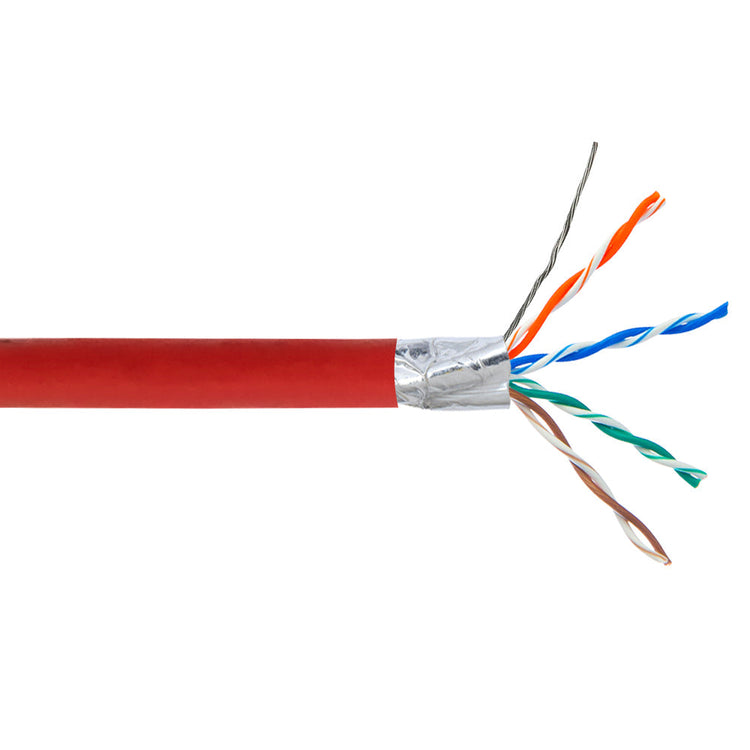

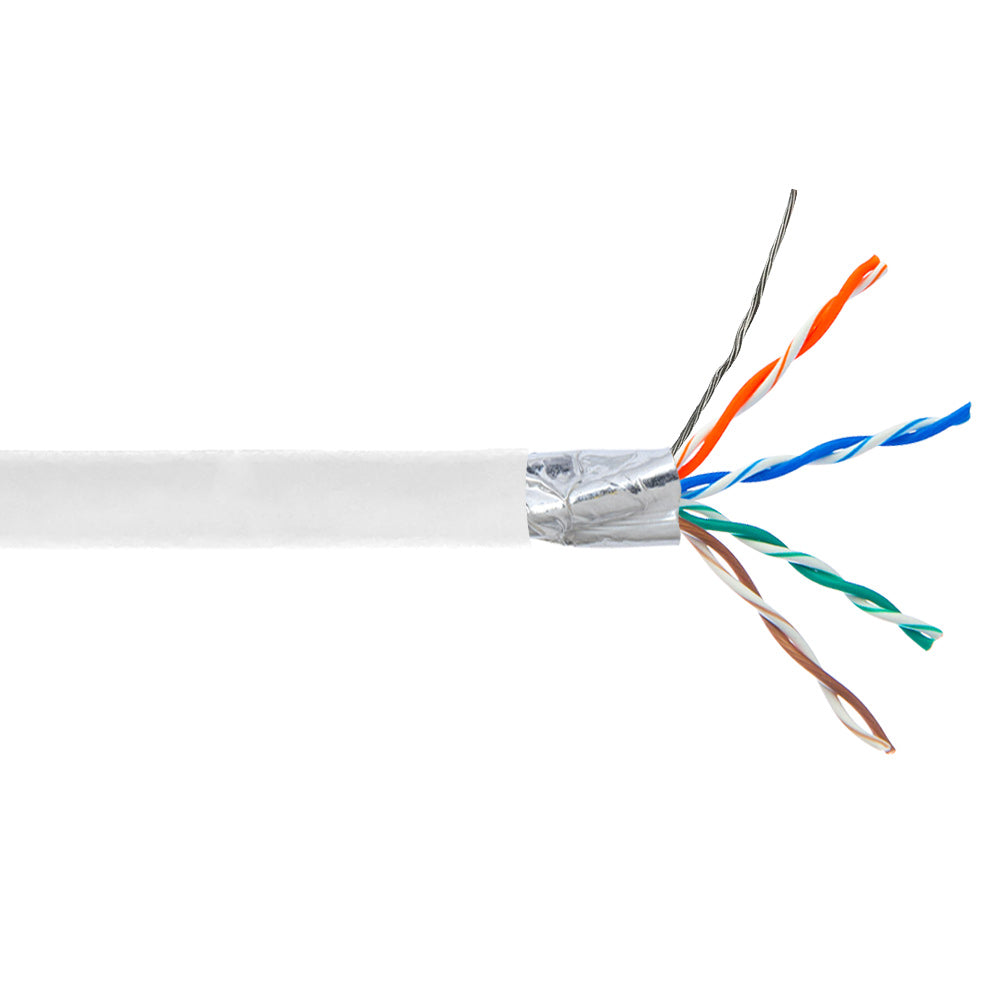

This bulk riser rated Cat6 cable is 1000 feet in length and consists of 4 pairs of 24AWG solid wires with an overall foil shield. It is typically used as in-wall premise wiring and terminated from a patch panel to a Cat6 jack. It is great for all high bandwidth applications such as high speed networks.
 |
100% Bare Copper Solid ConductorsThis cables is manufactured using high quality pure bare copper to ensure maximum conductivity, optimal performance and longest lifetime. The solid core is excellent for long distance transmission and suited for installations. Great for High Speed NetworksOur CAT6 bulk cable is the most practical and economical solution for all your networking applications, it provides 550 MHz of bandwidth, and offers high speed, uninterrupted connection. The Quality and Convenience You NeedThis cable comes in a pull box for easy pulling, it features color striped pairs for easy identification, and a rip cord for easy stripping. also it uses a shielded twisted pair (STP) structure to retain a high quality signal when passing near high voltage or power cables.
|
Application
Specifications
| Physical Characteristics | |
|---|---|
| Cable Length | 1000ft [305m] |
| Cable Diameter | 6.60 mm |
| Number of Pairs | 4 Pairs |
| Color of Pairs | White-Blue White-Green White-Orange White-Brown |
| Wire Gauge | 24AWG Solid |
| Conductor Material | 100% Bare Copper |
| Conductor Outer Diameter | 0.5 + 0.03mm |
| Jacket Material | PVC - Polyvinyl Chloride |
| Outer Jacket Diameter | 6.6 + 0.2mm |
| Outer Jacket Average Thickness | 0.55mm Above |
| Stranding Count & Diameter |
1/24mm |
| Jacket Rating | CMR/FT4 [Riser Rated] |
| Insulator Material | HD-PE |
| Insulator Diameter | 1.05 + 0.03mm |
| Insulator Average Thickness | 0.20 + 0.02mm |
| Cable Shielding | 100% Aluminum Foil Shield |
| Shielding AL/Pet Tape | 0.050 x 22mm |
| Shielding Drain Wire | 1/0.5mm (Tinned copper) |
| Rip Cord |
Yes - Nylon |
| Temperature Rating | 75ºC |
| Approvals | |
| UL | Yes |
| CSA | Yes |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
|
Product Weight |
30.9lbs [14kg] |
| SKU | Options | Weight |
| BK-C6SL-4BKS | Black | 31.0 lb |
| BK-C6SL-4BLS | Blue | 31.0 lb |
| BK-C6SL-4GNS | Green | 31.0 lb |
| BK-C6SL-4GYS | Grey | 31.0 lb |
| BK-C6SL-4RDS | Red | 31.0 lb |
| BK-C6SL-4WHS | White | 31.0 lb |
| BK-C6SL-4YLS | Yellow | 31.0 lb |
