Description

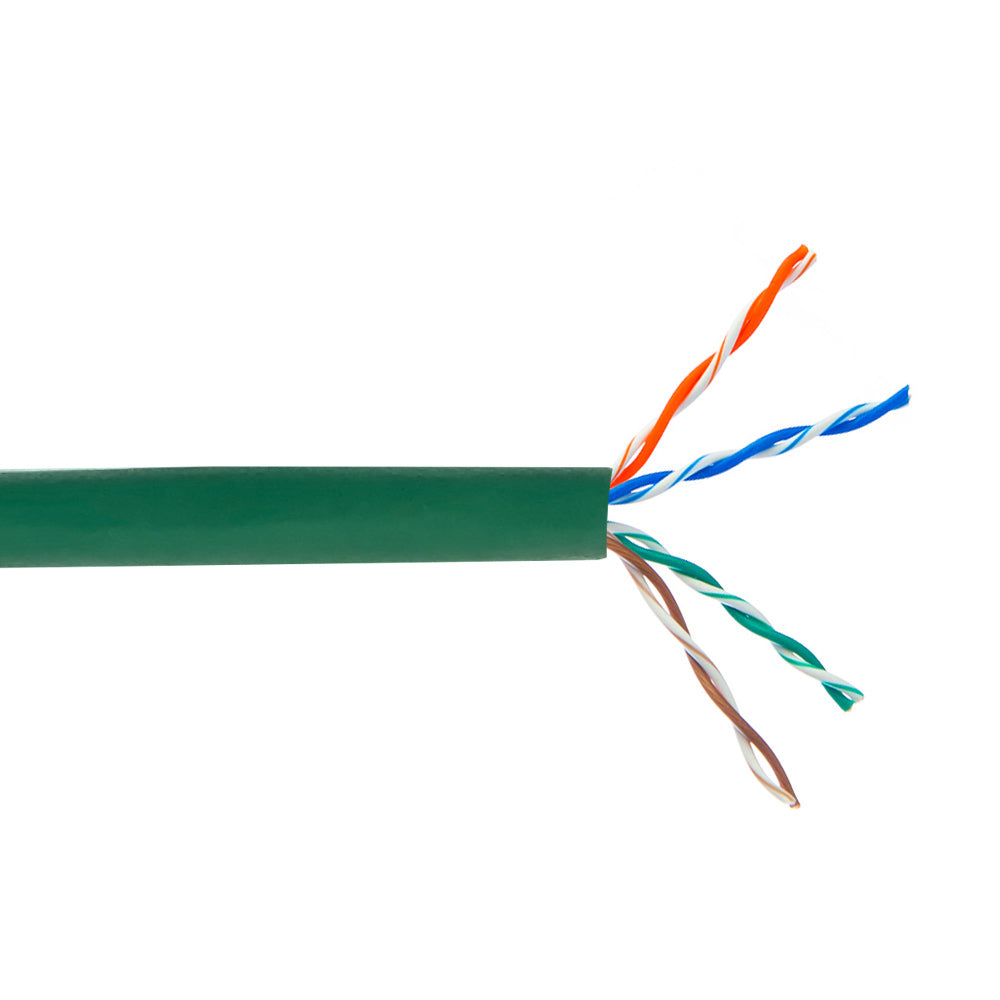

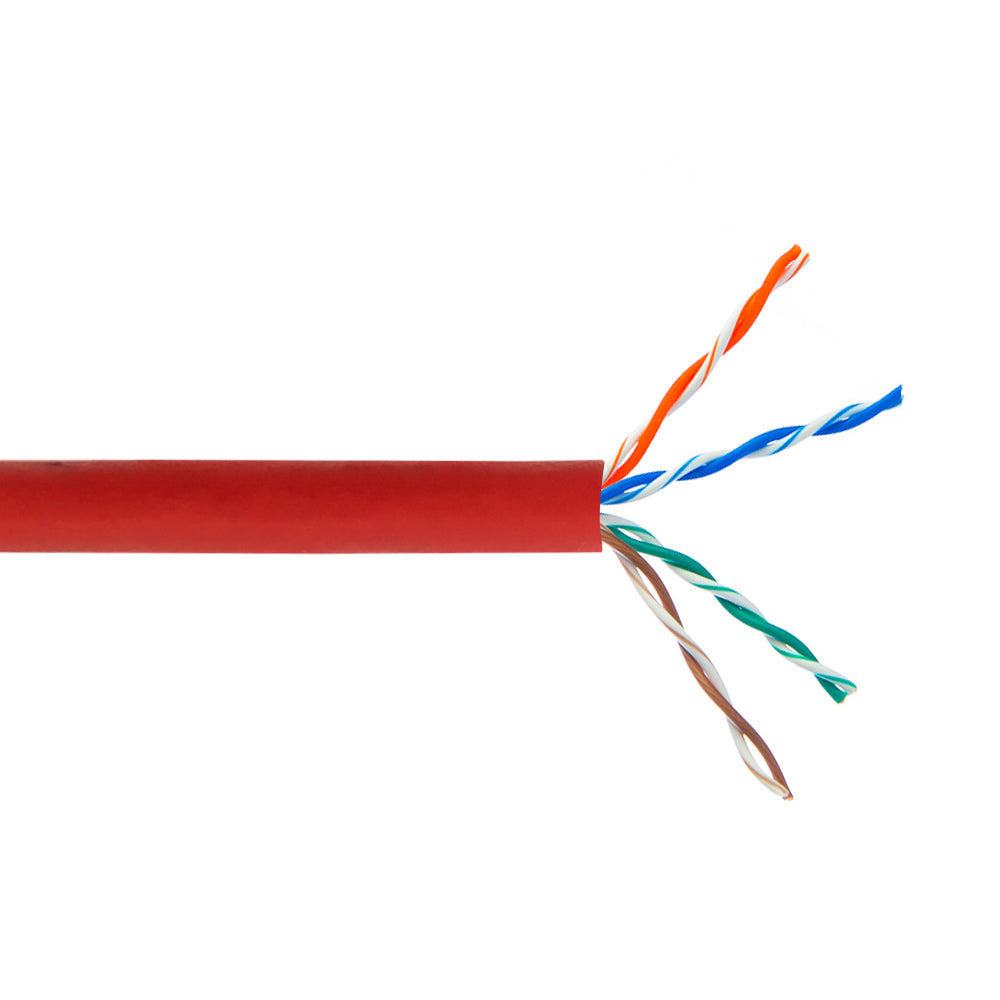

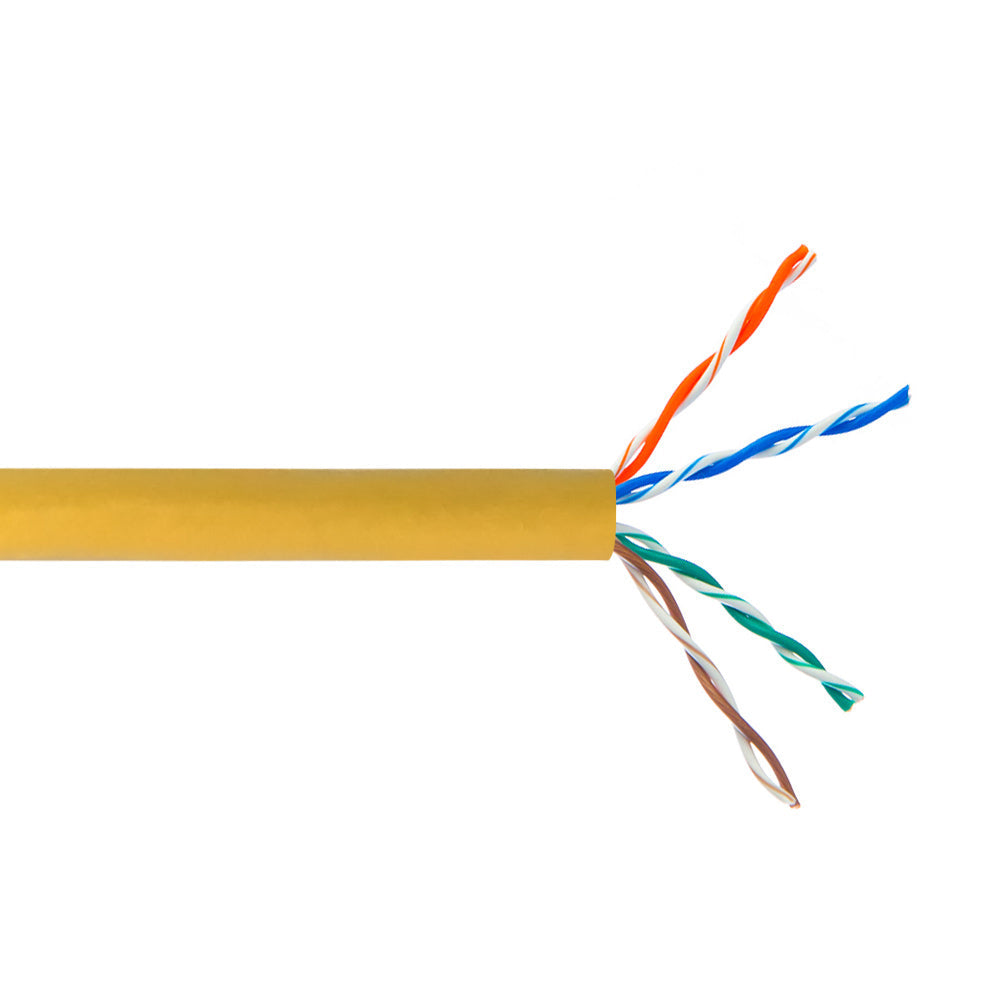

This bulk CAT5E plenum rated cable consists of 4 pairs of 24AWG solid bare copper wires. It is typically used in plenum environments as premise wiring and terminated from a patch panel to a CAT5E jack.
| Physical Characteristics | |
|---|---|
| Cable Length | 1000 foot [305m] |
| Cable Diameter | 5.0 mm |
| Wire Gauge | 24AWG Solid |
| Insulation | 0.90mm Color-coated PE * 4 Pairs |
| Conductor Material | 100% Bare Copper |
| Shielding | None |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMP [Plenum Rated] |
| Operating Temperature | -20ºC ~ 80ºC |
| Performance | |
| Frequency | 350MHz |
| Fluke® CAT6 Channel Test |
Yes |
| Fluke® CAT6 Permalink Test | Yes |
| Fluke® CAT6 Patch Cable Test | Yes |
| Approvals | |
| c(UL)us |
Yes |
| ISO/IEC 9001 |
Yes |
| ANSI/TIA-568.C.2 | Yes |
| Environmental | |
| RoHS | Yes |
| Conflict Minerals Compliant | Yes |
| Packaging Information | |

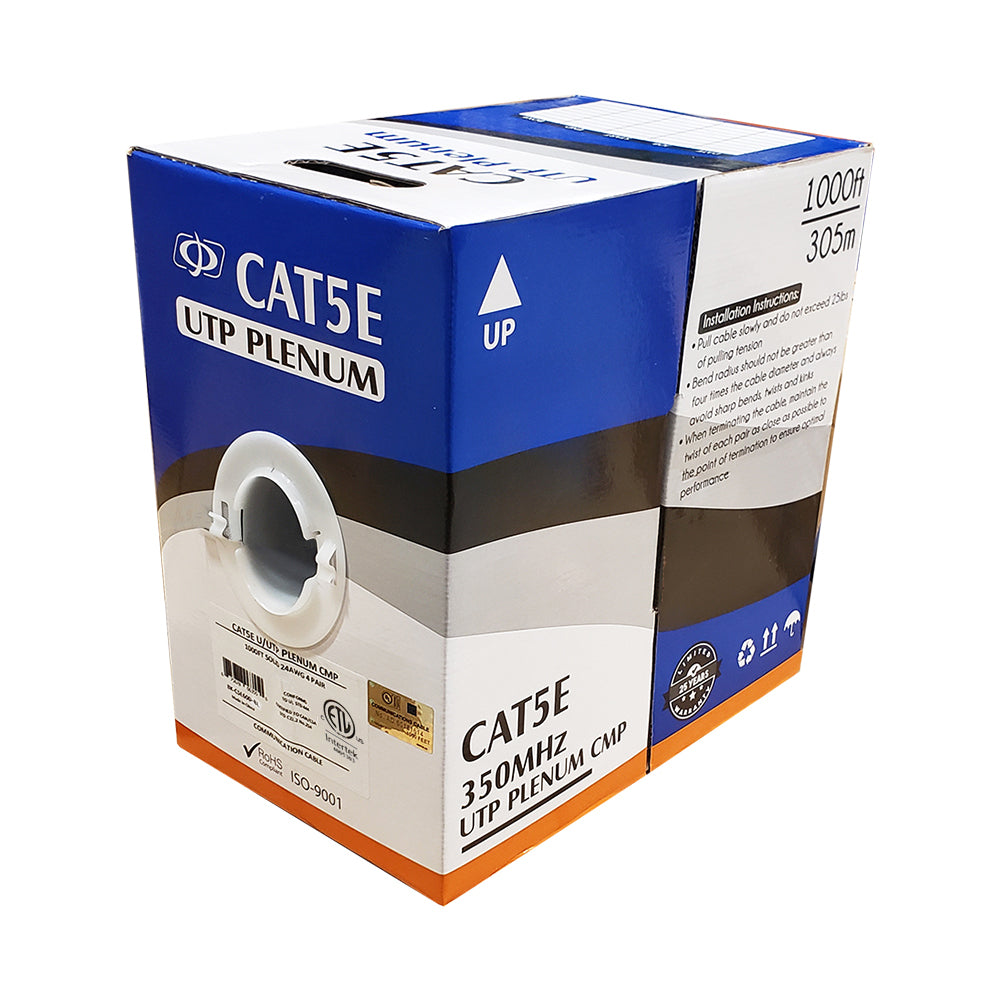

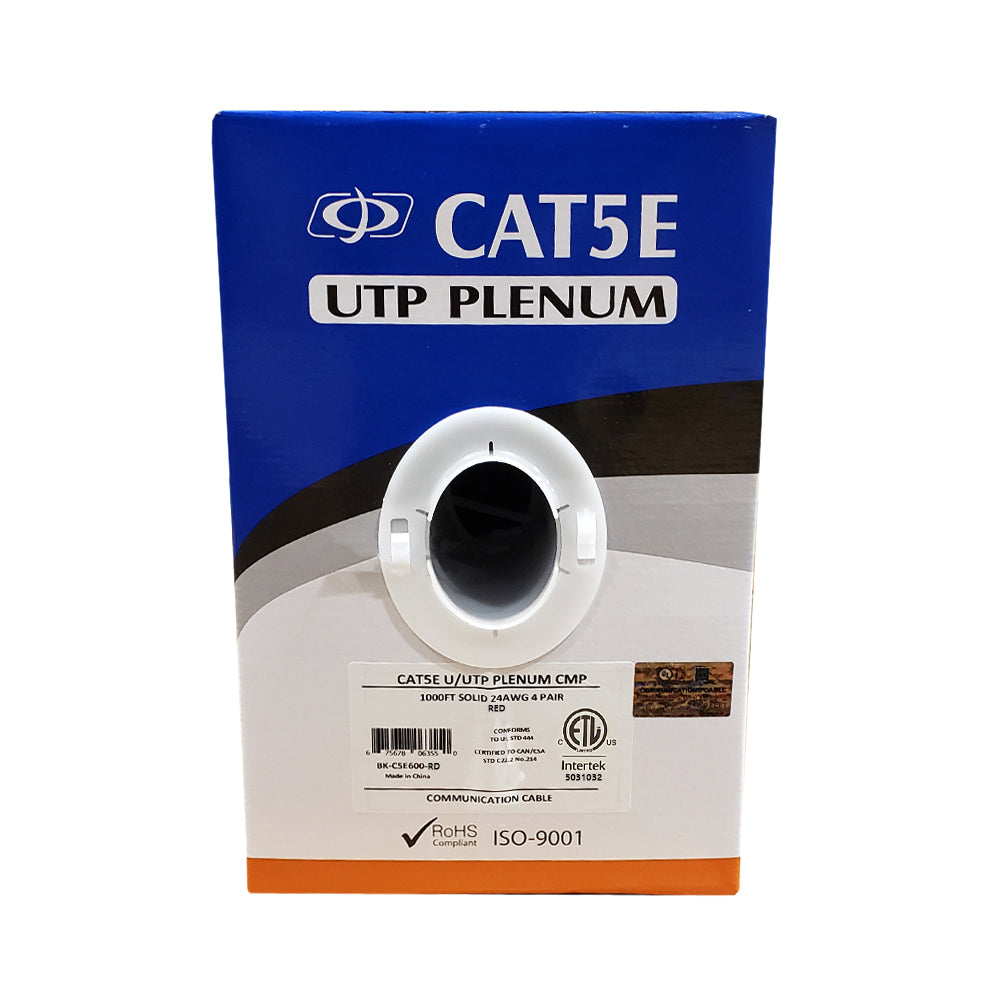

| Package Quantity | 1 Pull Box |
| Product Weight | 29.70 lbs [13.47kg] |
Spec Sheets
Product Weights
| SKU | Options | Weight |

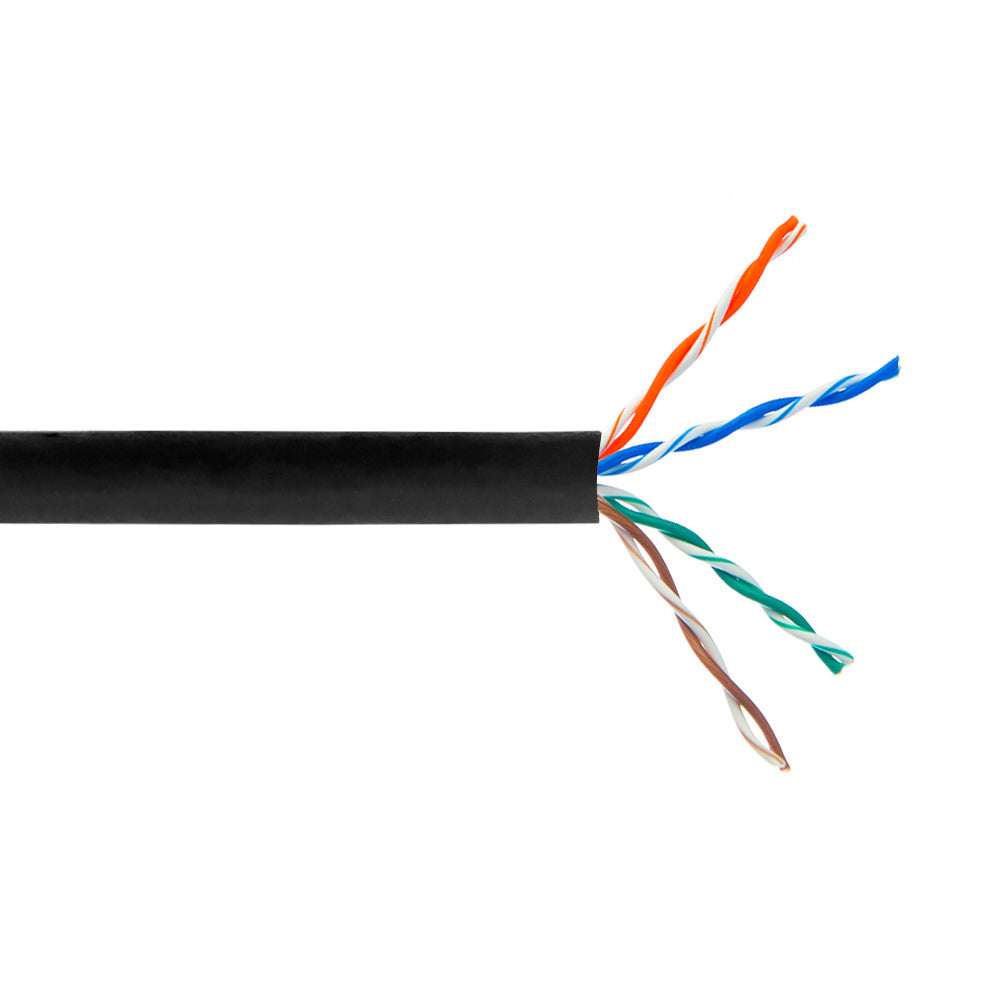

| BK-C5E600-BK | Black | 23.0 lb |

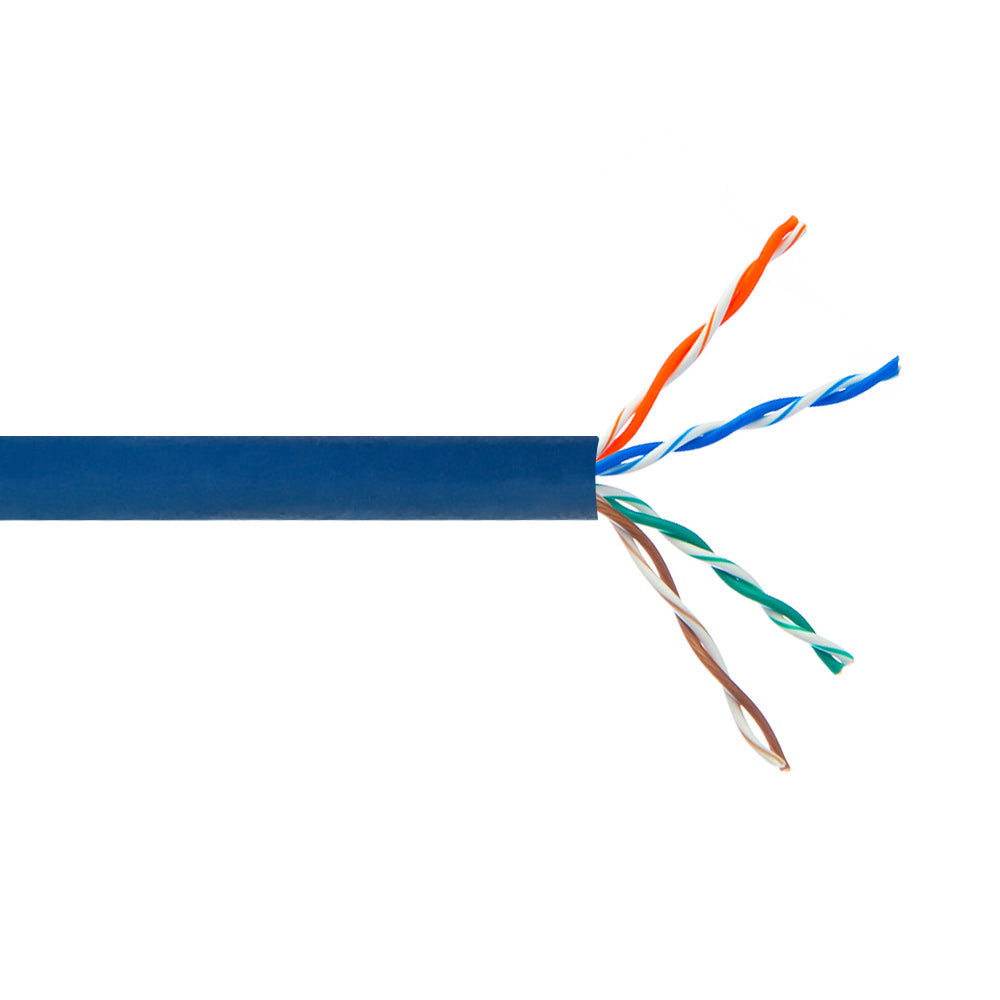

| BK-C5E600-BL | Blue | 23.0 lb |

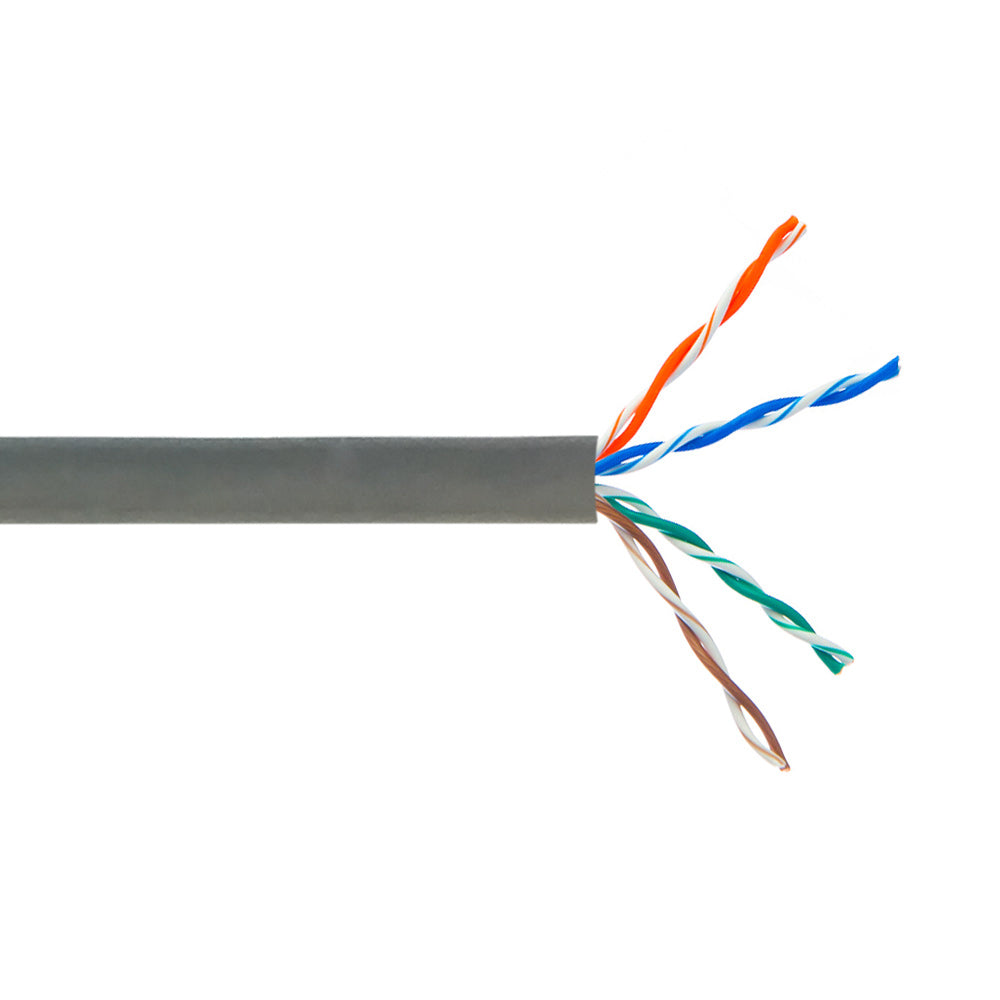

| BK-C5E600-GY | Grey | 23.0 lb |

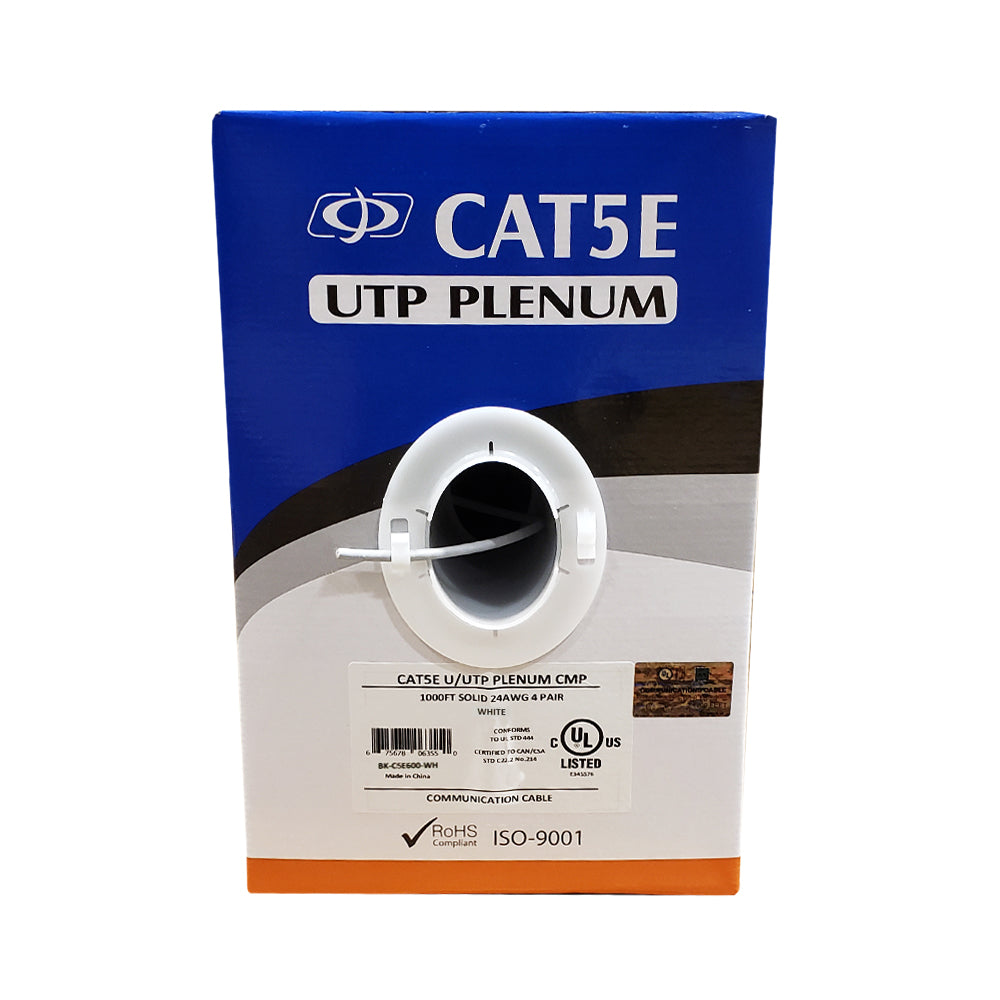

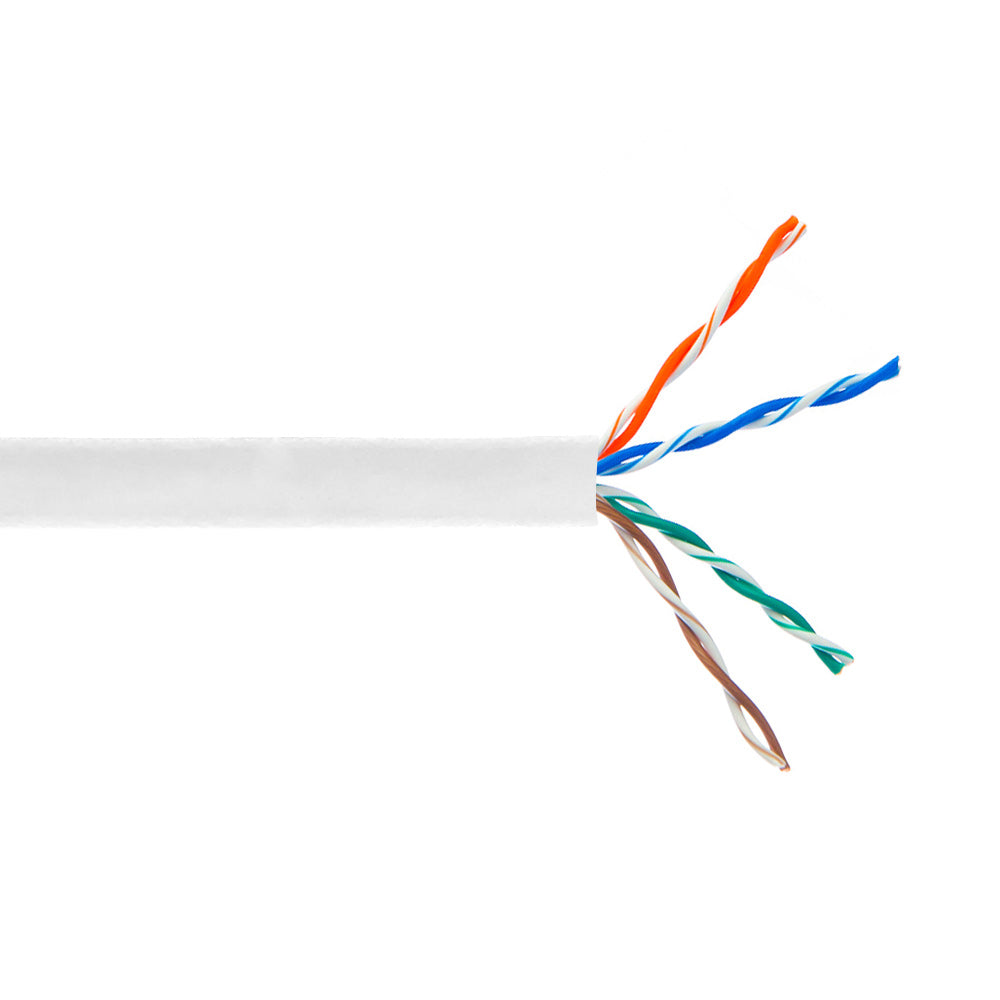

| BK-C5E600-WH | White | 23.0 lb |
