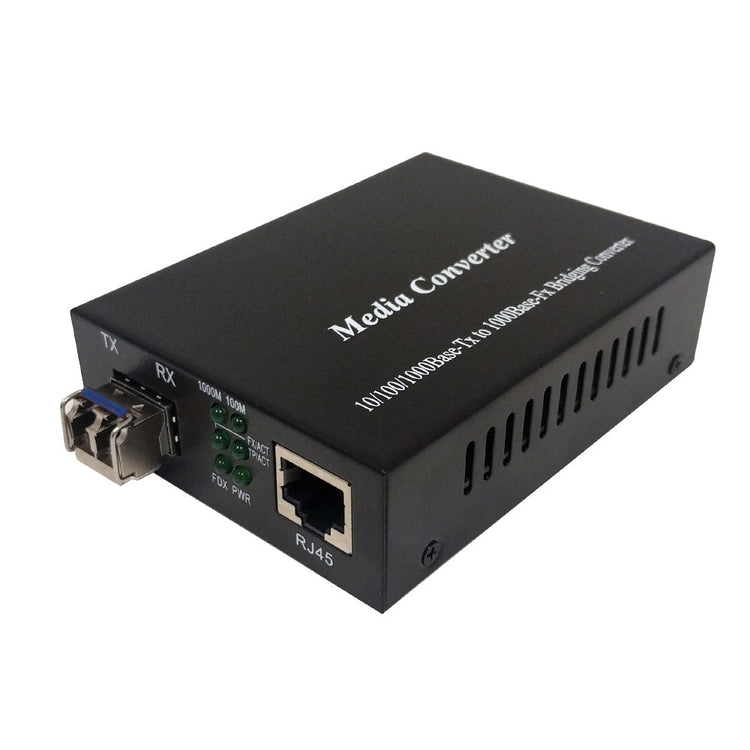

This singlemode fiber optic media converter can extend a 10/100/1000 Mbps Ethernet connection up to 40km over a singlemode LC fiber optic cable. The converter can be used as a standalone unit or in pairs.
Features
Physical Characteristics | |||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Color | Black | ||||||||||||||||||||||||||||||||||||||||||||
Dimensions | 95mm x 71mm x 26mm (L x W x H) | ||||||||||||||||||||||||||||||||||||||||||||
Housing | Metal | ||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | 0°C ~ 45°C | ||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
-10°C ~ 70°C |
||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity | 10% to 90% (non-condensation) | ||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity |
10% to 90% (non-condensation) |
||||||||||||||||||||||||||||||||||||||||||||
Standards | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX |
||||||||||||||||||||||||||||||||||||||||||||
Power | |||||||||||||||||||||||||||||||||||||||||||||
Power Supply | DC 5V 1A |
||||||||||||||||||||||||||||||||||||||||||||
Power consumption |
5W |
||||||||||||||||||||||||||||||||||||||||||||
Connectors | |||||||||||||||||||||||||||||||||||||||||||||
Fiber Connector | SFP 3.3V with LC Connector | ||||||||||||||||||||||||||||||||||||||||||||
Ethernet Connector | RJ45 UTP | ||||||||||||||||||||||||||||||||||||||||||||
Performance | |||||||||||||||||||||||||||||||||||||||||||||
Media Supported | 10Base-T: CAT5e, CAT6 UTP 100Base-TX/FX: CAT5e, CAT6 UTP 1000Base-TX/FX CAT5e, CAT6 UTP Singlemode Fiber (8.3/125um, 9/125um) |
||||||||||||||||||||||||||||||||||||||||||||
Transmission Distance |
Dual-fiber single-mode: 40km Category-5 twisted pair: 100m |
||||||||||||||||||||||||||||||||||||||||||||
Data Forward Rate | 10Mbps, 100Mbps, 1000Mbps | ||||||||||||||||||||||||||||||||||||||||||||
Features | Max 2M Buffer Memory Built in Chip Back Pressure Flow Control for Full Duplex IEEE802.3 X and Half Duplex Automatic Identification of MDI/MDI-X Cross Line High Performance 1.4Gbps Memory Bandwidth |
||||||||||||||||||||||||||||||||||||||||||||
Wavelength |
850nm/1310nm/1550nm |
||||||||||||||||||||||||||||||||||||||||||||
Delay |
<10us |
||||||||||||||||||||||||||||||||||||||||||||
BER |
<10-9 |
||||||||||||||||||||||||||||||||||||||||||||
MTBF |
100,000 hours |
||||||||||||||||||||||||||||||||||||||||||||
LED Status Description | |||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||
Certifications | |||||||||||||||||||||||||||||||||||||||||||||
CE | Yes | ||||||||||||||||||||||||||||||||||||||||||||
FCC | Yes | ||||||||||||||||||||||||||||||||||||||||||||
RoHS | Yes | ||||||||||||||||||||||||||||||||||||||||||||
Packaging Information | |||||||||||||||||||||||||||||||||||||||||||||
Package Quantity | 1 | ||||||||||||||||||||||||||||||||||||||||||||
Product Weight | 0.85 lbs [0.03kg] | ||||||||||||||||||||||||||||||||||||||||||||
Warranty Information | |||||||||||||||||||||||||||||||||||||||||||||
Warranty | 1 Year |
