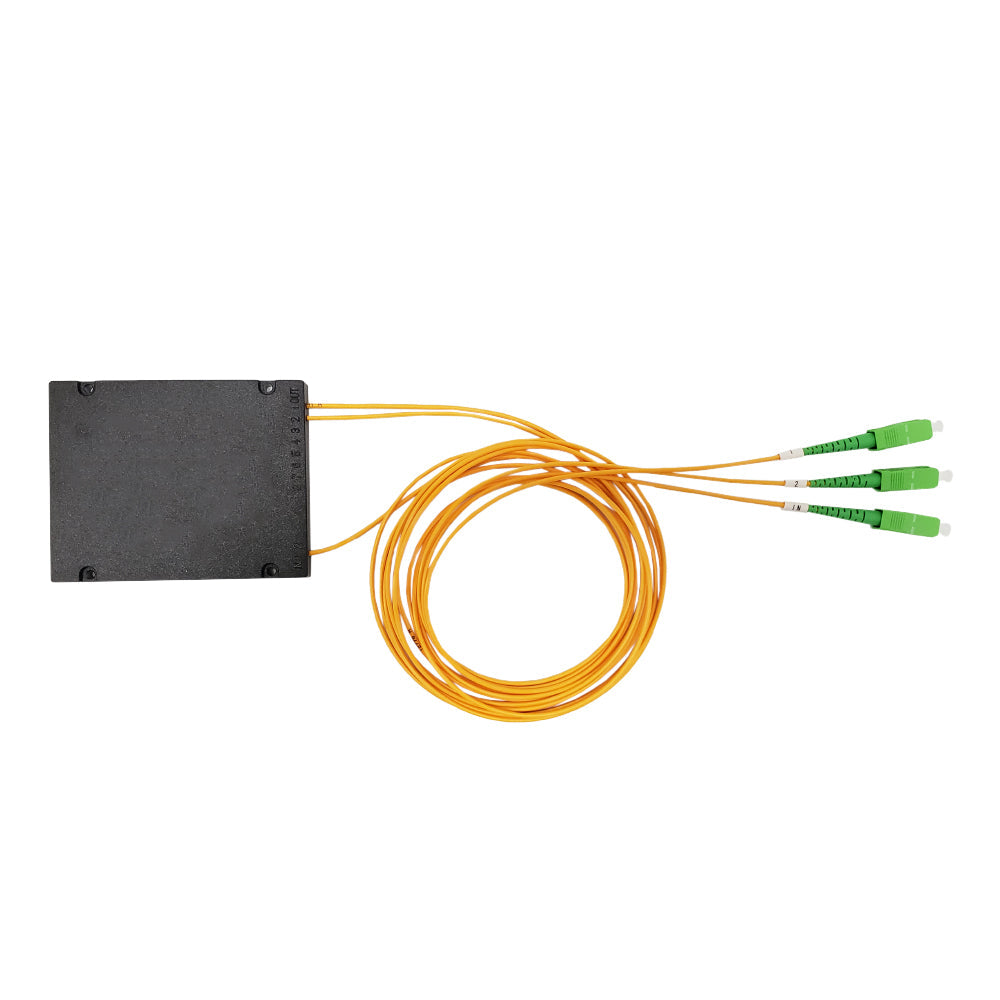

1.5m PLC Splitter Singlemode (G657A2) - ABS-Module - SC/APC - 2mm

Fiber Optic PLC SplittersSKU: FO-PLCA-1X2-SCA2

Configuration: 1x2
Price:
Sale price$10.10 USD
Stock:
In stock

Description

This PLC splitter is used to divide a light beam into multiple light beams for distribution to multiple terminals.

Features:

  • Low insertion loss
  • Low PDL
  • Compact Design
  • Good channel-to-channel uniformity
  • Wide operating wavelength from 1260nm to 1650nm
  • High reliability and stability
Physical Characteristics
Length 1.5m
Operating Temperature -20℃ ~ +80℃
Storage Temperature -40℃ ~ +80℃
Operating Wavelength 1260 ~ 1650nm
Fiber Types Singlemode G.657A2 2mm ABS-Module
Insertion Loss (P/S Grade) 3.8/4.0dB (1x2)
7.2/7.4dB (1x4)
10.3/10.7dB (1x8)
13.5/13.7dB (1x16)
16.5/16.9dB (1x32)
20.5/21.0dB (1x64)
Return Loss ≥50dB
Directivity ≥55dB
Wavelength Dependent Loss ≥0.5dB (1x2, 1x4, 1x8, 1x16)
≥1.0dB (1x32, 1x64)
Maximum Power Handling (mW) 500
Connectors
Connector A SC-APC Male
Packaging Information
Package Quantity 1
Product Weights FO-PLCA-1X2-SCA2 - 0.20lbs
FO-PLCA-1X4-SCA2 - 0.28lbs
FO-PLCA-1X8-SCA2 - 0.45lbs
FO-PLCA-1X16-SCA2 - 0.52lbs
FO-PLCA-1X32-SCA2 - 0.90lbs
FO-PLCA-1X64-SCA2 - 1.7lbs

Product Weight

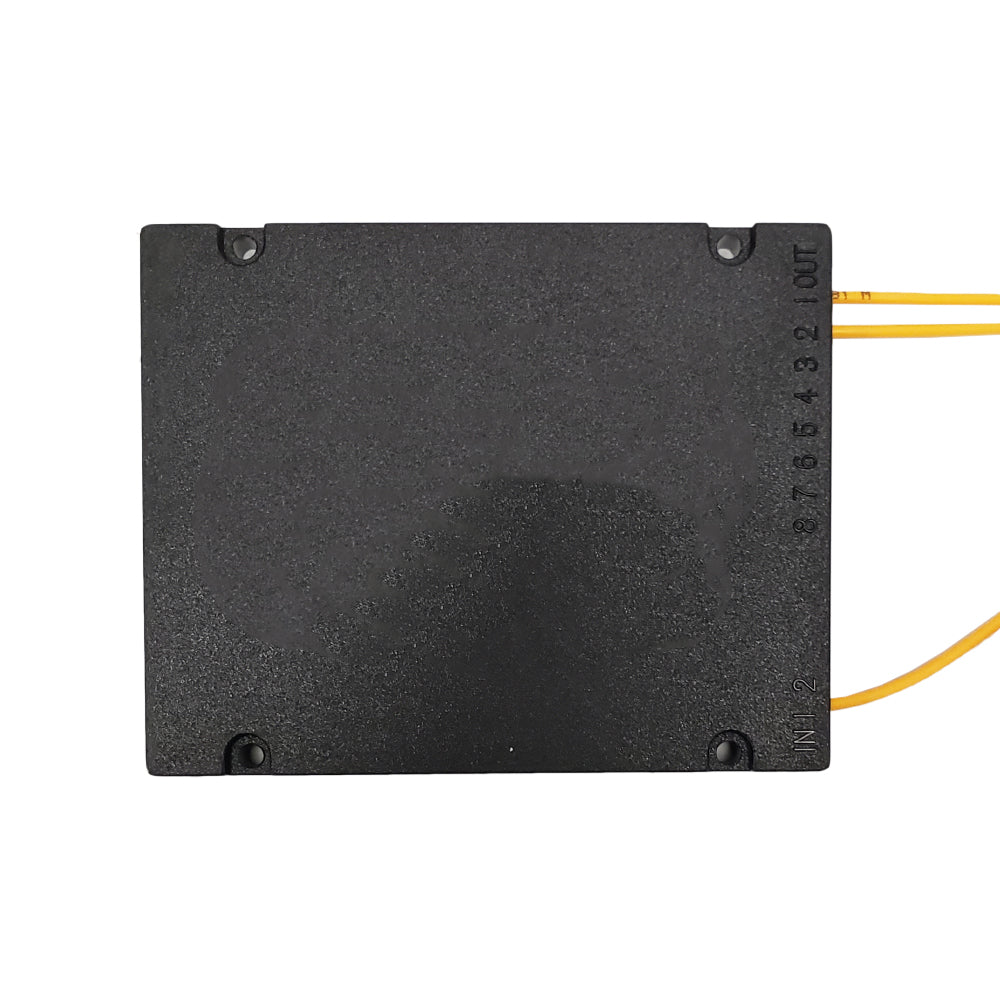

1x2
FO-PLCA-1X2-SCA2
0.4 lb

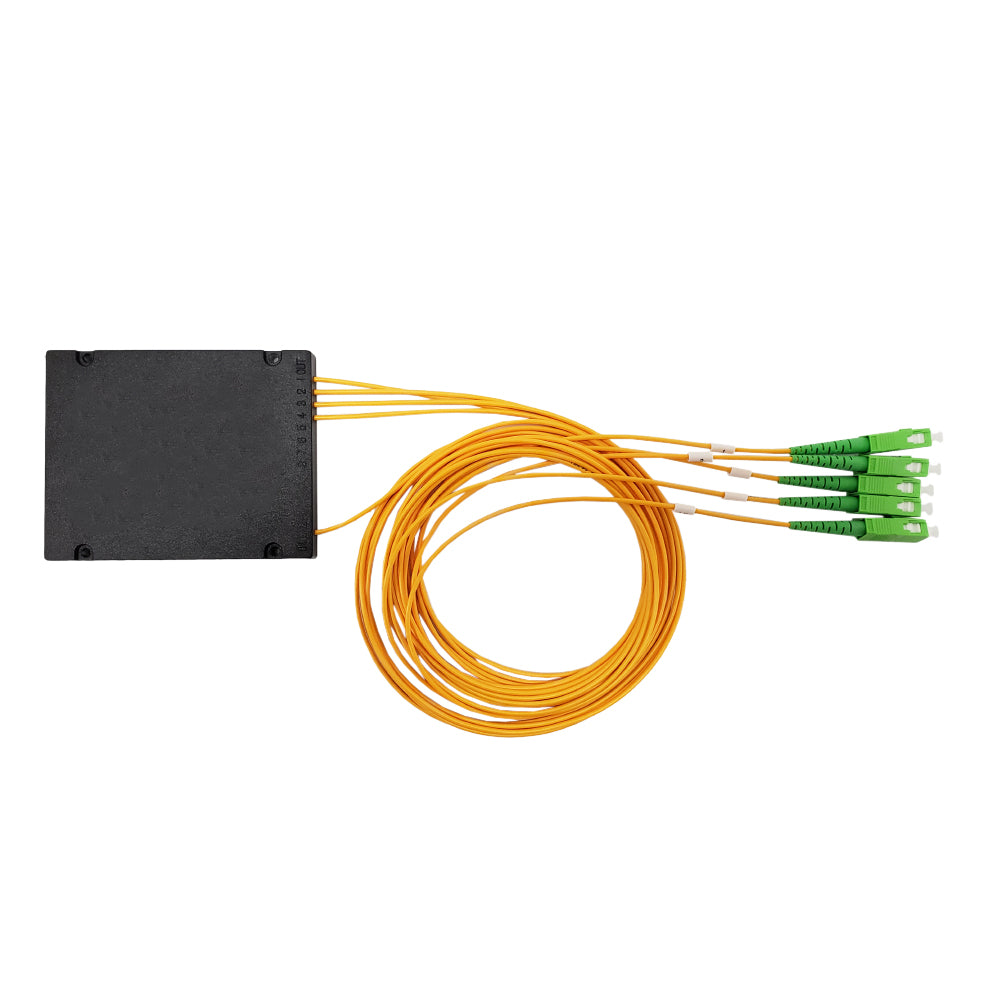

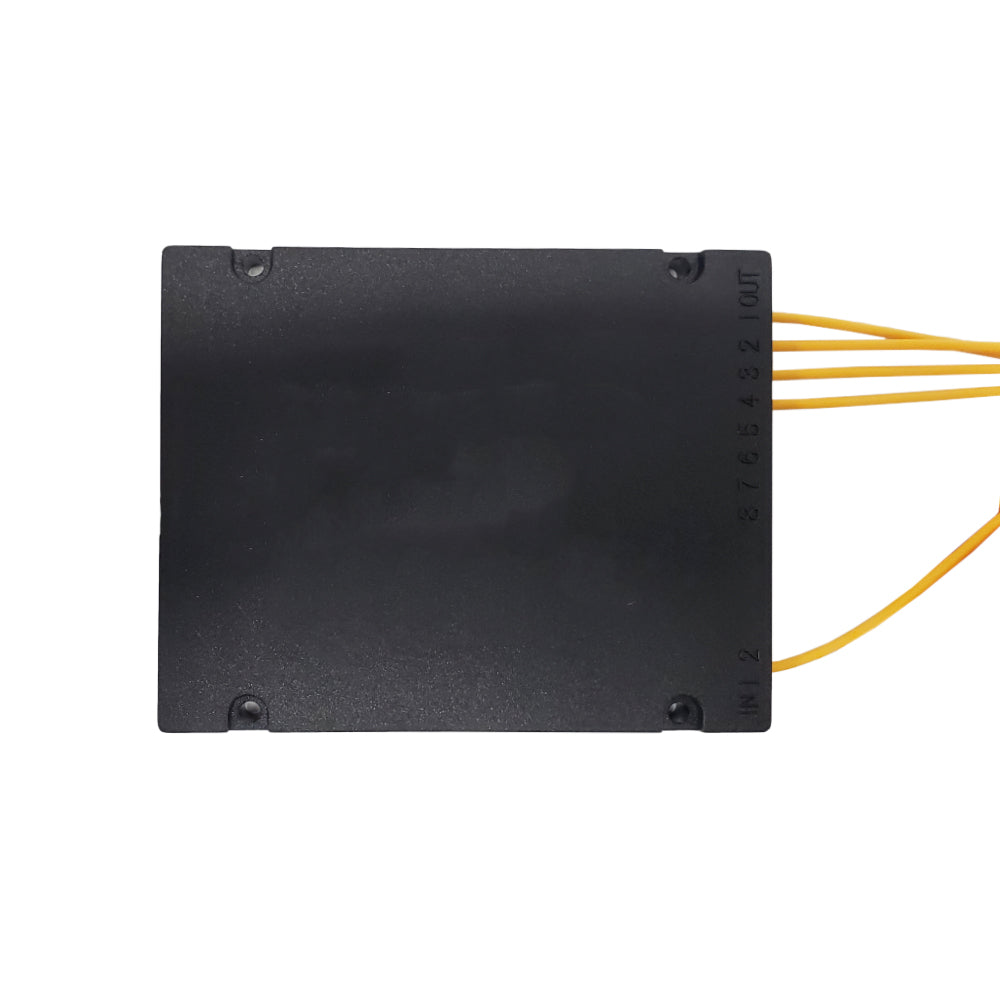

1x4
FO-PLCA-1X4-SCA2
0.43 lb

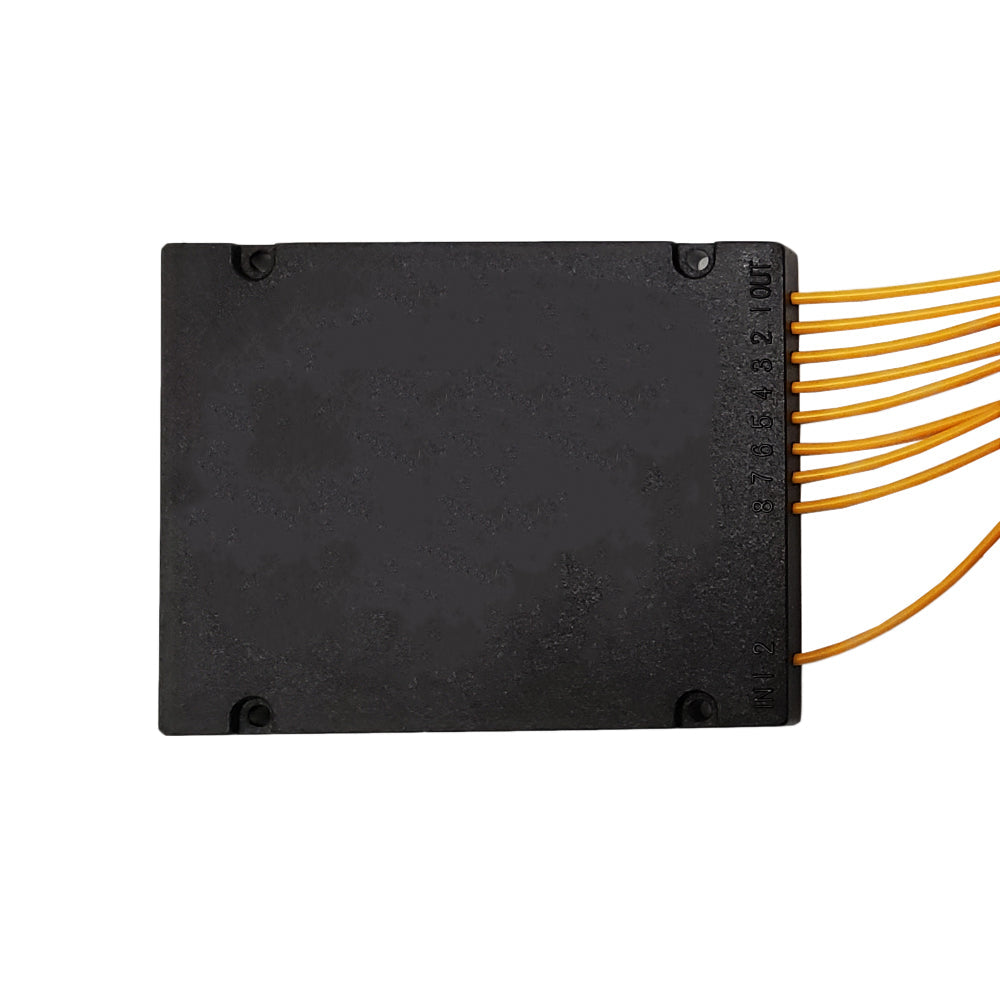

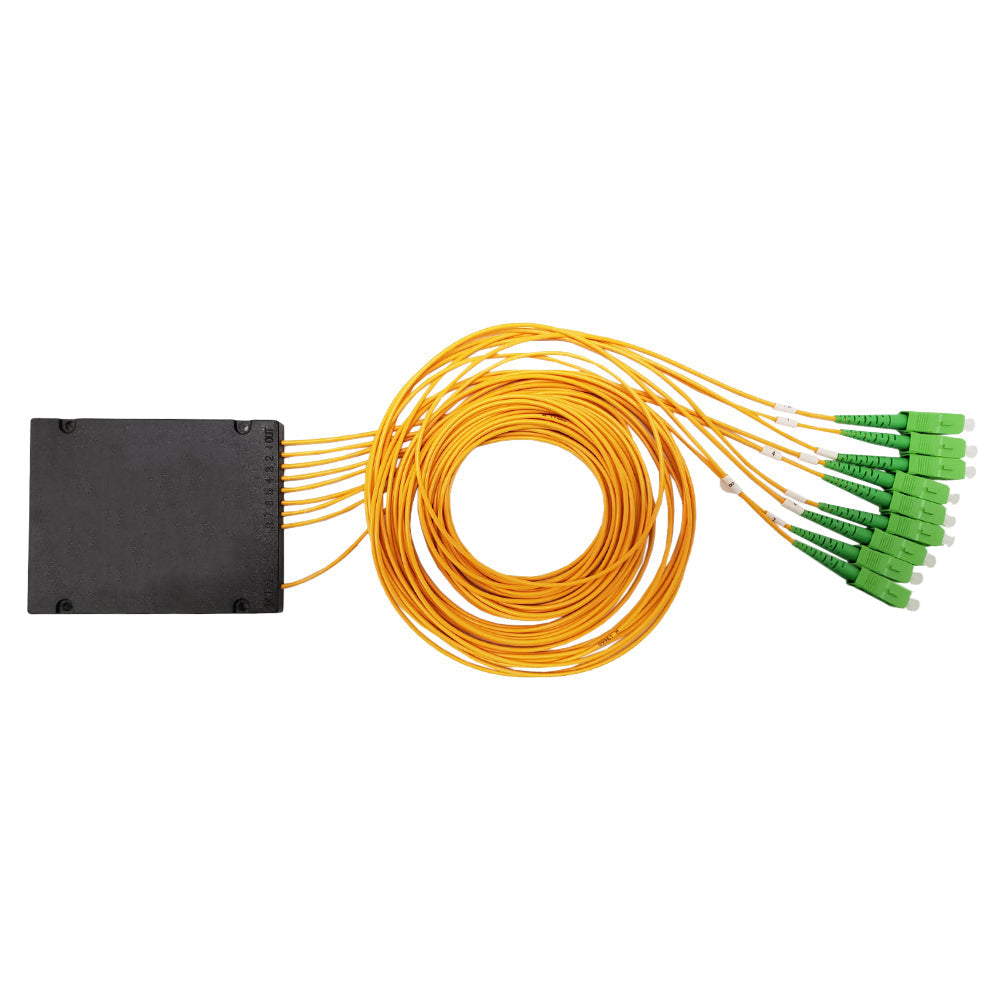

1x8
FO-PLCA-1X8-SCA2
0.54 lb

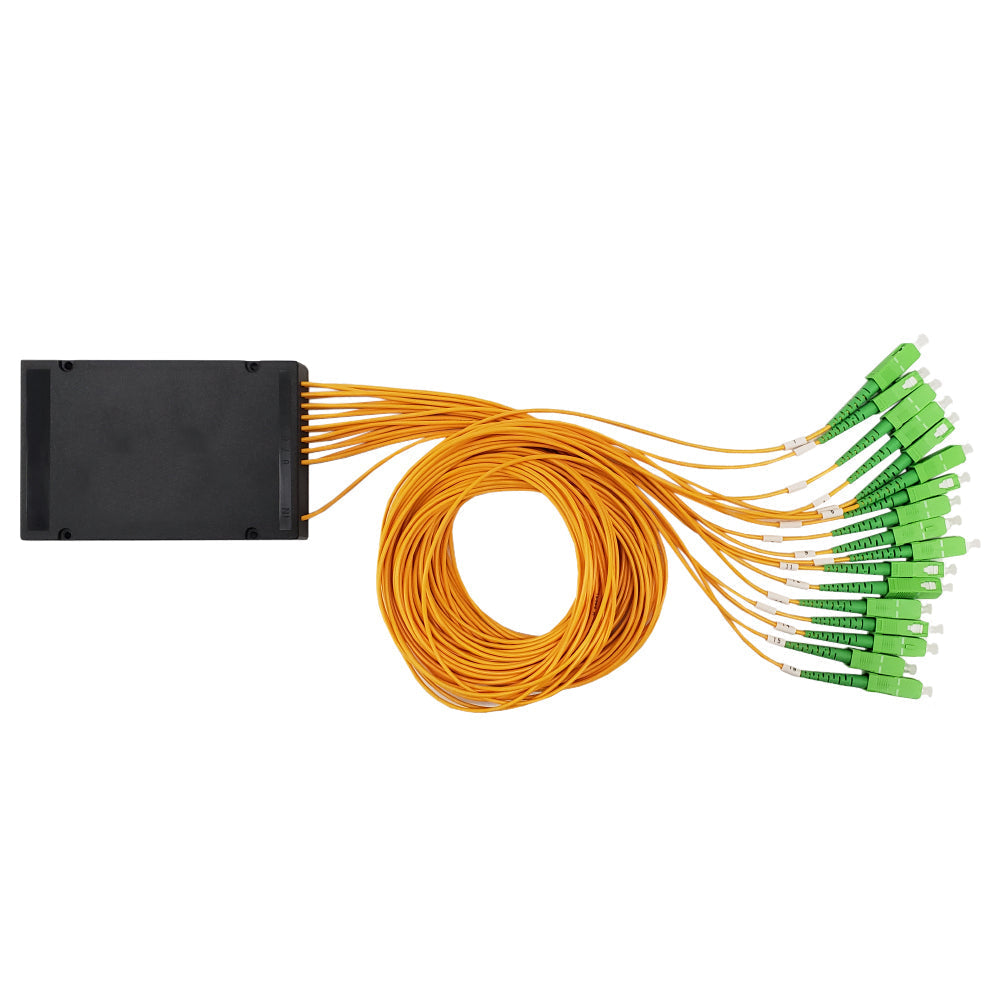

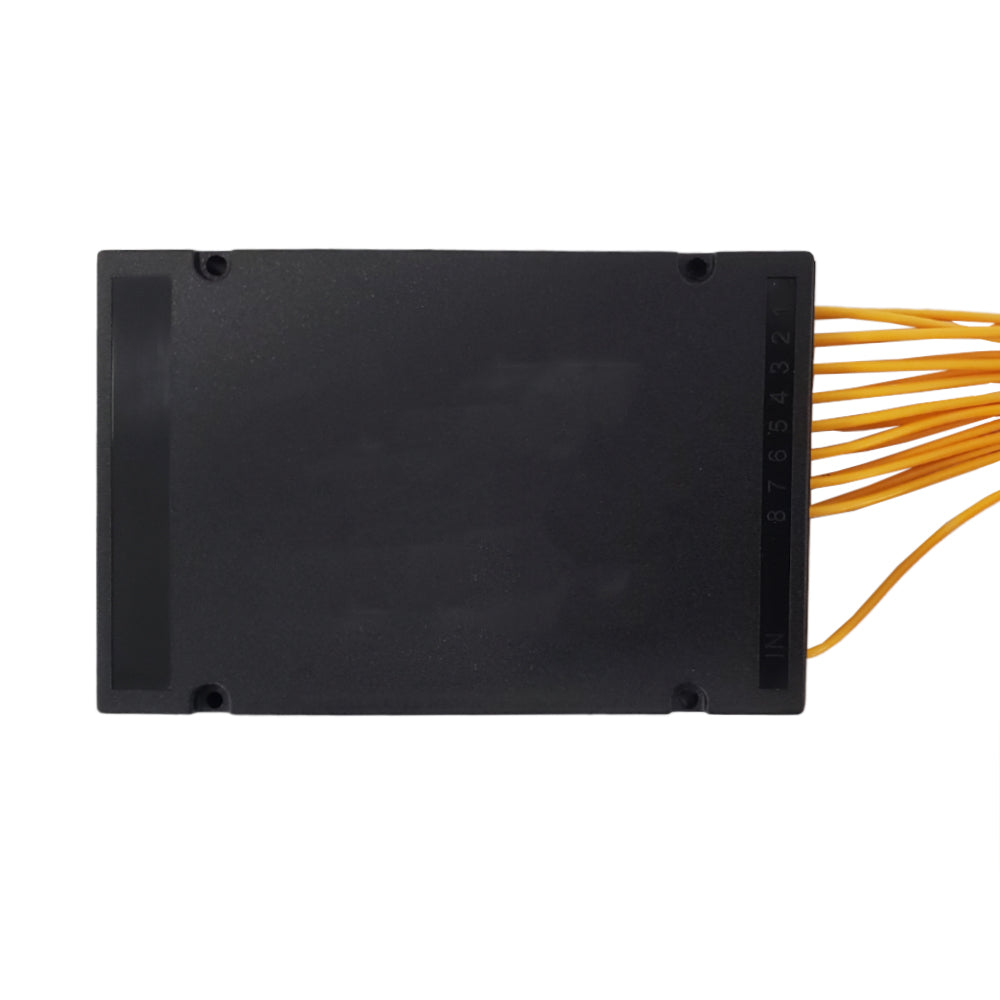

1x16
FO-PLCA-1X16-SCA2
0.75 lb

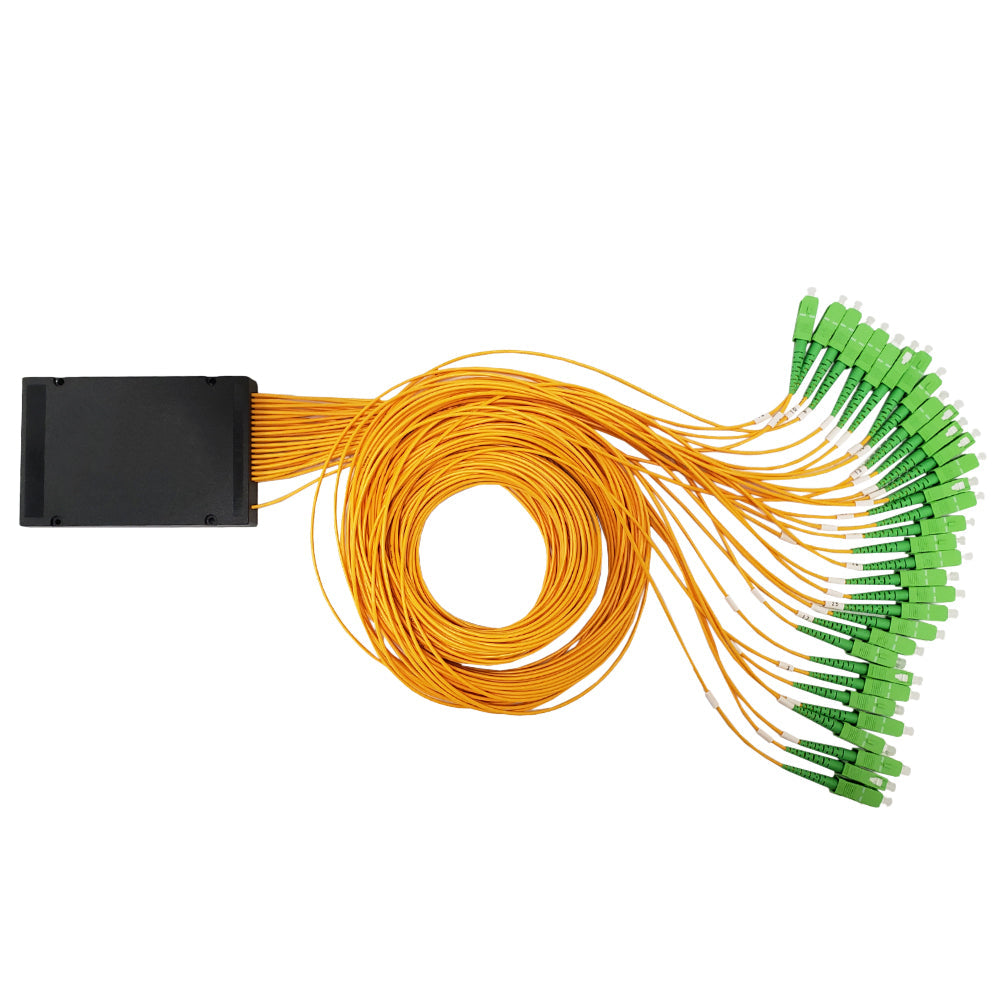

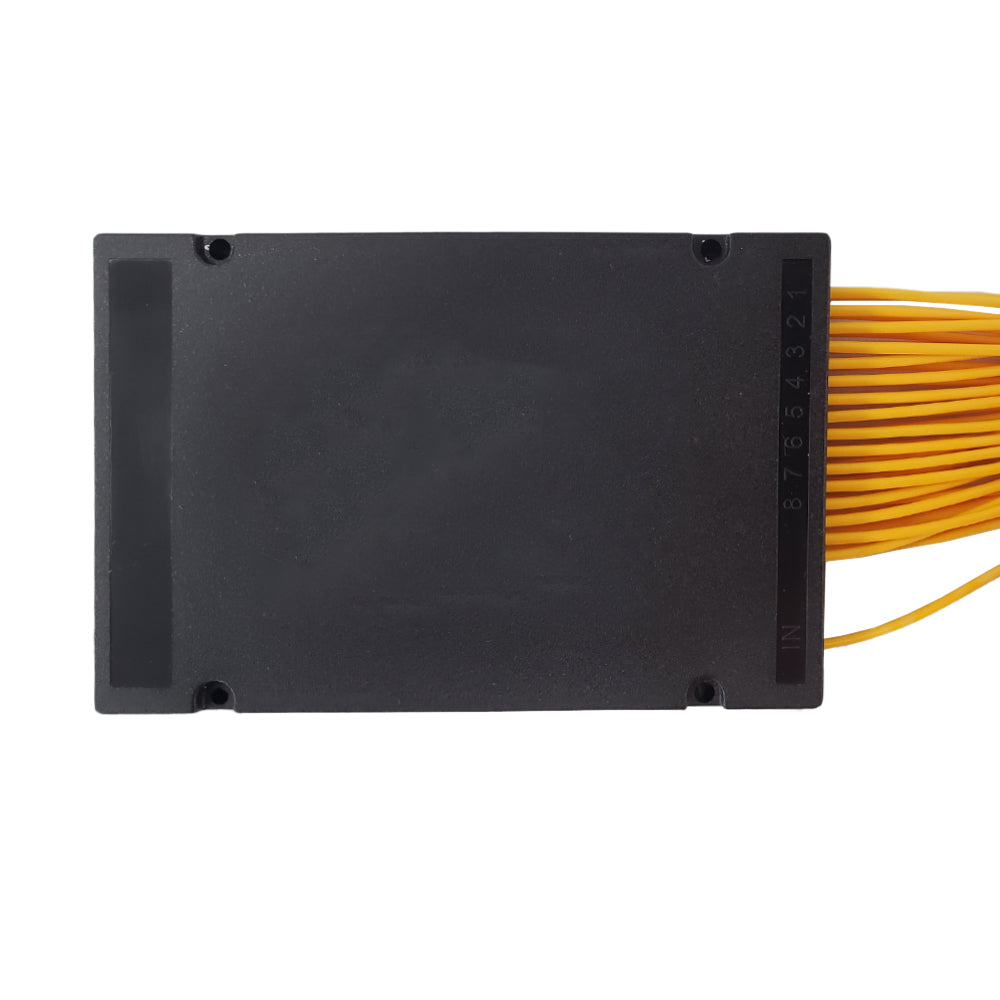

1x32
FO-PLCA-1X32-SCA2
1.17 lb

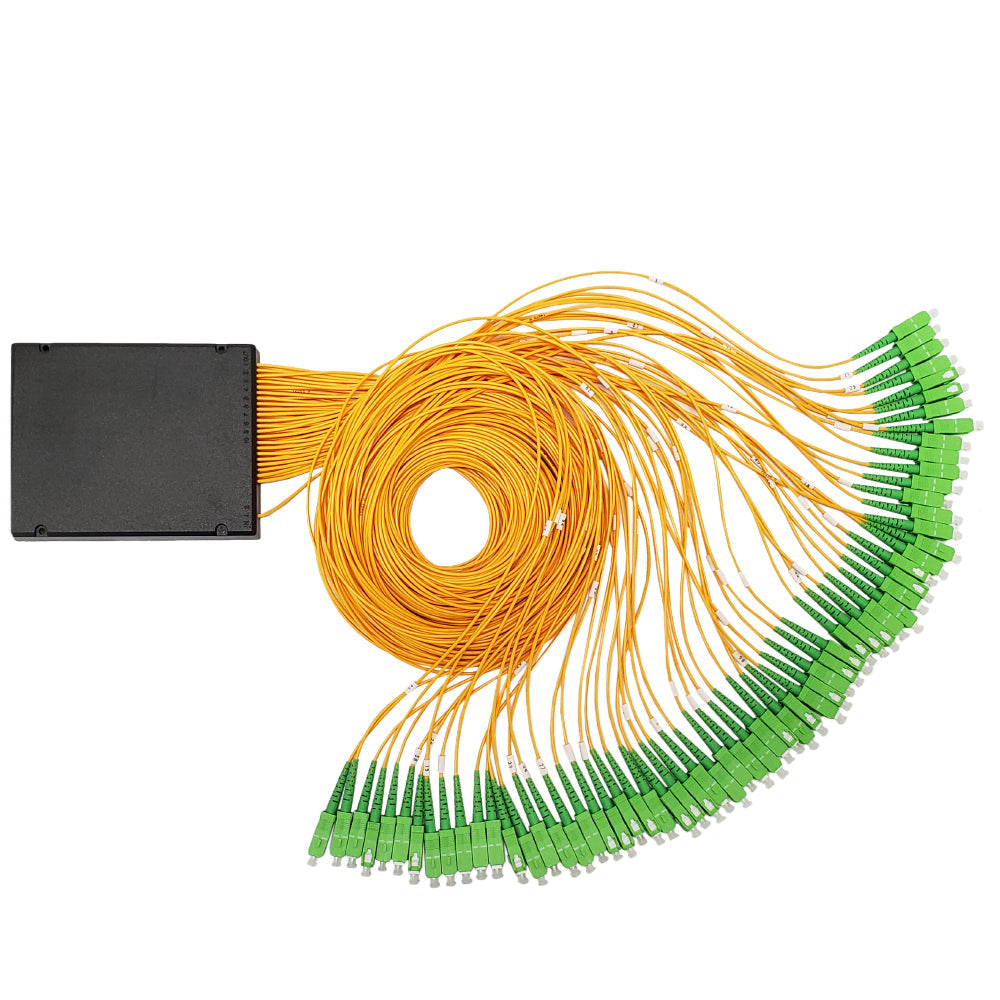

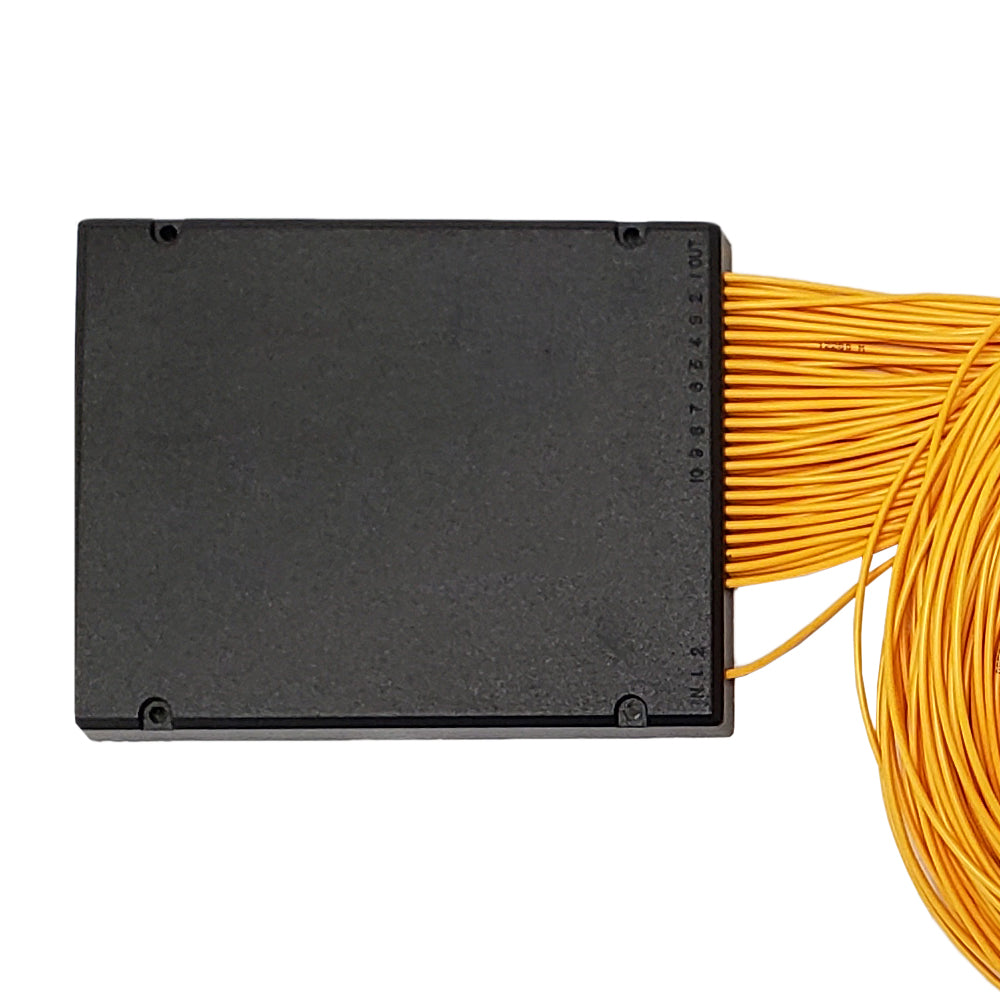

1x64
FO-PLCA-1X64-SCA2
1.75 lb
