Description

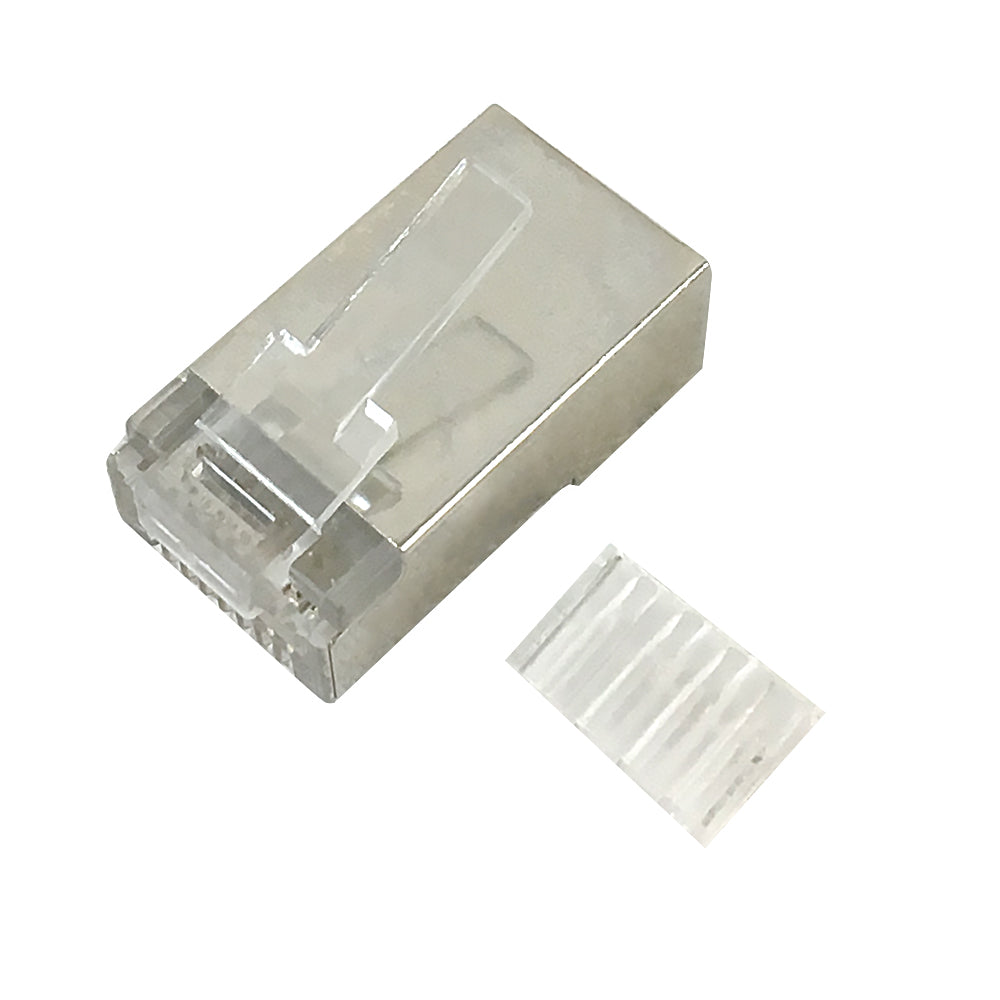

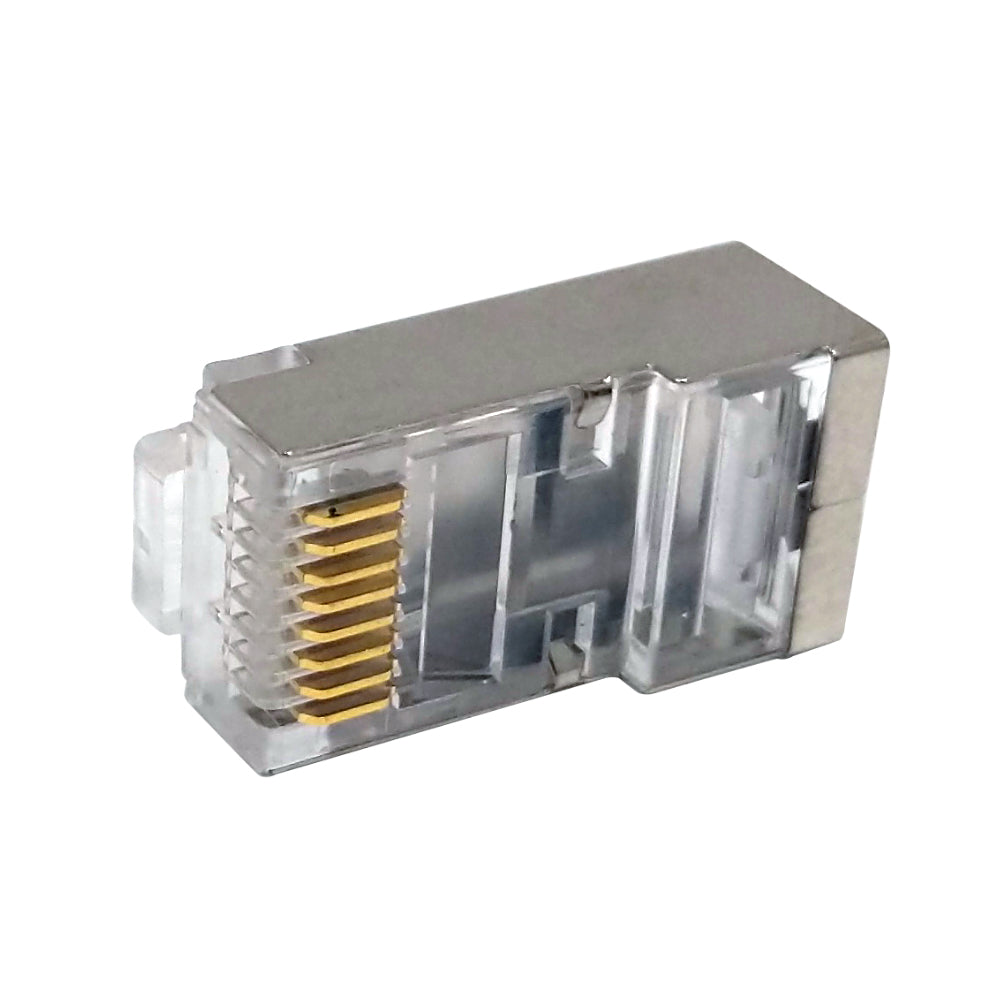

This modular RJ45 Cat6a connector is a 8 position, 8 conductor plug. It's typically terminated on 8 conductor solid or stranded round cable.
| Physical Characteristics | ||
|---|---|---|
| Color | Transparent, Nickel | |
| Material | Polycarbonate | |
| Contacts | Gold | |
| Shielded | Yes | |
| Cable Type | Round | |
| Number of Contacts | 8 | |
| Number of Positions | 8 | |
| Connector(s) | ||
| RJ45 Cat 6a (8P8C) | Male, 23 - 26 AWG Round Stranded Cable | |
| Associated Products | ||
| CN-FOIL-TAPE | 50m Roll of Adhesive Mylar Foil Tape (6mm Width) | |
| Environmental | ||
| RoHS | Yes | |
| Packaging Information | ||
| Package Quantity | 1 Pack of 50 Connectors | |
| Product Weight | 0.20 lbs | |
