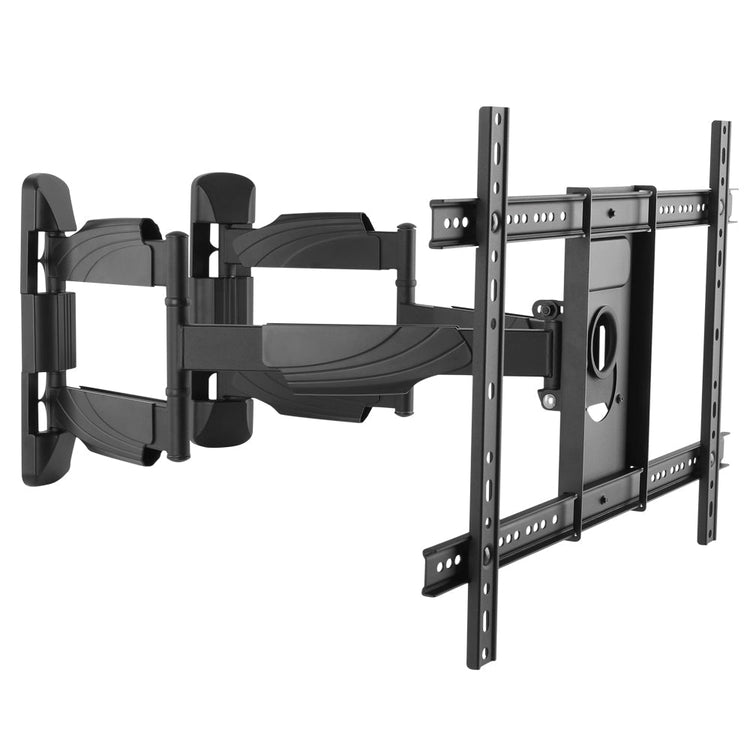

This swivel tilting pan and extend corner wall mount bracket is designed to hold most 37 inch to 70 inch flat screen displays with a maximum VESA hole pattern of 600 x 400. It offers a up to a -8° to +5° tilt and a 90° swivel. It can be used in both residential and commercial environments.
 |
Full Motion Makes any Seat, the Best SeatThe tilt and swivel motion of the mount allows you to position your TV to the best viewing angle, and provide the maximum viewing experience. This mount can be swivel to the left or right direction at 90° - and tilted at a range of -8° to +5°. Level Adjustment is Easy on the EyesThe built-in level adjustment ensures perfect positioning for a pleasurable viewing experience. It offers 5° clockwise and counter-clockwise turning to ensure a perfect level. Built-in Cable ManagementThe pre-assembled arm comes with integrated cable management and decorative covers to provide an elegant and tidy look. This allows easy maintenance of cables and accessories.
|
| Physical Characteristics | |
|---|---|
| Mounting Style | Full-Motion TV Wall Mount |
| Color | Powder Coated Black |
| Material | Steel, Plastic |
| Pipe Size | 1.6 x 0.79 x 0.047 inches [40 x 20 x 1.2mm] |
| Dimensions | 24.4 x 25.3 x 16.5 inches [620 x 643 x 418mm] |
| Mounting Pattern | VESA 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400 |
| Screen Size | 37 - 70 inches [94 - 177.8 cm] |
| Weight Capacity | 99 lbs [45kg] |
| Tilt | -8° ~ +5° |
| Swivel | -90° ~ +90° |
| Screen Level | -5° ~ +5° |
| Cable Management | Yes |
| Wall Plate Type | Fixed Wall Plate |
| Installation | Solid Wall or Double Stud [406mm / 450mm] |
| Panel Type | Detachable Panel |
| Approvals | |
| RoHS | Yes |
| Reach | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 29.5 lbs [13.4kg] |
5-YEAR LIMITED LIFETIME WARRANTY
Infinite Cables Inc. offers a 5-year warranty on all TV mounts to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
